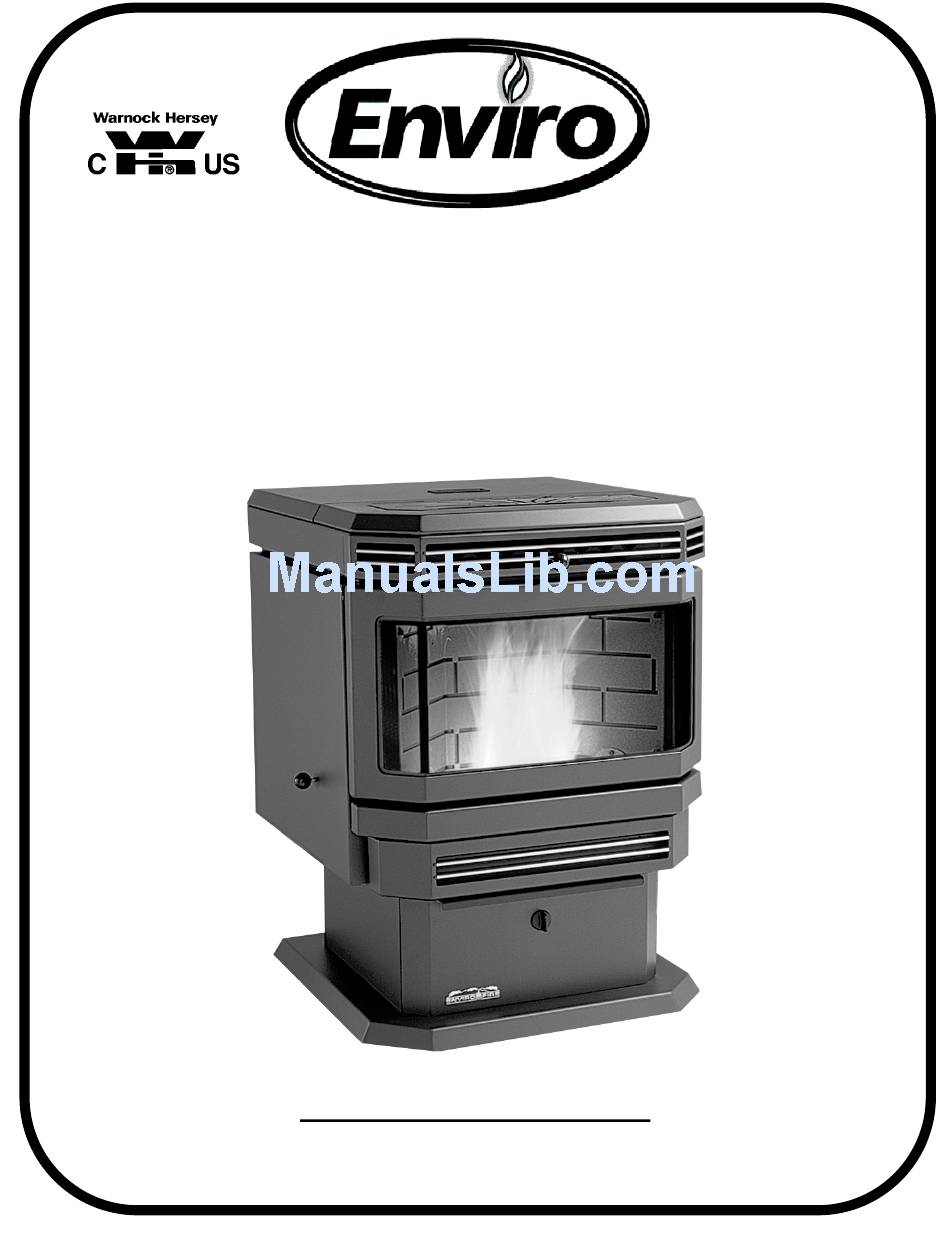

- Page 1 PELLET STOVE EF-III BAY i OWNERS TECHNICAL MANUAL MODELS FS, FPI and BIH SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD ROAD VICTORIA, BRITISH COLUMBIA V8M-2A3...
-
Page 2: Table Of Contents
ENVIROFIRE INSTALLATION MANUAL TABLE OF CONTENTS INTRODUCTION Important Safety Data............3 Pellet Quality ................ 4 Warnings and Recommendations......... 5 Automatic Safety Features ........... 5 OPERATION How to Start Your Pellet Appliance........6 Turning Your Pellet Appliance Off ........6 Slider/Damper............... 7 SPECIFICATIONS Areas for Routine Maintenance ......... -
Page 3: Important Safety Data
IMPORTANT SAFETY DATA Please read this entire manual before installation and use of this pellet fuel burning room heater. Failure to follow these instructions could result in property damage, bodily injury or even death. CAUTION: DO NOT CONNECT OT ANY AIR DISTRIBUTION DUCT OR SYSTEM; DO NOT BURN GARBAGE OR FLAMABLE FLUIDS SUCH AS GASOLINE, NAPTHA OR ENGINE OIL;... -
Page 4: Pellet Quality
PELLET QUALITY IS IMPORTANT, PLEASE READ THE FOLLOWING PAGE Your pellet stove has been designed to burn wood pellets only. Since there are many manufacturers of wood pellets it is important to select pellets that are free of dirt or any impurities. The Pellet Fuel Industries (P.F.I.) has established standards for wood pellet manufactures. -
Page 5: Warnings And Recommendations
WARNINGS AND RECOMMENDATIONS Do not abuse the glass by striking or slamming the door shut. Do not attempt to operate the stove with broken glass. Do not attempt to open the door and clean the glass while the unit is in operation. If you must clean the glass, use a soft cotton cloth and mild window cleaner. -
Page 6: How To Start Your Pellet Appliance
HOW TO START AND OPERATE YOUR PELLET APPLIANCE Check and fill hopper with pellets. Switch on power by pushing the start up switch once only. Turn the Dial A Fire knob to the 12 o’clock position. (Lower grade pellets may need a higher setting CONVECTION on the feed rate). -
Page 7: Operation
SLIDER/DAMPER INSTALLATION /OPERATION INSTRUCTIONS This is used to regulate the airflow through the pellet stove. INSTALLATION Remove the slider rod (short rod with knob and nuts) and the two nuts from their package and open the left side panel. Remove the knob and outer nut from the knob. Push the rod through the hole in the slider. -
Page 8: Specifications Areas For Routine Maintenance
AREAS FOR ROUTINE INSPECTION The following should be inspected periodically to ensure that the appliance is operating at its optimum and giving you excellent heat value: 2-3 DAYS/WEEKLY SEASONALLY or 2 TONS OF FUEL Burn Pot and Liner Exhaust Vent and Fresh Air Intake Tube Ash Pan Blower Mechanisms Inside Firebox... - Page 9 DOOR GLASS (It is recommended that your dealer replace the glass if broken.) The door glass is made of 5 mm thick, high temperature PYROCERAMIC The center panel is 229 mm x 330 mm. To replace the glass, unscrew and remove the four glass retainers. Remove the glass and any broken pieces. High temperature fiberglass tape should be used around the glass.
-
Page 10: Electrical Component Functions
ELECTRICAL COMPONENT FUNCTIONS The following is a list of electrical components and their functions on the ENVIROFIRE EF-IIIi Bay pellet stove. CONVECTION FAN CONTROLLER This controller is responsible for varying the speed of the convection blower. The stove does have a fan control over-ride. - Page 11 160°F (71°C) TEMPERATURE SENSOR When this sensor (located on the left side firewall) reaches 160°F (71°C), the convection blower will go to high, cooling the unit. 140°F (60°C) N/O TEMPERATURE SENSOR (SHUT-DOWN SENSOR) This sensor (mounted on the exhaust blower housing) has two functions: Should the fire go out, this sensor will shut the stove off when the exhaust temperature drops below 140°F (60°C).
-
Page 12: Deciding Where To Locate Your Pellet Appliance
DECIDING WHERE TO LOCATE YOUR PELLET APPLIANCE Check clearances to combustibles. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. Do not install the stove in a bedroom. You can vent the stove through an exterior wall behind the unit or connect it to an existing masonry or metal chimney (must be lined if the chimney is over 6”... -
Page 13: Removing Your New Stove From It's Pallet
REMOVING YOUR NEW STOVE FROM IT’S PALLET To remove your new stove from its pallet, open the left and right side panels. There are two wood screws that are holding the bottom of the stove to the pallet. Remove the screws. Close the side panels. See PAGE 18 how to install the pedestal. -
Page 14: Masonry Fireplace Insert Installation
MASONRY FIREPLACE INSERT INSTALLATION, MODEL FPI The Fireplace Insert model includes surround face plates and a pedestal. When installing this unit, ensure that the pedestal is removed from its box and installed on the bottom of the unit. (Surround assembly instructions are in this manual). CLEARANCE TO COMBUSTIBLES: Side wall..........8”... -
Page 15: Assembling The Face Plate For The Fpi & Bih Models
ASSEMBLING THE FACE PLATE FOR THE FPI AND BIH MODELS To attach the pedestal, place the unit on its back, making sure not to damage the wiring, then bolt the pedestal onto the unit. Back off the screws on the base, install the pedestal over the screws. -
Page 16: Model Bih Recommended Framing
RECOMMENDED FRAMING FOR BUILT IN HEATER When installing model BIH it is recommended that you use the dimensions shown in the diagram below. These type of clearances will make it easy and readily accessible for service. BUILT IN HEATER CLEARANCES TO COMBUSTIBLES This unit includes a 3”... -
Page 17: Clearances And Alcove Clearances
FREESTANDING INSTALLATION, MODELS FS CLEARANCES TO COMBUSTIBLES (FREESTANDING) - Side wall to unit A- 6 INCHES (150 mm) - Back wall to unit B- 1 INCH (25 mm) - Corner to unit C- 1 INCH (25 mm) - Mantle (Hearth Mount) 8 INCHES ( Combustible flooring underneath the unit and extending 6 INCHES (150 mm) to the sides and front must be protected by a non combustible material. -
Page 18: Model Fs (Freestanding) Installation
MODEL FS (FREESTANDING) INSTALLATION PEDESTAL INSTALLATION Model FS comes with a pedestal that has to be attached prior to installation: Remove the pedestal from the box Remove the ENVIROFIRE heater form the box. Place the unit on its back, making sure not to damage the wiring. -
Page 19: Horizontal Exhaust Through The Wall
HORIZONTAL EXHAUST THROUGH THE WALL 1. NOTE: Use only listed type “PL” or “L” pellet venting products. Failure to use listed components may cause damage or personal injury or death. 2. Choose a location for your stove that meets the requirements stated in this manual and allows installation with the least amount of interference to house framing, plumbing, wiring, etc. - Page 20 THROUGH WALL INSTALLATION 1”...
-
Page 21: Freestanding Inside Vertical Installation
FREESTANDING INSIDE VERTICAL INSTALLATION Choose a stove location that is ideal. See the section Deciding Where to Locate Your Pellet Appliance. Place a non-combustible hearth pad where necessary. Place the unit on the hearth pad and space it in a manner so when the pellet vent is installed vertically, it will be 3”... -
Page 22: Freestanding Outside Vertical Pipe Installation
FREESTANDING OUTSIDE VERTICAL INSTALLATION To accomplish the above titled installation, follow steps 1 through 8 in the previous section and then finish it by performing the following. Install a tee with clean out on the outside of the house. Install PL vent upward from the tee. Make sure that you install support brackets to keep the vent straight and secure. -
Page 23: Mobile Home Installation
MOBILE HOME INSTALLATION Secure the heater to the floor using the two bolt holes supplied in the pedestal. CAUTION: THE STUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED. Ensure the unit is electrically grounded to the chassis of your home (permanently). Do not install in a room people sleep in. -
Page 24: Troubleshooting
TROUBLESHOOTING DO NOT: Hold the start-up switch down, this is a momentary contact switch and can be damaged if held down too long. Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. - Page 25 The convection blower will not function normally Check all the connections between the controller, switch, and the convection blower against the wiring diagram. If the convection motor will not run, apply 115 V to the motor directly. If the motor runs, replace the fan controller.
- Page 26 placing a jumper across the pins. If the auger now cycles very quickly, test the dial-a-fire potentiometer. If the auger did not cycle then replace the timing control module. To test the dial-a-fire potentiometer. The potentiometer should have a range of 68K to approximately 850 K (±...
-
Page 27: Wiring Diagram
WIRING DIAGRAM... -
Page 28: Parts List
PARTS LIST EF-001 AUGER MOTOR EF-088A LOG SET (20-036) EF-002 CONVECTION BLOWER EF-091 FPI BRASS TRIM EF-004 CONVECTION BLOWER IMPELLER EF-092 EF3Bi GOLD DOOR COMPLETE EF-007 COMBUSTION BLOWER COMPLETE EF-093 EF3Bi GOLD DOOR ONLY EF-008 COMBUSTION MAIN IMPELLER EF-094 EF3Bi PAINTED DOOR COMPLETE EF-009 COMBUSTION COOLING IMPELLER EF-095... -

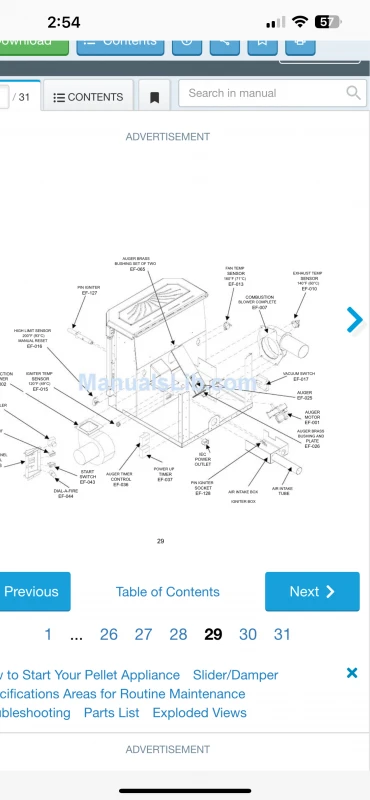

Page 29: Exploded Views
AUGER BRASS BUSHING SET OF TWO FAN TEMP EF-065 SENSOR EXHAUST TEMP SENSOR 160°F (71°C) 140°F (60°C) EF-013 PIN IGNITER EF-010 EF-127 COMBUSTION BLOWER COMPLETE EF-007 HIGH LIMIT SENSOR 200°F (93°C) MANUAL RESET EF-016 CONVECTION IGNITER TEMP VACUUM SWITCH BLOWER SENSOR EF-017 EF-002... - Page 30 EF 2/3 HOPPER EF3Bi DECORATIVE LID WITH HANDLE TRIVET FPI OVERSIZED EF-104 EF-150 PAINTED SURROUND BIH OVERSIZE CONTROL EF-078 EF-151 GOLD SURROUND PANEL EF-079 W/DECAL EF-053 EF 3Bi STOVE EF3Bi FS HOPPER SIDE EF-111 RAIL EF-143 HOPPER LID HINGE EF-141 EF3Bi FPI SIDE RAILS (R &...
-
Page 31: Warranty
WARRANTY Sherwood Industries Ltd. gives a five year limited warranty on all steel manufactured parts. A one year warranty is provided on all electrical components. The above limited warranties are extended only to the original purchaser. There is no warranty on the following parts: Glass window Fiberglass rope baskets Refractory material...
