TOUCH SCREEN WEATHER STATION
Table of Contents
Notes
and Alarm Value Settings
9....................Operating and Setting of various
Functions
MODEL WS-3610
Operation Manual
Function
11 ..................Additional Information - Outdoor
Temperature Display
12 ..................Additional Information - Wind
Display
Signal
1
Backlight, Buzzer and Alarm in the
WIND Section
Advertisement
Table of Contents
Related Manuals for La Crosse Technology WS-3610
Summary of Contents for La Crosse Technology WS-3610
-
Page 1: Table Of Contents

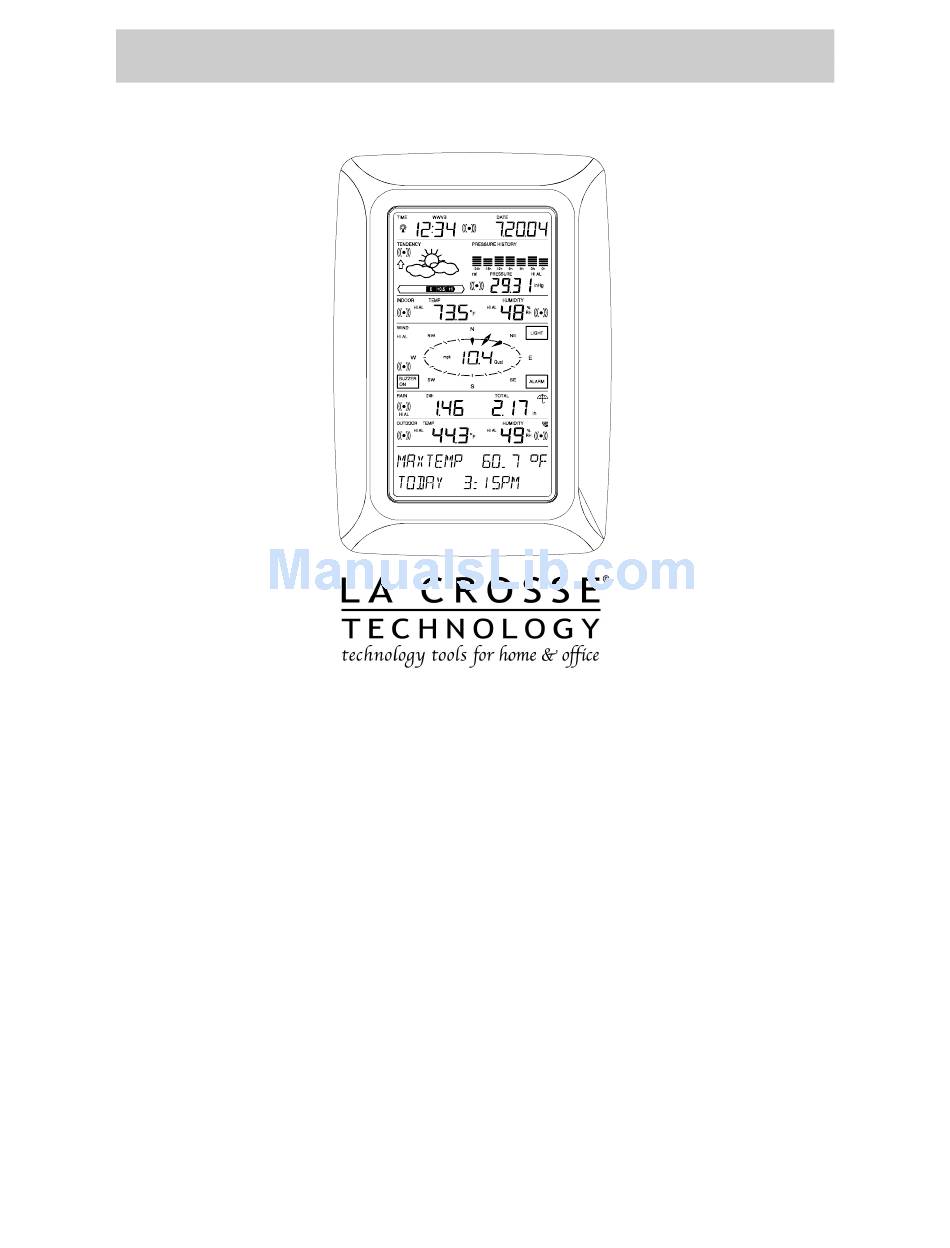

TOUCH SCREEN WEATHER STATION MODEL WS-3610 Operation Manual Table of Contents Function 11 ....Additional Information – Outdoor 1....General Temperature Display 2....Important Touch Screen Operating 12 ....Additional Information – Wind Notes Display 3....Putting into Operation 12.1 ....Operating and Setting the Wind 3.1 ....Wiring the System... -
Page 2: General
Note: In case the menu is used, the active menu steps temporarily replace all of these indications. In addition to the LCD monitor, the WS-3610 also allows all measured and displayed time and weather data to be transferred to a PC via a Com port connection. The supplied software provides complete history data sets, data graphing, and web update capability. -
Page 3: Wiring The System
Wiring the System Prior to powering up either the Base Station or Thermo-Hygro Sensor, the cables for the Rain Sensor and Wind sensor must be connected to their respectively marked jacks in the Thermo- Hygro sensor. The Thermo-Hygro Sensor and Base Station can be directly connected via cable in case that •... -
Page 4: System Start 3.4
System Start After inserting the batteries or connecting the AC adapter, the LCD of the Weather Station will display all display segments for a few seconds. Immediately after this the unit will enter test mode during which all measured and received weather data is cycled through, updated and displayed for a period of approximately 15 minutes. - Page 5 Activate/Deactivate storm warning alarm with ٭ON٭ / ٭OFF( ٭Default ON). Relearn Mode (Relearn Tx) → Allows the WS-3610 to relocate the outdoor transmitter (for example after a battery change in the transmitter) without the necessity of a complete re-setup of...
-
Page 6: Display Of Stored Min/Max Values
Min/Max values. (See above) At any time the opposite respective menu (MIN/MAX or ALARM) can be accessed via its respective field. The WS-3610 can also be returned to normal display at any time by touching the *EXIT* field. -
Page 7: Radio Controlled Wwvb Clock
Radio Controlled WWVB Clock The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact time and date signal continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through the internal antenna in the Weather Station. -
Page 8: Weather Tendency
Weather Tendency Call up the tendency display by touching the weather symbol in the TENDENCY section. The text section (last two lines on the LCD) will show since when (with time and date) the weather condition corresponds to the presently displayed weather symbol Sunny, Fair (Cloudy with sunny intervals) or Rainy. -
Page 9: Operating And Setting Of The Rain
The displayed value can be reset to the current value by touching *CONFIRM*. To advance without resetting, touch ٭EXIT.٭ End of Example Example for Setting of Alarms by means of the HI Alarm As in the example above, call up the menu on the text section by touching the PRESSURE section. -
Page 10: Operating And Setting The Wind Direction Alarm
Important Note! Operation and settings of the Rain function are essentially identical to the ones described in Item 9 above. Therefore a short description of the trivial differences with regard to Item 9 should be sufficient. • Since it is not necessary to display minimum rain values, the menu does not offer the item ٭MIN... -
Page 11: Operating And Setting Of The
Touch Screen in the center of the text display (last two lines on the LCD). PC Connection In addition to the LCD monitor, the WS-3610 also allows all measured and displayed time and weather data to be transferred to a PC via a Com port connection. The supplied software provides complete history data sets, data graphing, and web update capability. -
Page 12: Technical Data
Technical Data 15.1 Outdoor Data: Transmission Range in Open Field: ..up to. 330 ft max. Measuring Interval Outdoor Data: ..every 20 s Temperature Range: ......-40 °F to 139.8 °F (Display “OFL” outside this range) Resolution:........... approx. 0.5 °F Measuring Range Rel. -
Page 13: Dimensions
La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 14 For warranty work, technical support, or information contact: La Crosse Technology, Ltd 190 Main Street La Crescent, MN 55947 Phone: 507.895.7095 Fax: 507.895.2820 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com Questions ? Please see instruction video at www.lacrossetechnology.info/3610...
