Measurements
When the meter is properly powered, mounted, configured, and wired to the transducers as
described earlier, the meter can begin to be used to accurately display pressure readings.

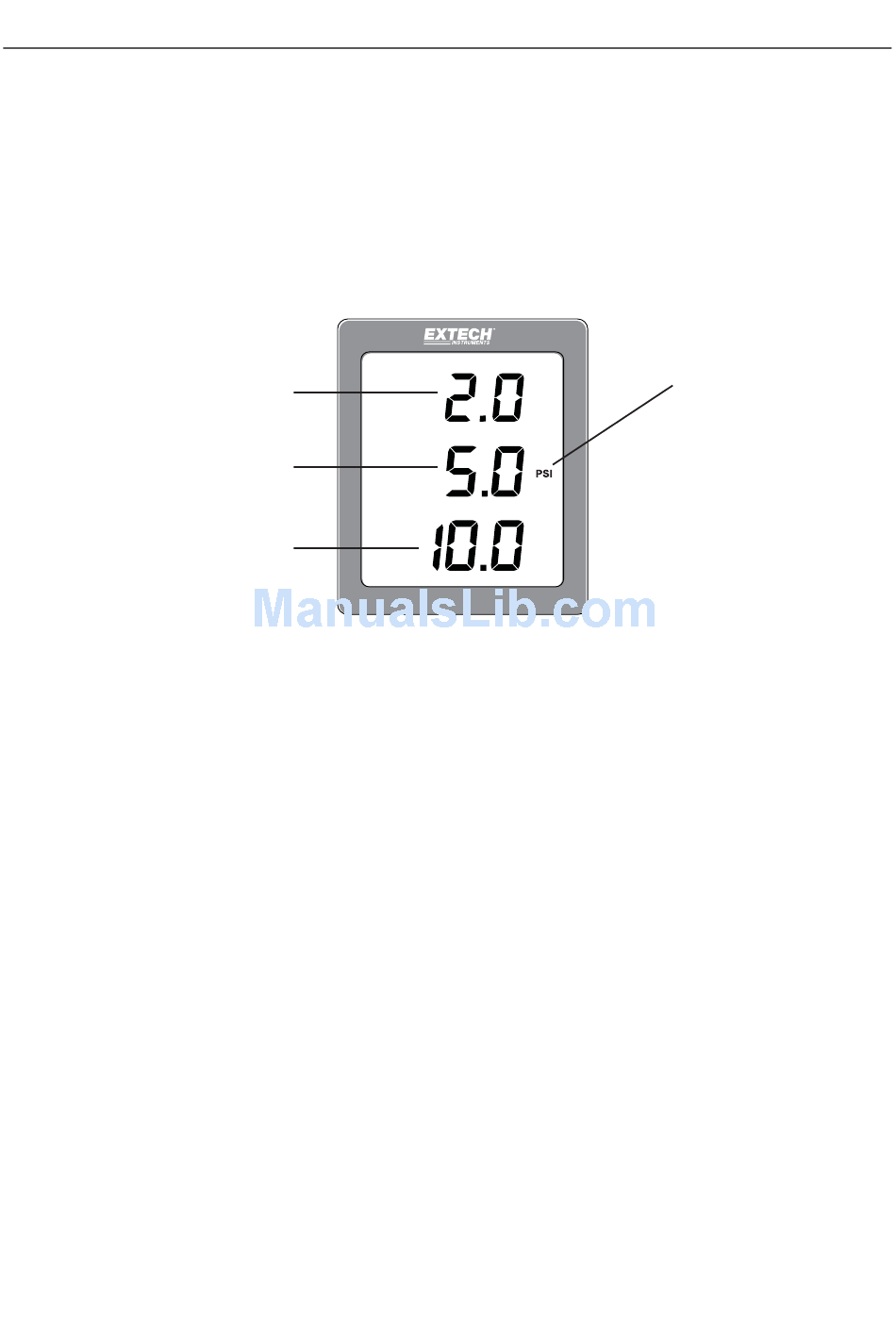

The meter's LCD shows the Channel 1 input reading on the top, the Channel 2 reading in the
center, and the Channel 3 reading on the bottom as shown below. If the x100 indicator is
flashing on the display, multiply the displayed reading by a factor of 100 to obtain the correct
reading.
The unit of measure shown to the right of the Channel 2 reading applies to all channels. Select
the unit of measure as described in the SET MODE section.
Channel 1
Channel 2
Channel 3
8
UNITS
