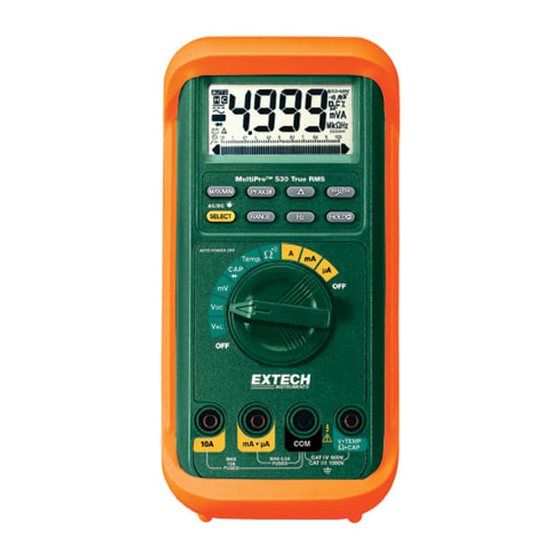

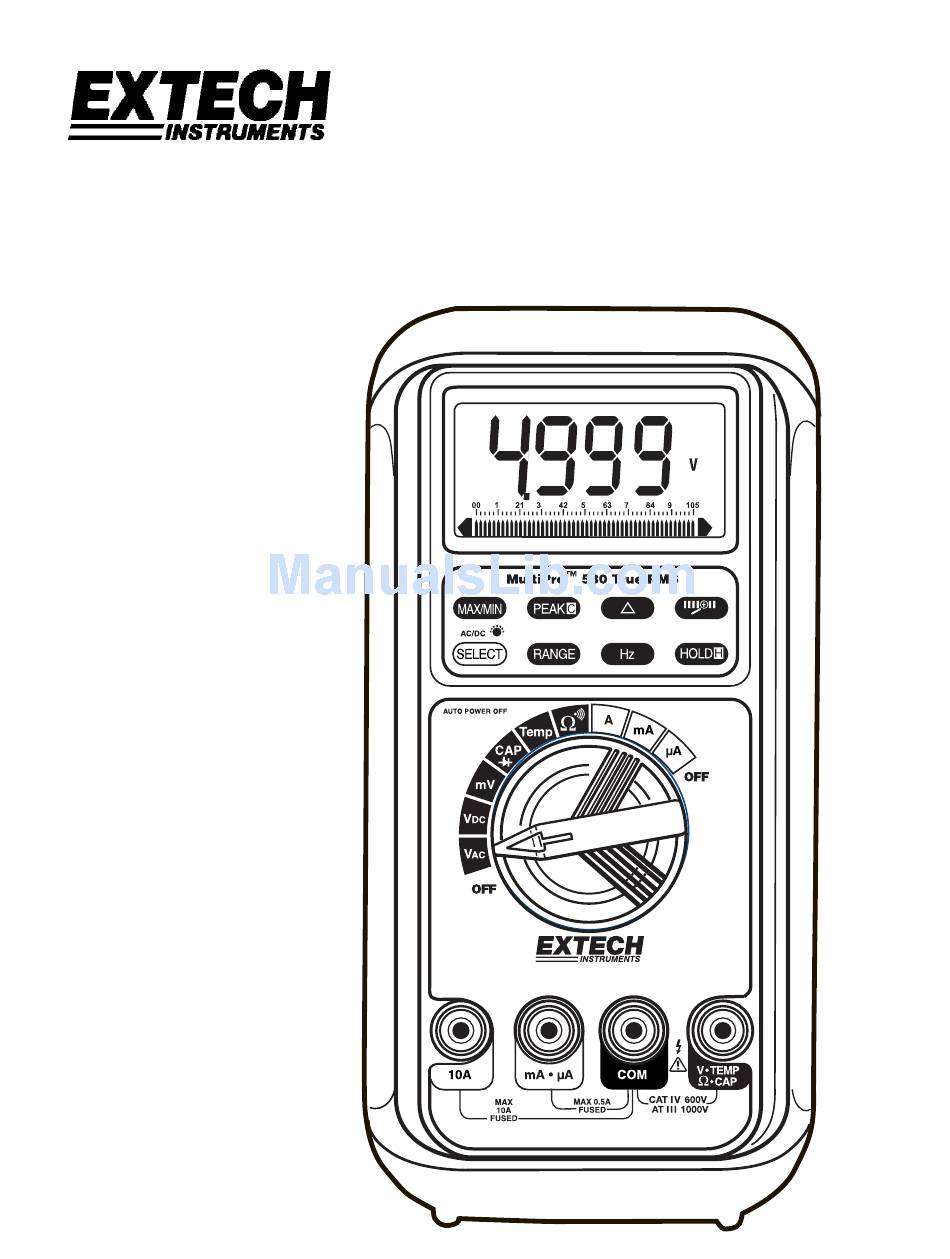

- Page 1 User’s Guide MultiPro™ Digital MultiMeter Series With PC Interface Models: MP510 MP520 MP530...
-
Page 2: Warranty
WARRANTY EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for three years from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext. - Page 3 Introduction Congratulations on your purchase of Extech model MP510, MP520, or MP530 digital multimeter. Properly used, this meter will provide many years of reliable service. MultiPro™ Meters measure AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance, Diode, and Continuity. The MultiPro™ also offers RS-232 PC Interface data acquisition capabilities as an option.
-
Page 4: Overvoltage Category
8. Remove the battery from the meter if the meter is to be stored for long periods. 9. To avoid electric shock, do not measure AC current on any circuit whose voltage exceeds 500V AC. 10. Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty of connection to the electrical contacts. -
Page 5: Specifications
Specifications DC VOLTAGE RANGE Accuracy 50.00 mV 0.12% + 2d 500.0 mV 0.06% + 2d 5.000V, 50.00V, 500.0V, 1000V 0.08% + 2d NMRR: >60dB @ 50/60Hz, CMRR: >120dB @ DC, 50/60Hz, Rs=1kΩ Input impedance: 10MΩ, 16pF nominal (44pF nominal for 50mV & 500mV ranges) AC VOLTAGE RANGE... - Page 6 AC CURRENT RANGE Accuracy Burden Voltage 50 / 60Hz 0.6%+3d 500.0µA, 5000µA 0.15mV/µA 50.00mA, 500.0mA 0.6%+3d 3.3mV/mA 5.000A, 10.00A* 0.6%+3d 0.03V/A 40Hz to 1kHz 0.8%+4d 500.0µA, 5000µA 0.15mV/µA 50.00mA 0.8%+4d 3.3mV/mA 500.0mA 1.0%+4d 3.3mV/mA 5.000A, 10.00A* 0.8%+4d 0.03V/A *10A continuous, 20A for 30-second max with 5 minutes cool down interval Peak Capture (for V &...
- Page 7 FREQUENCY Function Sensitivity Range (ACrms) 300mV 10Hz - 125kHz 10Hz - 125kHz 10Hz - 20kHz 500V 10Hz - 1kHz 1000V 300V 10Hz - 1kHz Ω, Cx, diode 300mV 10Hz - 125kHz µA, mA, A 10% F.S. 10Hz - 125kHz Accuracy: 0.01% + 2d Audible Continuity: Measurement threshold: Beeper will sound if measurement is below 20Ω.
- Page 8 AC Sensing: True RMS on MP520 and MP530 Auto Power Off: After 17 minutes of inactivity with no input signal Safety: The MultiPro™ Series meters are intended for indoor use and protected, against the users, by double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to CAT III 1000V &...
- Page 9 However, non-sinusoidal waveforms cannot accurately measured using Average-sensing techniques. NOTE: The MP510 is average sensing; the MP520 and MP530 are True RMS. Backlit display The MultiPro™ series multimeters are equipped with a backlight for viewing the LCD display in poorly lit areas.
- Page 10 Data Hold The HOLD function freezes the reading on the display for later viewing. Manual and Automatic Ranging The MultiPro™ series multimeters are Autoranging, with manual override. Smart Power Auto Power Off Smart Power shuts the meter down automatically after approximately 17 minutes of inactivity.
-
Page 11: Operation
Operation Measurement Considerations NOTICE: Read and understand all warning and caution statements listed in the safety section of this operation manual prior to using this meter. 1. Always move the rotary function switch to the OFF position when the meter is not in use. This meter has Auto Power OFF that automatically shuts the meter OFF if 17 minutes elapse without activity. - Page 12 Resistance and Continuity Measurements 1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the V/Ω/CAP jack. 2. Set the function switch to the "Ω " position. 3. Press the SELECT key momentarily to select Continuity (if required). 4.
- Page 13 Frequency Measurements 1. Connect and make the measurement required as described in the previous paragraphs. 2. Press the Hz key to select the Frequency (Hz) function. 3. Read the frequency on the display Notes on sensitivity: Input sensitivity varies automatically with function range selected. The mV function has the highest (300mV) and the 1000V range has the lowest (300V) sensitivity.
- Page 14 MAX/MIN (MP530 only) 1. Press the MAX/MIN key to activate the MAX/MIN recording mode. The display annunciators "MAX/MIN" will appear. The meter will beep every time a new maximum or minimum reading is sensed. Auto power off is disabled while in MAX/MIN mode. 2.
-
Page 15: Maintenance
RS-232 PC Interface This instrument is equipped with an optically isolated interface port (located on the rear of the meter). An optional Windows software (part no. SW800) and interface package is available for data acquisition applications. This optional kit is required to connect the meter to a PC. - Page 16 Battery Replacement Loosen the 2 screws from the battery access door of the case bottom. Lift the battery access door and thus the battery compartment up. Replace the battery. Re-fasten the screws. Battery: Standard 9V Alkaline (NEDA1604, JIS006P, IEC6F22) Fuse Replacement 1.
