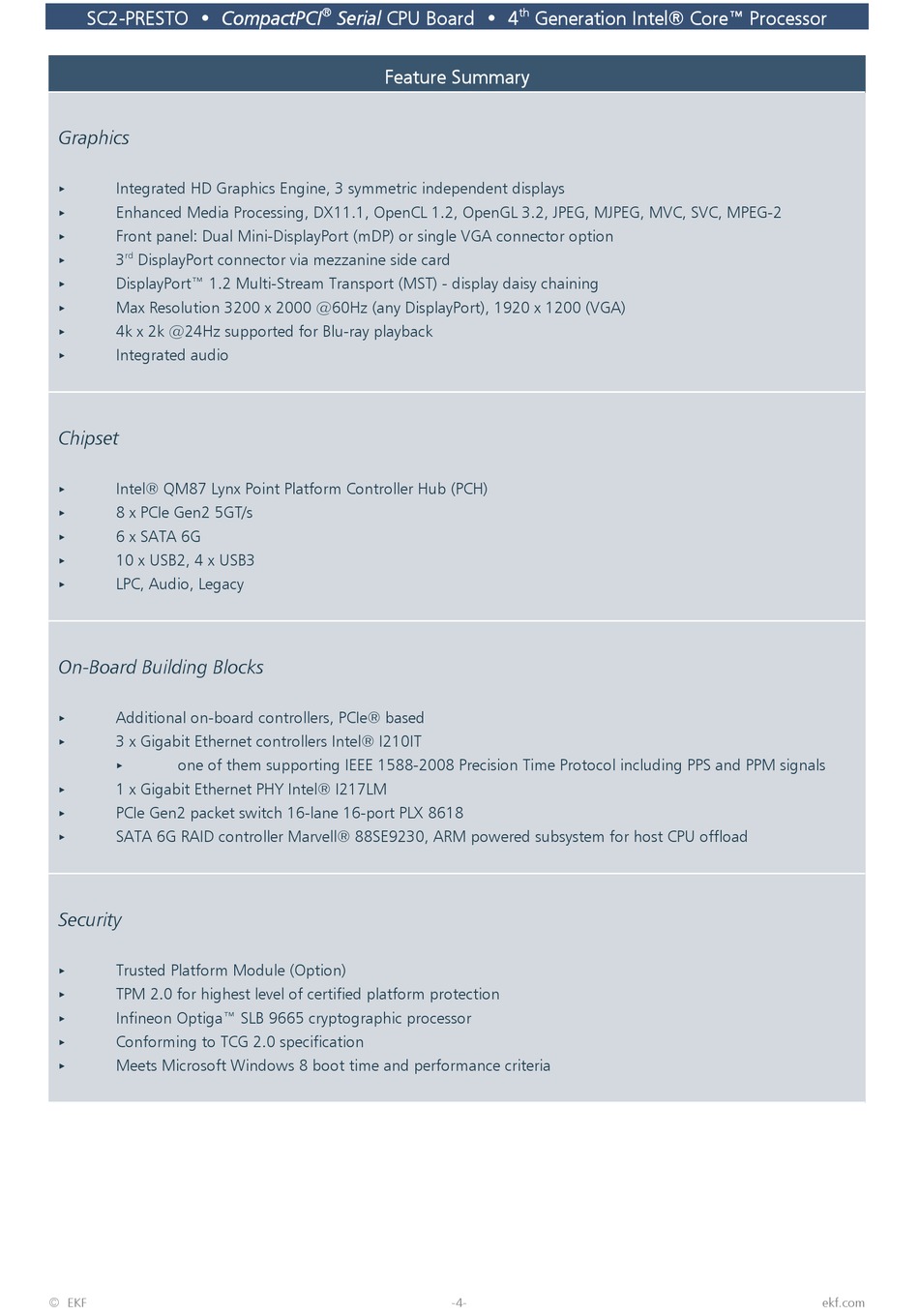

EKF SC2-PRESTO Product Information page 4

SC2-PRESTO • CompactPCI
Graphics
Integrated HD Graphics Engine, 3 symmetric independent displays
<
Enhanced Media Processing, DX11.1, OpenCL 1.2, OpenGL 3.2, JPEG, MJPEG, MVC, SVC, MPEG-2
<
< Front panel: Dual Mini-DisplayPort (mDP) or single VGA connector option
rd
3 DisplayPort connector via mezzanine side card
<
DisplayPort™ 1.2 Multi-Stream Transport (MST) - display daisy chaining
<
Max Resolution 3200 x 2000 @60Hz (any DisplayPort), 1920 x 1200 (VGA)
<
< 4k x 2k @24Hz supported for Blu-ray playback
Integrated audio
<
Chipset
Intel® QM87 Lynx Point Platform Controller Hub (PCH)
<
8 x PCIe Gen2 5GT/s
<
< 6 x SATA 6G
10 x USB2, 4 x USB3
<
LPC, Audio, Legacy
<
On-Board Building Blocks
Additional on-board controllers, PCIe® based
<
< 3 x Gigabit Ethernet controllers Intel® I210IT
one of them supporting IEEE 1588-2008 Precision Time Protocol including PPS and PPM signals
<
1 x Gigabit Ethernet PHY Intel® I217LM
<
PCIe Gen2 packet switch 16-lane 16-port PLX 8618
<
< SATA 6G RAID controller Marvell® 88SE9230, ARM powered subsystem for host CPU offload
Security
Trusted Platform Module (Option)
<
TPM 2.0 for highest level of certified platform protection
<
Infineon Optiga™ SLB 9665 cryptographic processor
<
< Conforming to TCG 2.0 specification
Meets Microsoft Windows 8 boot time and performance criteria
<
© EKF
®
Serial CPU Board • 4
Feature Summary
-4-
th
Generation Intel® Core™ Processor
