1

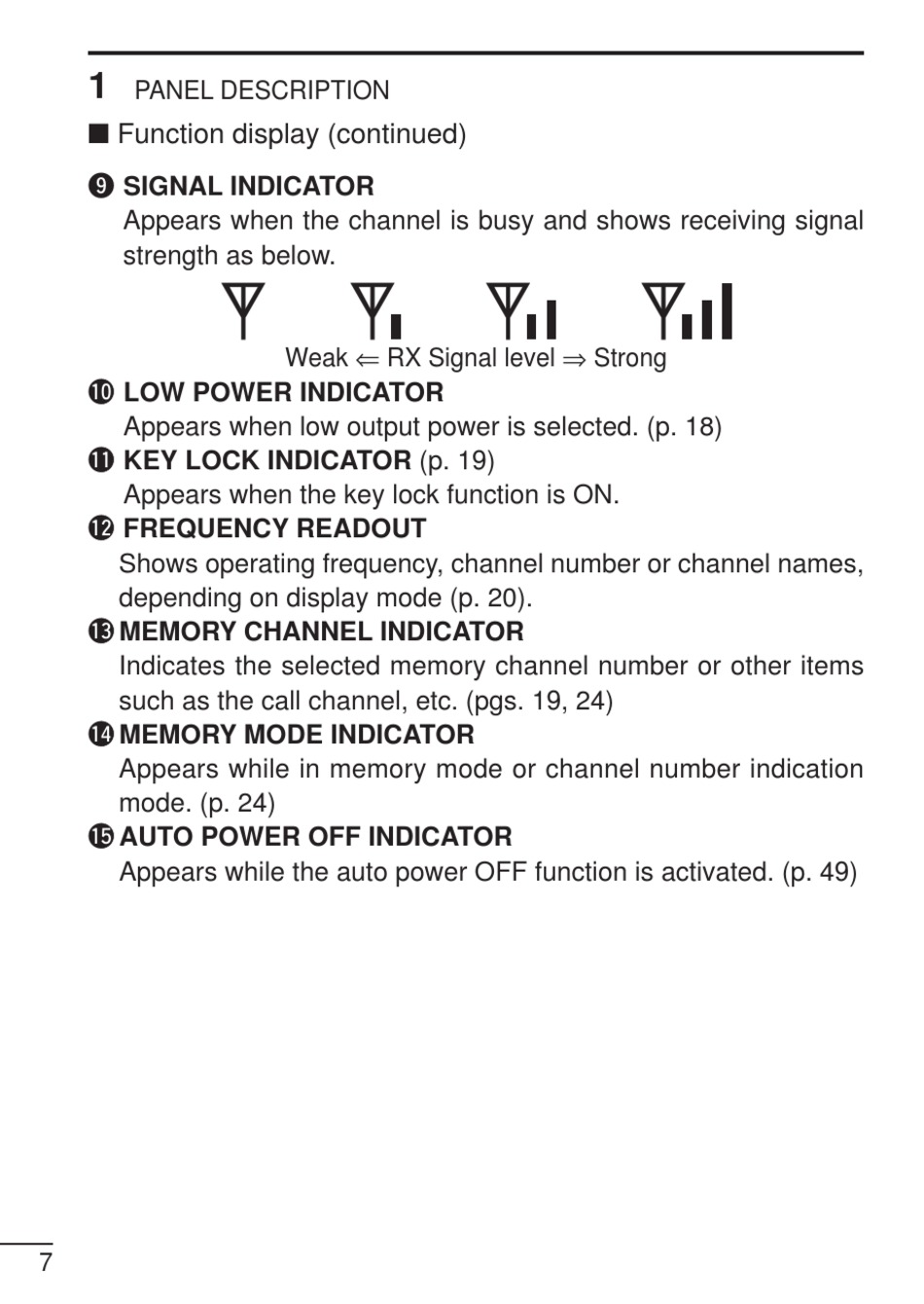

PANEL DESCRIPTION
Function display (continued)
o SIGNAL INDICATOR
Appears when the channel is busy and shows receiving signal
strength as below.
!0 LOW POWER INDICATOR
Appears when low output power is selected. (p. 18)
!1 KEY LOCK INDICATOR (p. 19)
Appears when the key lock function is ON.
!2 FREQUENCY READOUT
Shows operating frequency, channel number or channel names,
depending on display mode (p. 20).
!3 MEMORY CHANNEL INDICATOR
Indicates the selected memory channel number or other items
such as the call channel, etc. (pgs. 19, 24)
!4 MEMORY MODE INDICATOR
Appears while in memory mode or channel number indication
mode. (p. 24)
!5 AUTO POWER OFF INDICATOR
Appears while the auto power OFF function is activated. (p. 49)
7
Weak ⇐ RX Signal level ⇒ Strong
