Defender CA6000 Owner's Manual

Carbon monoxide alarm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Carbon Monoxide Alarm
Owner's Manual
Owner's Manual
Owner's Manual
Owner's Manual
Sealed Lithium Battery Powered
CA6000
Sealed Lithium Battery
Powered CO Alarm, Single
Station

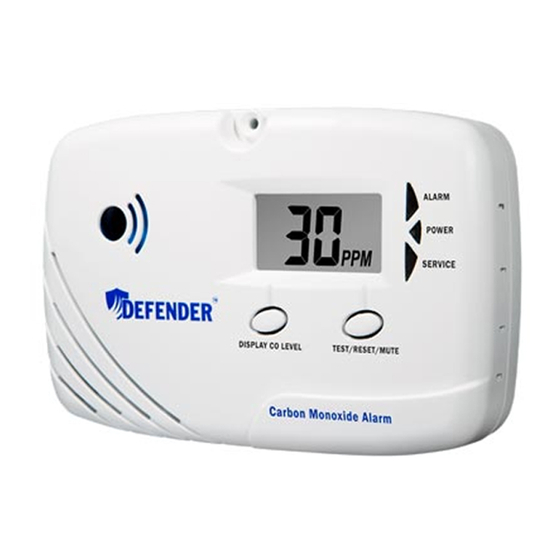

CA6050
Sealed Lithium Battery
Powered CO Alarm with LCD
Digital Display and Peak Level
Memory, Single Station
Manual P/N: 240-1104
Rev-03
Feb 6, 2013
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Defender CA6000

Summary of Contents for Defender CA6000

  • Page 1 Carbon Monoxide Alarm Owner’s Manual Owner’s Manual Owner’s Manual Owner’s Manual Sealed Lithium Battery Powered CA6000 Sealed Lithium Battery Powered CO Alarm, Single Station CA6050 Sealed Lithium Battery Powered CO Alarm with LCD Digital Display and Peak Level Memory, Single Station...

  • Page 2: Contents Of This Manual

    CONTENTS OF THIS MANUAL IMPORTANT MESSAGE AND INSTRUCTIONS WARNING MESSAGES FEATURES AND SPECIFICATIONS INFORMATION ABOUT CARBON MONOXIDE RECOMMENDED LOCATIONS OF ALARMS LOCATIONS TO AVOID INSTALLATION INSTRUCTIONS FUNCTIONS AND OPERATION TEST AND MUTE ALARM 10. WHAT TO DO WHEN THE ALARM SOUNDS 11.

  • Page 3: Warning Messages

    the other label near a source of fresh air where you plan to gather when the carbon monoxide alarm signals are activated. After installation is completed, TEST your alarm by pressing the TEST/RESET/MUTE button for at least 5 seconds. Detailed testing instructions are outlined in Section 9. DO NOT TRY TO TEST THIS ALARM IN ANY OTHER WAY: If no alarm sounds, or low or erratic sound emits from the alarm during a test, the unit may be defective and should be returned for service.

  • Page 4: Features And Specifications

    3. FEATURES AND SPECIFICATIONS • Factory Sealed Lithium Batteries with Soldered Connections • Unique Battery Activation/Deactivation Switch • Accurate and Reliable Water-Based Electrochemical Sensor • Integrated Filter for Removing Nuisance Gases • Samples for Carbon Monoxide (CO) Every 10 Seconds •...
  • Page 5 SPECIFICATIONS CO Response Times: 70 PPM: 60-240 minutes, 150 PPM: 10-50 minutes, 400 PPM: 4-15 minutes, Sensor Type: Electrochemical Operating Temperature: F (4.4 C) to 100 F (37.8 Audible Signal: Buzzer Horn Sounds 85 dB at 10 feet Visual Signal: •...
  • Page 6 4. INFORMATION ABOUT CARBON MONOXIDE WHAT IS CARBON MONOXIDE? Carbon monoxide (CO) is a highly toxic, invisible, odorless, tasteless gas. HOW IS CO GENERATED IN THE HOME? Carbon monoxide is generated through incomplete combustion of fuel in various home appliances. Faulty ventilation of furnaces, water heaters, fireplaces, wood burning stoves, and space heaters are the major cause of high CO levels in the home.

  • Page 7: Recommended Location Of Alarms

    RECOMMENDED LOCATION OF ALARMS The Consumer Products Safety Commission (CPSC) recommends the use of "at least one CO alarm per household located outside each sleeping area." (See diagrams "A" and “B”). CO poisoning can happen anywhere in the home, but because most CO poisoning cases occur while people are sleeping, the best location for the CO alarm is near the sleeping area in the home.

  • Page 8: Locations To Avoid

    6. LOCATIONS TO AVOID NEAR THE COOKING AREA: Do not install the alarm within five feet of cooking appliances. CO may be generated in the cooking process and cause nuisance alarms. Also, cooking grease can build up on the alarm and cause alarm failure. WITHIN FIVE FEET OF A FURNACE, WATER HEATER, OR SPACE HEATER: These devices often spill out small amounts of CO when they first turn on.
  • Page 9 If the activation switch is not set to ON position, as in diagram (D), the mounting hole at top of alarm will be blocked, and the CO alarm will not be activated. The models CA6000 and CA6050 are a sealed lithium battery powered wall mounted alarm. Two lithium battery cells are permanently sealed with soldered connections, and cannot be removed.

  • Page 10: Functions And Operation

    8. FUNCTIONS AND OPERATION OPERATION: The CO alarm is operational once the activation switch is slid to ON position. The green LED will flash once every 30 seconds. The model CA6050 LCD will also continuously display to indicate that the CO alarm’s power is active. LOW BATTERY CONDITION: When the battery voltage drops below an acceptable level, the alarm will chirp once per minute and the green LED will blink 5 seconds every...
  • Page 11 DISPLAY CO LEVEL BUTTON (FOR MODEL CA6050): To manually display the current and highest CO level detected, press the button once. The DISPLAY CO LEVEL LCD will display the recorded data in the following order: 1. The current CO level detected, and 2.

  • Page 12: What To Do When The Alarm Sounds

    30 days, the alarm will return to its normal “End-of-Life” condition; 1 chirp per minute, red LED glows for 5 seconds at the same time, and model CA6050 SERVICE continuously displays “End”. To test your alarm during an “End-of-Life” condition, press and hold TEST/RESET/MUTE button for minimum 2 seconds when audible signal is not sounding.

  • Page 13: Limitations Of Carbon Monoxide Alarms

    IF YOU HAVE BEEN AWAY FROM HOME and you return to find your alarm(s) sounding, DO NOT ENTER YOUR HOME. Call the Fire Department from a neighbor's home. DO NOT RE-ENTER YOUR HOME FOR ANY REASON UNTIL YOU HAVE BEEN ASSURED THAT IT IS SAFE TO DO SO. Conditions which can result in transient CO situations: 1) Excessive spillage or reverse venting of fuel burning appliances caused by outdoor ambient conditions, such as:...

  • Page 14: Good Safety Habits

    12. GOOD SAFETY HABITS DEVELOP AND PRACTICE A PLAN OF ESCAPE: Make a floor plan indicating all doors and windows and at least two escape routes from each room. Second story windows may need a rope or chain ladder. Have a family meeting to discuss your escape plan, and show everyone what to do in case an alarm sounds.
  • Page 15 13. DESCRIPTION OF AUDIBLE AND VISUAL SIGNALS Condition LCD Readout LEDs Horn CO alarm is Green LED flashes once Displays Silence operational every 30 seconds continuously Beeps 4 times, pauses for 5 ALARM red LED flashes 4 seconds. Repeats this Displays current CO CO gas alarm times in synchronous with...
  • Page 16 14. END-OF-LIFE AND SERVICE After the alarm has been activated for 5 years, the alarm reaches the end of its life and emits the End-of-Life signal. The alarm will chirp once per minute, the SERVICE LED will glow for 3 seconds at the same time, and the model CA6050 LCD will continuously display .

  • Page 17: Five-Year Limited Warranty

    Proof of purchase is required to obtain warranty service. Dealers, service centers, or retail stores selling Defender products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.
