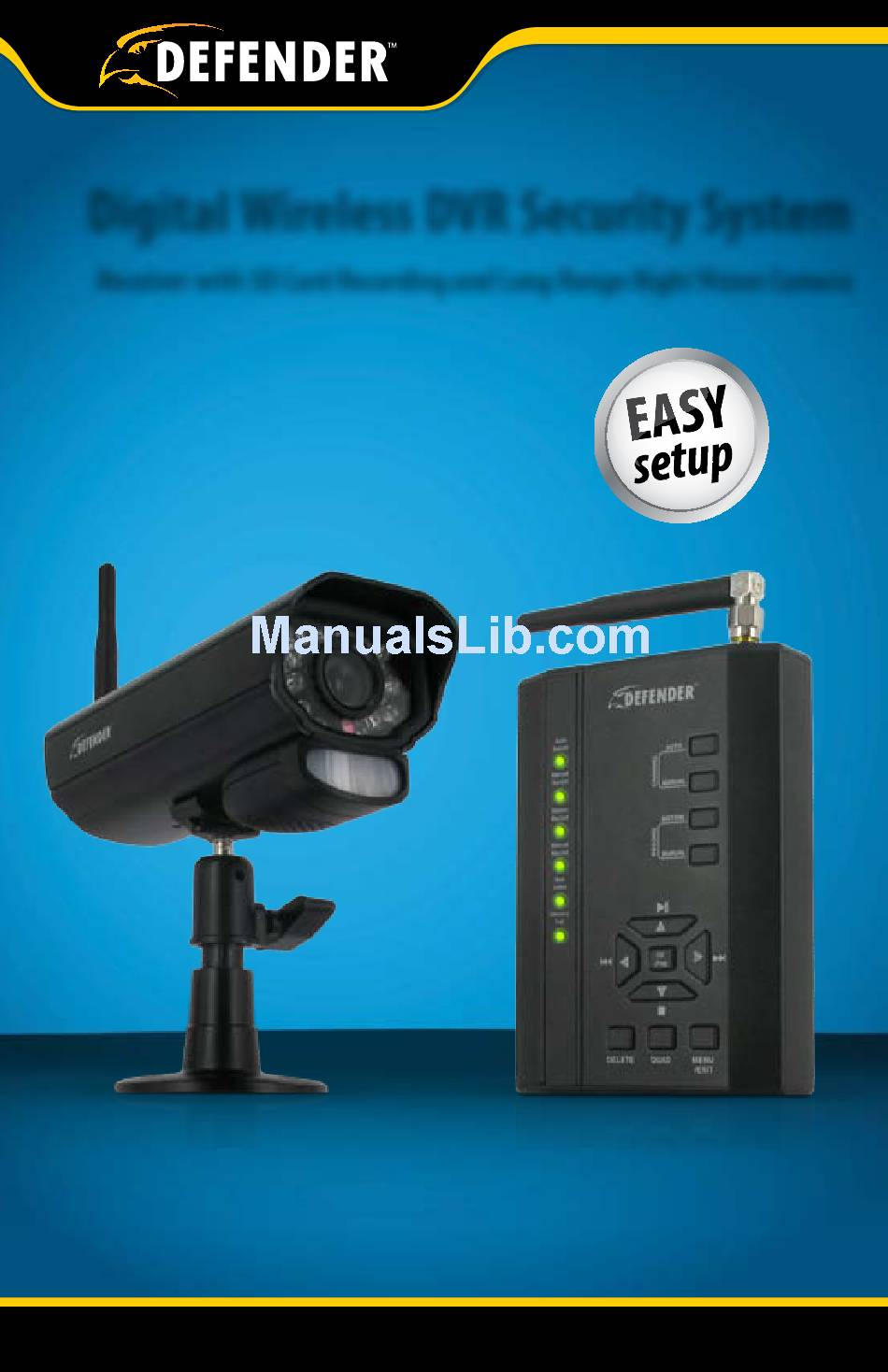

- Page 1 Digital Wireless DVR Security System Receiver with SD Card Recording and Long Range Night Vision Camera INSTRUCTION MANUAL V1.0 www.defender-usa.com Model#: PX301...
- Page 3 This warranty does not cover shipping costs, insurance, or any other incidental charges. You MUST call Defender before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
-
Page 4: Table Of Contents
Feel secure in knowing that you will never miss a thing with your PX301 allowing you to see, hear and record events which are happening at all times. -
Page 5: Features
The LEDs automatically activate when it gets dark, giving you around the clock protection. Easily Connects to a TV Use the included 6ft AV wire to connect to any television so you can see and hear your footage on a larger screen. PX301... - Page 6 1. IR illumination range up to 40ft under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application. 2. Not for use in direct exposure to water, rain or snow. Although the cameras are water resistant they are not waterproof. 3. Recording in quad screen mode not supported. Single channel recording only For more information: Please visit www.defender-usa.com PX301...
-
Page 7: What's Included
Power Adapter for Receiver • IR extension cord • Manual • RCA to RCA (male) cable ALTERNATE KITS PX301 - 013 The following kits have the following items included (as Additional Camera well as what is mentioned above) ADDITIONAL ACCESSORIES... -
Page 8: Buttons And Connections
BUTTONS AND CONNECTIONS RECEIVER 1 2 3 4 19 20 21 14 15 16 PX301... - Page 9 Plug the included IR extension cord into this area if you would like to have a stronger signal between the remote and receiver Note: To jump to a particular paired camera while in quad mode, select the camera number on the navigational buttons. This function only works while in quad viewing mode. PX301...
-
Page 10: Remote
7. Motion Detection: Detects any motion in front of the camera 8. Microphone: Records audio within 6 feet of camera 9. Camera Mount: Allows the camera to be desk or wall mounted 10. Power connection: This 3 ft. cord connects to the power adapter (marked “Camera”) PX301... -
Page 11: Installation
• Decide whether the camera will be wall-mounted, or mounted on a desk/table top. We recommend that the mount is secured using the included screws and hardware for all installations AVOIDING INTERFERENCE The PX301 utilizes clear signal technology, meaning that it is designed to avoid the frequencies of common wireless devices. By doing so, the system does not receive interference from any standardized 2.4GHz or 5.8 GHz wireless... -
Page 12: Mounting The Camera
7. If you purchased a kit with additional cameras, repeat the above steps for all additional cameras. Note: The above photos are examples of Plug into Surge Protected power source mounting a camera, your camera will look different from the above images. PX301... -
Page 13: Plugging In Receiver
PLUGGING RECEIVER INTO A MONITOR The PX301 comes equipped with an audio/video cable that can be plugged into any monitor with an audio/video input. Once plugged in, you will be able to watch and hear live video, access and view the menu as well as watch playback footage from your SD card. -
Page 14: Ir Extension
INSTALLATION IR EXTENSION The PX301 comes equipped with an IR extension. This IR extension is for the remote control, it allows for a better signal between the remote and receiver. Plug IR extension in To connect IR extension: 1. Plug the jack of the IR extension cord into the IR extension input on the back of your receiver. -
Page 15: Getting Started
INSERTING SD CARD INTO RECEIVER The PX301 comes equipped with a 2GB SD card. The SD card will be what the recorded footage is saved to. You are able to watch the recorded footage from the SD card through the receiver or through your computer using an SD card reader. -
Page 16: Camera Viewing
(motion and manual) are stopped and that the schedule recording is turned on. Turning on manual or motion record will stop the schedule record. Note: Make sure the correct date and time are set in the “setting” menu to ensure proper recording times for the schedule record. (See Page 21) PX301... -
Page 17: Main Menu
5. Once you have adjusted the cameras to your liking, press OK. This will exit the camera on/off menu and save your settings. 6. To exit the main menu, press the menu button. PX301... -
Page 18: Record Menu
4. Use the left and right navigational buttons to high- light the quality you would like. 5. Once the quality you would like is highlighted, press OK. This will exit the quality adjustment menu and save your settings. 6. To exit the menu, press the menu button. PX301... -
Page 19: Trigger Record
7. To turn the schedule off scroll to the OFF icon and select OK. 8. Once OK is selected (from turning schedule on or off), you will exit the schedule record menu and save your settings. 9. To exit the menu, press the menu button. PX301... -
Page 20: Overwrite
The settings menu allows you to do the following: • Adjust the date and time • Adjust brightness • Change the video standard (AV out) • Format your SD card • Adjust the camera zoom • Restore factory default settings PX301... -
Page 21: Date And Time
6. Once you have adjusted the brightness to your liking press OK, this will exit the brightness menu and save your settings. 7. To exit the menu, press the menu button. PX301... -
Page 22: Av Out
6. To cancel and return to the settings menu, use the navigational buttons to scroll to “No” and press OK. 7. Pressing OK for either option will exit the format menu and save your settings. 8. To exit the menu, press the menu button. PX301... -
Page 23: Digital Zoom
“No” to keep your current settings. 5. Once you have selected whether you would like to restore the default settings or not, press OK. This will exit the default menu and save your settings. 6. To exit the menu, press the menu button. PX301... -
Page 24: Playback
OK. 7. The footage will then begin to play with the date and time the footage was recorded displaying in the bottom right corner of the screen. Playback Screen Video Times PX301... -
Page 25: Playback Buttons
7. A prompt screen will appear asking if you would like to delete the recorded footage. Use the navigational buttons to highlight yes and press the OK button. The footage will then delete and you will return back to the file list. PX301... -
Page 26: Computer Playback
PLAYBACK COMPUTER PLAYBACK The removable SD card allows you to open, save and play recorded files from your PX301 on your computer. All you need is a SD compatible card reader and a media player that supports .avi files. Open folder to view files... -
Page 27: Backing Footage Up On A Computer
“Copy”. 7. On your computer, locate the area or folder that you would like to save the footage to, then right click and select “Paste”. 8. The footage will then be saved to that particular location on your computer. PX301... -
Page 28: Troubleshooting
• Make sure SD card is not locked by adjusting the tab on the side of the card Remote not • Ensure that the remote control has batteries inserted into it and that those working batteries are not dead • Try plugging the IR sensor in • Try using the remote control closer to the receiver PX301... -
Page 29: Specifications
Signal/Noise Ratio .....................>48dB Camera Bracket ......................Yes Operating Temperature .....................14°F ~ 104°F Operating Humidity ....................85% Mounting Hardware ....................Included Camera Power Input ....................9V DC 600mA Power Adapter Input ....................AC 100~240 50/60 Hz Dimensions .......................5.25" x 4.75" x 2'' (With Stand) Weight ........................0.75 lbs PX301... -
Page 30: Receiver
Operating Temperature .....................14°F ~ 120°F Operating Humidity ....................85% Housing Material .......................Aluminum and ABS Plastic Housing Color ......................Silver and Black Monitor Power Input ....................9V DC 600 mA Power Adapter Input ....................AC 100~240 V 50/60Hz Dimensions .......................4.25" x 3" x 0.75'' Weight ........................4 lbs PX301... -
Page 31: Replacement Parts/Additional Accessories
You may wish to add to your system and upgrade some components of it. Here are some items that can boost the effectiveness of your video security system. PRODUCT MODEL# DESCRIPTION Expand your system to a maximum of four cameras to monitor SP301-C more locations Alert all potential criminals of your security system and help SP100-ST deter crime with a window sticker Alert all potential criminals of your security system and help SGN100 deter crime with this durable aluminum sign For more information on additional accessories, parts and much more, please visit: www.defender-usa.com PX301... -
Page 32: Drilling Template
DRILLING TEMPLATE Cut along the dotted line for a drilling template. DRILL HOLES IN DRILL HOLES IN THE MARKED THE MARKED AREAS AREAS DRILL HOLES IN DRILL HOLES IN THE MARKED THE MARKED AREAS AREAS PX301... - Page 34 DISCLAIMER Defender does not endorse any of defender products for any illegal activities. Defender is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a Defender product is in use by the consumer.
