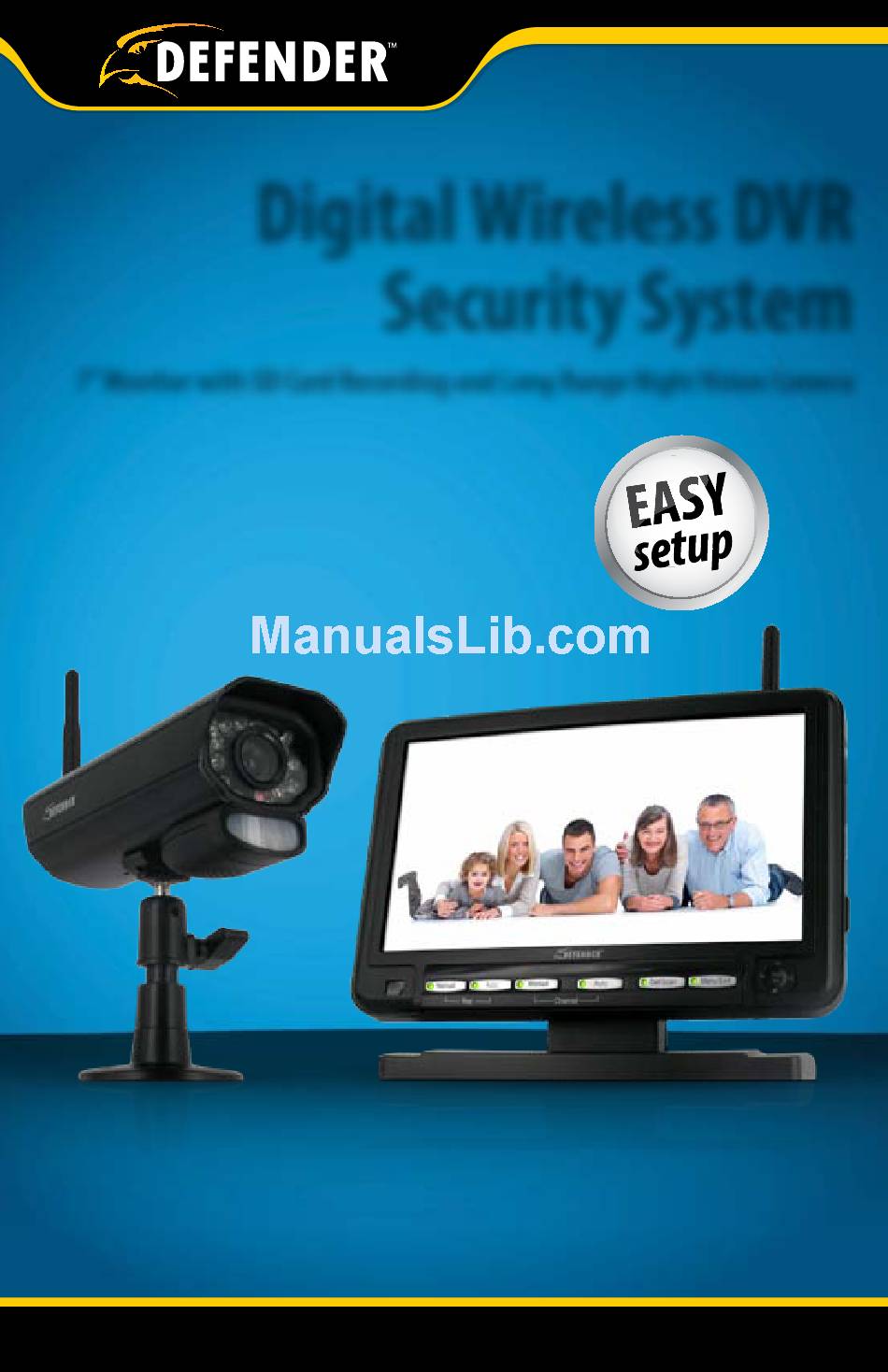

Digital Wireless DVR
Security System
7" Monitor with SD Card Recording and Long Range Night Vision Camera
INSTRUCTION MANUAL
V1.0
www.defender-usa.com
Model#: px301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the px301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Defender px301

  • Page 1 Digital Wireless DVR Security System 7” Monitor with SD Card Recording and Long Range Night Vision Camera INSTRUCTION MANUAL V1.0 www.defender-usa.com Model#: px301...
  • Page 3: Product Warranty Information

    This warranty does not cover shipping costs, insurance, or any other incidental charges. You MUST call Defender before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
  • Page 4: Table Of Contents

    Feel secure in knowing that you will never miss a thing with your PX301 allowing you to see, hear and record events which are happening at all times.
  • Page 5: Features

    2 Way Intercom Feature The 2 way intercom allows you to speak with whomever you are monitoring. Safely carry on conversations or monitor your entrance without ever having to open the door to strangers. PX301...
  • Page 6: For More Information

    This system can support up to four cameras so you can monitor multiple offices, entrances and outdoor areas at the same time. Additional Camera: PX301-C Motion Detection Settings Motion detection gives you the option to record only when movement is detected to conserve your SD card memory.
  • Page 7: What's Included

    RCA to RCA (male) cable • Manual ALTERNATE KITS The following kits have the following items included (as well as what is mentioned above): PX301 - 011 Additional Camera ADDITIONAL ACCESSORIES PX 301-C Additional Camera For more information please visit: www.defender-usa.com...
  • Page 8: Buttons And Connections

    BUTTONS AND CONNECTIONS MONITOR 10 11 12 PX301...
  • Page 9 Note: To jump to a particular paired camera while in quad mode, select the camera number on the joystick. This function only works while in quad viewing mode. PX301...
  • Page 10: Remote

    8. Speaker/Microphone: Allows you to hear and record sounds, and talkback to whomever you are recording 9. Camera Mount: Allows the camera to be desk or wall mounted 10. Power connection: This 3 ft. cord connects to the power adapter (marked “Camera”) PX301...
  • Page 11: Installation

    • Decide whether the camera will be wall-mounted, or mounted on a desk/table top. We recommend that the mount is secured using the included screws and hardware for all installations AVOIDING INTERFERENCE The PX301 utilizes Clear Signal Technology, meaning that it is designed to avoid the frequencies of common wireless devices.
  • Page 12: Mounting The Camera

    7. If you purchased a kit with additional cameras, repeat the above steps for all additional cameras. Plug into Surge Protected power source Note: The above photos are examples of mounting a camera, your camera will look different from the above images. PX301...
  • Page 13: Plugging In Monitor

    CONNECTING TO ANOTHER MONITOR The PX301 comes equipped with an audio/video cable that can be plugged into any monitor with an audio/video input. Once plugged in, you will be able to watch and hear live video, access and view the menu as well as watch playback footage from the monitor you have plugged into.
  • Page 14: Pairing

    7. The camera and monitor will then pair and you will see the camera’s view appear on screen. 8. If you purchased additional cameras or your kit came with additional cameras repeat the above pairing steps using different camera channels for each ad- ditional camera. PX301...
  • Page 15: Getting Started

    INSERTING SD CARD INTO MONITOR The PX301 comes equipped with a 2GB SD card. The SD card will be what the recorded footage is saved to. You are able to watch the recorded footage from the SD card through the monitor or through your computer using an SD card reader.
  • Page 16: Camera Viewing

    (motion and manual) are stopped and that the schedule recording is turned on. Turning on manual or motion record will stop the schedule record. Note: Make sure the correct date and time are set in the “setting” menu to ensure proper recording times for the schedule record. (See Page 21) PX301...
  • Page 17: Main Menu

    5. Once you have adjusted the cameras to your liking, press OK. This will exit the camera on/off menu and save your settings. 6. To exit the main menu, press the menu button. PX301...
  • Page 18: Record Menu

    4. Use the joystick to highlight the quality you would like. 5. Once the quality you would like is highlighted, press OK. This will exit the quality adjustment menu and save your settings. 6. To exit the menu, press the menu button. PX301...
  • Page 19: Trigger Record

    OK. modes must be turned off. 8. Once OK is selected (from turning schedule on or off), you will exit the schedule record menu and save your settings. 9. To exit the menu, press the menu button. PX301...
  • Page 20: Overwrite

    • Adjust the date and time • Adjust brightness • Change the video standard (AV type) • Set a screen saver • Adjust the alarm volume • Adjust the camera zoom • Format your SD card • Restore factory default settings PX301...
  • Page 21: Date And Time

    6. Once you have adjusted the brightness to your liking press OK, this will exit the brightness menu and save your settings. 7. To exit the menu, press the menu button. PX301...
  • Page 22: Av Out

    6. To exit the menu, press the menu button. SCREEN SAVER The PX301 allows you to set a screen saver to display on the monitor when footage is not recording or motion is not being detected. You have the option between a blank screen and five pre-installed pictures.
  • Page 23: Format The Sd Card

    6. To cancel and return to the settings menu, use the joystick to scroll to “No” and press OK. 7. Pressing OK for either option will exit the format menu and save your settings. 8. To exit the menu, press the menu button. PX301...
  • Page 24: Digital Zoom

    5. Once you have selected whether you would like to restore the default settings or not, press OK. This will exit the default menu and save your settings. 6. To exit the menu, press the menu button. PX301...
  • Page 25: Playback

    OK. 7. The footage will then begin to play with the date and time the footage was recorded displaying in the bottom right corner of the screen. Video Times Playback Screen PX301...
  • Page 26: Computer Playback

    PLAYBACK COMPUTER PLAYBACK The removable SD card allows you to open, save and play recorded files from your PX301 on your computer. All you need is a SD compatible card reader and a media player that supports .avi files. Insert SD card into your card reader...
  • Page 27 7. A prompt screen will appear asking if you would like to delete the recorded footage. Use the joystick to highlight yes and press the OK button. The footage will then delete and you will return back to the file list. PX301...
  • Page 28: Backing Footage Up On A Computer

    “Copy”. 7. On your computer, locate the area or folder that you would like to save the footage to, then right click and select “Paste”. 8. The footage will then be saved to that particular location on your computer. PX301...
  • Page 29: Troubleshooting

    • Make sure SD card is not locked by adjusting the tab on the side of the card Remote not working • Ensure that the remote control has batteries inserted into it and that those batteries are not dead • Try plugging the IR sensor in • Try using the remote control closer to the monitor PX301...
  • Page 30: Specifications

    Signal/Noise Ratio .....................>48dB Camera Bracket ......................Yes Operating Temperature .....................14°F ~ 104°F Operating Humidity ....................85% Mounting Hardware ....................Included Camera Power Input ....................9V DC 600mA Power Adapter Input ....................AC 100~240 50/60 Hz Dimensions .......................5.25" x 4.75" x 2'' (With Stand) Weight ........................0.75 lbs PX301...
  • Page 31: Monitor

    Operating Temperature .....................14°F ~ 120°F Operating Humidity ....................85% Housing Material .......................Aluminum and ABS Plastic Housing Color ......................Silver and Black Monitor Power Input ....................5V DC 2A Power Adapter Input ....................AC 100~240 V 50/60Hz Dimensions .......................4.25" x 3" x 0.75'' Weight ........................4 lbs PX301...
  • Page 32: Replacement Parts/Additional Accessories

    You may wish to add to your system and upgrade some components of it. Here are some items that can boost the effectiveness of your video security system. PRODUCT MODEL# DESCRIPTION Expand your system to a maximum of four cameras to monitor SP301-C more locations Alert all potential criminals of your security system and help SP100-ST deter crime with a window sticker Alert all potential criminals of your security system and help SGN100 deter crime with this durable aluminum sign For more information on additional accessories, parts and much more, please visit: www.defender-usa.com PX301...
  • Page 33: Drilling Template

    DRILLING TEMPLATE Cut along the dotted line for a drilling template. DRILL HOLES IN DRILL HOLES IN THE MARKED THE MARKED AREAS AREAS DRILL HOLES IN DRILL HOLES IN THE MARKED THE MARKED AREAS AREAS PX301...
  • Page 34 DISCLAIMER Defender does not endorse any of defender products for any illegal activities. Defender is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a Defender product is in use by the consumer.
