INSTALLATION & USER INSTRUCTIONS

Focal Point Fires plc.

Christchurch, Dorset BH23 2BT

Tel: 01202 499330

Fax: 01202 499326

www.focalpointfires.co.uk

e : sales@focalpointfires.co.uk

Please note : Except where otherwise stated, all rights,

including copyright in the text, images and layout of this

booklet is owned by Focal Point Fires plc. You are not per-

mitted to copy or adapt any of the content without the

prior written permission of Focal Point Fires plc.

ELECTRIC FIRE

MODELS COVERED BY THESE INSTRUCTIONS

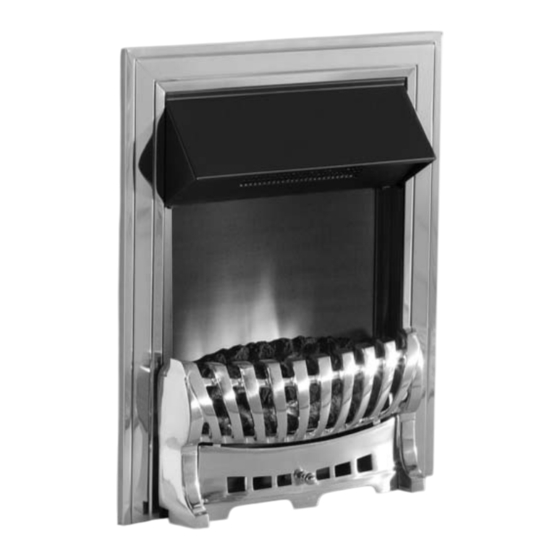

BLENHEIM ELECTRIC FIRE

LULWORTH ELECTRIC FIRE

ELEGANCE ELECTRIC FIRE

TRADITIONAL ELECTRIC FIRE

LULWORTH

All instructions must be handed to the user for

F500113

F500011

F500306

F500346

ELEGANCE

BLENHEIM

safekeeping.

Revision F - 04/12

2012 Focal Point Fires plc.

GB IE

Need help?

Do you have a question about the BLENHEIM and is the answer not in the manual?

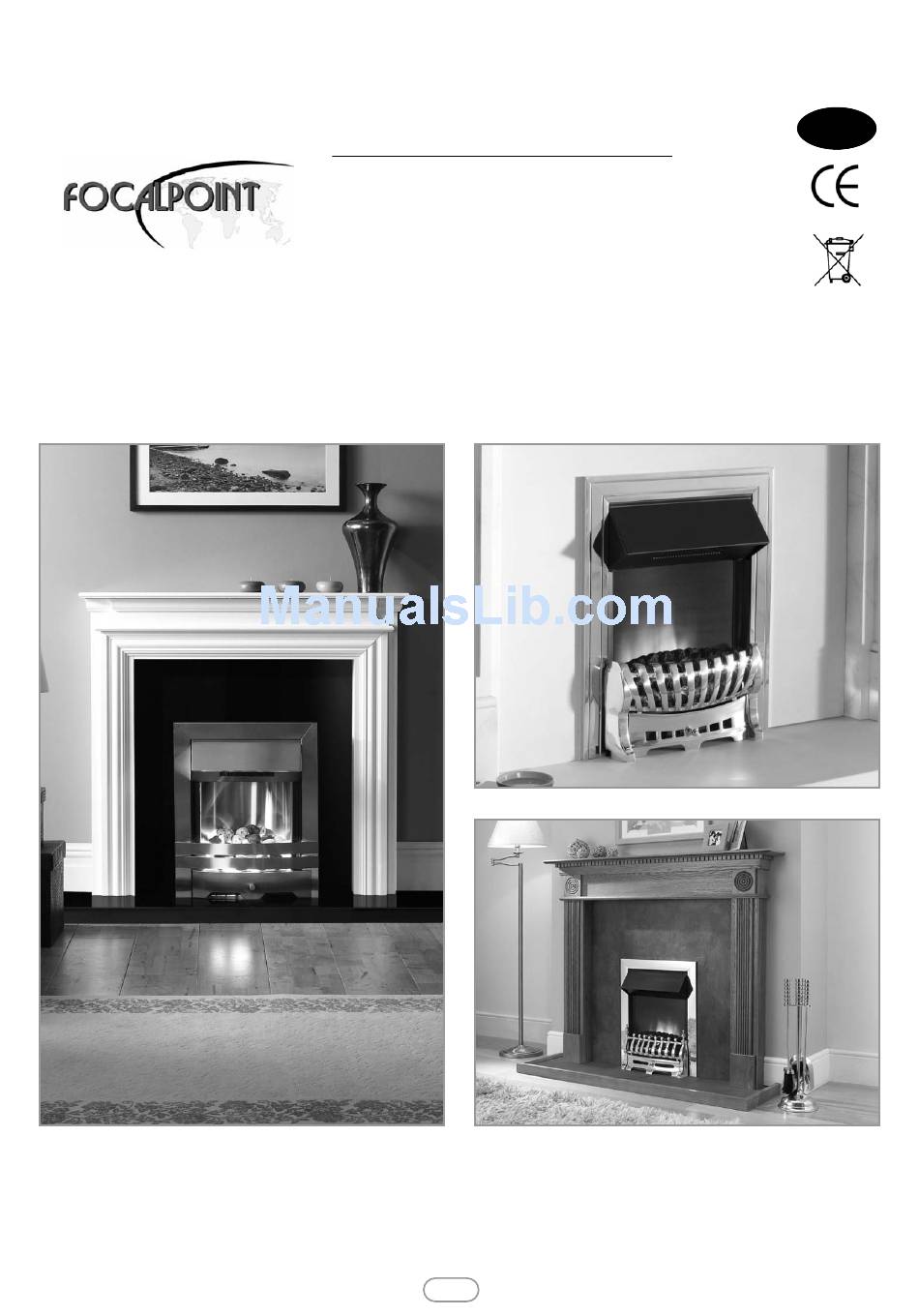

Page 1 INSTALLATION & USER INSTRUCTIONS ELECTRIC FIRE GB IE MODELS COVERED BY THESE INSTRUCTIONS BLENHEIM ELECTRIC FIRE F500113 LULWORTH ELECTRIC FIRE F500011 ELEGANCE ELECTRIC FIRE F500306 TRADITIONAL ELECTRIC FIRE F500346 Focal Point Fires plc. Christchurch, Dorset BH23 2BT Tel: 01202 499330 Fax: 01202 499326 www.focalpointfires.co.uk...
Page 2 DESCRIPTION Heater main body Decorative fireframe (Blenheim, Traditional and Elegance models) Fire front casting with ashpan door (Blenheim, Traditional and Elegance models) Decorative fireframe + integral front (Lulworth models only) Orange coloured moulded fuel bed (Blenheim, Traditional and Elegance models)
Page 3 Blenheim, Traditional and Elegance models : If not pre-fitted, the clip-on frame pieces should be hooked over the outer edges of the fire- frame, and pushed firmly home. The sides should be fixed first, followed by the top bar, which overlaps the sides. Push firmly home. A plastic protective film may be applied to the outside of the frame and should be removed at this stage.
Page 4 Disconnect the appliance from the mains. Blenheim, Traditional & Elegance models : Withdraw the fuel bed by pulling it gently towards you. Lulworth models : Remove the fuel bed by removing the frame, pebbles and removing the screw attaching the fuelbed to the appliance ‘shelf’.
