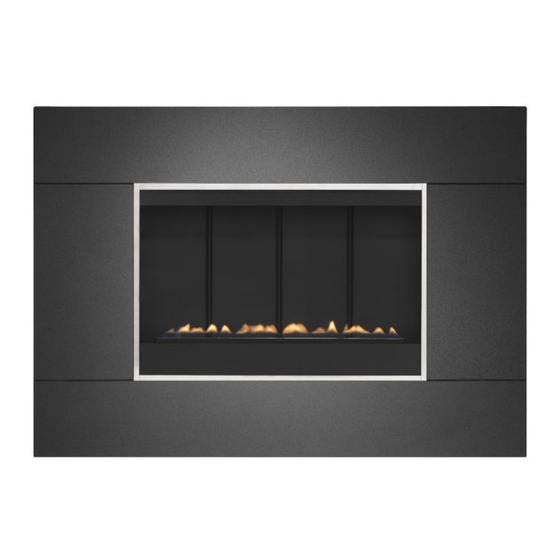

FLUELESS GAS FIRE
INSTALLATION AND USER INSTRUCTIONS
All instructions must be handed to user for safekeeping
Revision C - 08/11
Country(s) of destination - GB/IE
Focal Point Fires plc, Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e-mail: sales@focalpointfires.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FocalPoint Purist
Summary of Contents for FocalPoint Purist
- Page 1 PURIST - SERIF FLORENCE - OXFORD FLUELESS GAS FIRE INSTALLATION AND USER INSTRUCTIONS All instructions must be handed to user for safekeeping Revision C - 08/11 Country(s) of destination - GB/IE Focal Point Fires plc, Christchurch, Dorset BH23 2BT Tel: 01202 499330 Fax: 01202 499326 www.focalpointfires.co.uk...
- Page 2 Purist Serif Oxford Florence Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.
-
Page 3: Table Of Contents
I N S T A L L A T I O N I N S T R U C T I O N S Section Contents Page No. Section Contents Page No. Important Notes Testing and Commissioning Appliance Data Operating the Appliance Installation Requirements Spark Failure 3.1 Room Sizing... -
Page 4: Appliance Data
APPLIANCE DATA APPLIANCE DATA Purist & Serif models Florence & Oxford models Gas Group Gas Group G20 Natural Gas CAT I2H G20 Natural Gas CAT I2H Inlet Pressure Inlet Pressure 20 mbar (+/- 2.0mbar) 20 mbar (+/- 2.0mbar) Max Energy Input... -
Page 5: Ventilation
SITE REQUIREMENTS (continued) Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made materials impervious to flame. If in doubt refer to the material manufacturer for further information before pro- ceeding with installation. -
Page 6: Unpacking The Appliance
QUANTITY DESCRIPTION Firebox and burner assembly Set of manufacturers instructions Decorative stone facia panel (Purist & Serif models) Decorative glass facia panel with 4 self-adjusting corner columns (Florence models) Decorative glass facia panel (Oxford models) Screw and wall plug pack... -
Page 7: Checking The Burner
For further guidance for wall fixing in timber framed buildings, refer to the current edition of IGE/UP/7. Purist & Serif models: Mark the positions shown as “Fixing points model L23” on the wall. Florence & Oxford models: Mark the positions shown as “Fixing points model P23”... -
Page 8: Testing And Commissioning
TESTING AND COMMISSIONING Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS6891. OPERATING THE APPLIANCE The pilot is visible behind the left hand side of the burner. The control knob is located on the lower right hand side of the outer ‘OFF’... -
Page 9: Fitting The Decorative Frame
FITTING THE DECORATIVE FRAME ASSEMBLY Remove any protective packaging, and remove any protective film that may be present on the frame. Purist & Serif models: The frame is hung onto the firebox via the two upper hanging brackets and then... -
Page 10: Servicing The Burner Unit
10.0 SERVICING (continued) 4. Inspect the burner and the catalyst and clean if necessary with a soft brush. 5. Disconnect the gas supply. 6. Detach the burner front cover plate by removal of the four retaining screws. Undo the four screws retaining the burner support brackets to the base and rear of the firebox. -
Page 11: Testing For Firebox Leakage
10.3 CATALYST (continued) Most analysers display carbon dioxide (CO2) concentrations in percentage (%) terms and carbon monoxide concentration in parts per million (ppm) terms. In order to calculate the combustion ratio for the appliance (CO/CO2) it is first necessary to express both gas concentrations in terms of percentage. -
Page 12: User Instructions
USER INSTRUCTIONS Section Content Page No Important Notes Clearances to Combustibles Ventilation & Room Size Operating Instructions Combustion Monitoring System Cleaning Servicing List of Replacement Parts IMPORTANT NOTES The installation and Servicing of this fire MUST only be carried out by a competent person (such as a GAS SAFE registered fitter) in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes of Practice, the Building Regulations and the manufacturer's instructions. -
Page 13: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made materials impervious to flame. If in doubt refer to the material manufacturer for further information before pro- ceeding with installation. -
Page 14: Operating Instructions
GAS SAFE registered installer. The Installation instructions carry full servicing details for the use of the installer. LIST OF SPARE PARTS PART NO. ITEM F960002 Glass door assembly (Purist/Serif models) F960001 Glass door assembly (Florence & Oxford models) F730023 Pilot assembly F730042...
