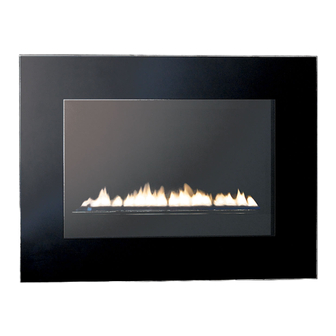

FocalPoint L23 Cheshire Installation & User's Instructions
Wall mounted high efficiency gas fire
Hide thumbs
Also See for L23 Cheshire:
- Installation and user instructions manual (15 pages) ,
- Installation and user instructions manual (16 pages) ,
- Installation & user's instructions (14 pages)
Table of Contents
Advertisement
INSTALLATION & USER INSTRUCTIONS
WALL MOUNTED HIGH EFFICIENCY GAS FIRE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
L23 LIBRA, L23 CHESHIRE
P23 ENIGMA
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, including copyright
in the text, images and layout of this booklet is owned by Focal Point Fires
plc. You are not permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS
L23 CHESHIRE - NG
L23 PURIST - NG
L23 SERIF - NG
L23 SHAFTESBURY - NG
P23 MONET - NG
P23 ENIGMA - NG
P23 EBONY - NG
P23 OXFORD - NG
L23 LIBRA - NG
(BLACK)
L23 SERIF
L23 CHESHIRE
(SILVER)
L23 SHAFTESBURY
P23 EBONY
All instructions must be handed to the user for
safekeeping. The products covered by this booklet
are protected under patent GB2275331C.
1
GB IE
F500095
F500188
F500189
F500350
F500071
F500363
BS EN 14829 : 2007
F500229
KM579167
F500349
F500426
L23 PURIST
P23 MONET
P23 OXFORD
Revision E - 11/11
©
2011 Focal Point Fires plc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FocalPoint L23 Cheshire
Summary of Contents for FocalPoint L23 Cheshire
- Page 1 INSTALLATION & USER INSTRUCTIONS WALL MOUNTED HIGH EFFICIENCY GAS FIRE GB IE MODELS COVERED BY THESE INSTRUCTIONS L23 CHESHIRE - NG F500095 L23 PURIST - NG F500188 L23 SERIF - NG F500189 L23 SHAFTESBURY - NG F500350 Focal Point Fires plc.
-
Page 2: Table Of Contents
GB IE I N S T A L L A T I O N I N S T R U C T I O N S Section Contents Page No. Section Contents Page No. Important Notes Testing and Commissioning Appliance Data Operating the Appliance Installation Requirements Operating pressure... -
Page 3: Appliance Data
GB IE 2.0 APPLIANCE DATA Operating Pressure Max Energy Input (kW) Min Energy Input (kW) Country of (±2.0 mbar) Model Gas Type Destination G25 G30 G31 Gross Gross I 2H All P23 models GB - IE Natural I 2H All L23 models GB - IE Natural 1.15... -
Page 4: Ventilation
Set of manufacturers instructions Decorative stone facia panel (Purist & Serif models) Decorative black glass facia assembly (L23 Cheshire ,L23 Libra, P23 Oxford & P23 Ebony models) Decorative metal facia panel (P23 Monet models) Decorative silver glass facia panel (P23 Enigma, Cheshire silver & Shaftesbury models) -
Page 5: Gas Supply Routes
GB IE 6.0 GAS SUPPLY ROUTES There are four possible entry points for the gas supply pipework to enter the appliance firebox. These entry points are ‘knock out’ type holes. Non-concealed gas connections may be made using the entry points at either end of the firebox or the one in the bottom of the firebox. -
Page 6: Testing And Commissioning
GB IE 7.0 FIXING THE APPLIANCE (CONTINUED) lower wall plugs through the corresponding fixing holes in the lower part of the back panel. Do not tighten fully. Before tightening the wall mounting screws fully, at this stage it is recommended to check the horizontal alignment of the appliance with a spirit level, as small adjustments can still be made if necessary. -
Page 7: Fitting The Decorative Frame
GB IE 8.3 FITTING THE DECORATIVE FRAME ASSEMBLY Remove any protective packaging, and remove any protective film that may be present on the frame. Purist, Serif, Monet and Ebony models: The frame is hung onto the firebox via the two upper hanging brackets and then secured to the firebox via the two lower fixing bolts, which are inserted through the holes in the lower frame... -
Page 8: Servicing The Burner Unit
GB IE 10.0 SERVICING - CONTINUED 10. Turn on the gas supply and leak test. Check pilot and burner for good ignition. 11. Refit the glass door assembly, ensuring correct orientation and a good seal. 12. Refit the decorative facia/frame assembly as detailed in section 8.3. 13. -
Page 9: Testing For Firebox Leakage
GB IE 10.4 TESTING FOR FIREBOX LEAKAGE Appliances that are several years old or have been extensively dismantled should be checked for soundness. It is important that all the products of combustion pass through the catalytic converter at the top of the firebox before leaving the appliance. The firebox is heated by light- ing for a few minutes to provide a flow through the firebox. - Page 10 GB IE U S E R I N S T R U C T I O N S Section Content Page No Important Notes Clearances to Combustibles Ventilation & Room Size Operating Instructions Combustion Monitoring System Cleaning Servicing Battery replacement (handset) - LED models only List of Replacement Parts 10.0 Installation Details...
- Page 11 GB IE 2.0 CLEARANCES TO COMBUSTIBLES - (CONTINUED) Clearances to combustible materials (continued) Under no circumstances should any electrical equipment e.g. plasma/LCD screen TV sets etc. be positioned on the wall above the appliance. The appliance is designed to be wall mounted alone and not in conjunction with any type of combustible fire surround. No combustible shelves should be positioned on the wall above the appliance.
- Page 12 5.0 COMBUSTION MONITORING SYSTEM GB IE This fire is fitted with a combustion monitoring safety device (ODS). If the appliance shuts down during use for no apparent rea- son then several reasons may be suspected. If a door or window has been opened creating a draught, then pilot disturbance could be the problem and removal of the draught should resolve this.
- Page 13 10.0 INSTALLATION DETAILS GB IE Name & contact details of installer : Supplied by : Installer GAS SAFE registration No : Model : Fire serial No. : Date installed : 11.0 SERVICE HISTORY Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer Waste electrical products should not be disposed of with household waste.
