3. Substantial deviations from the suggested operating range, in either direction, if

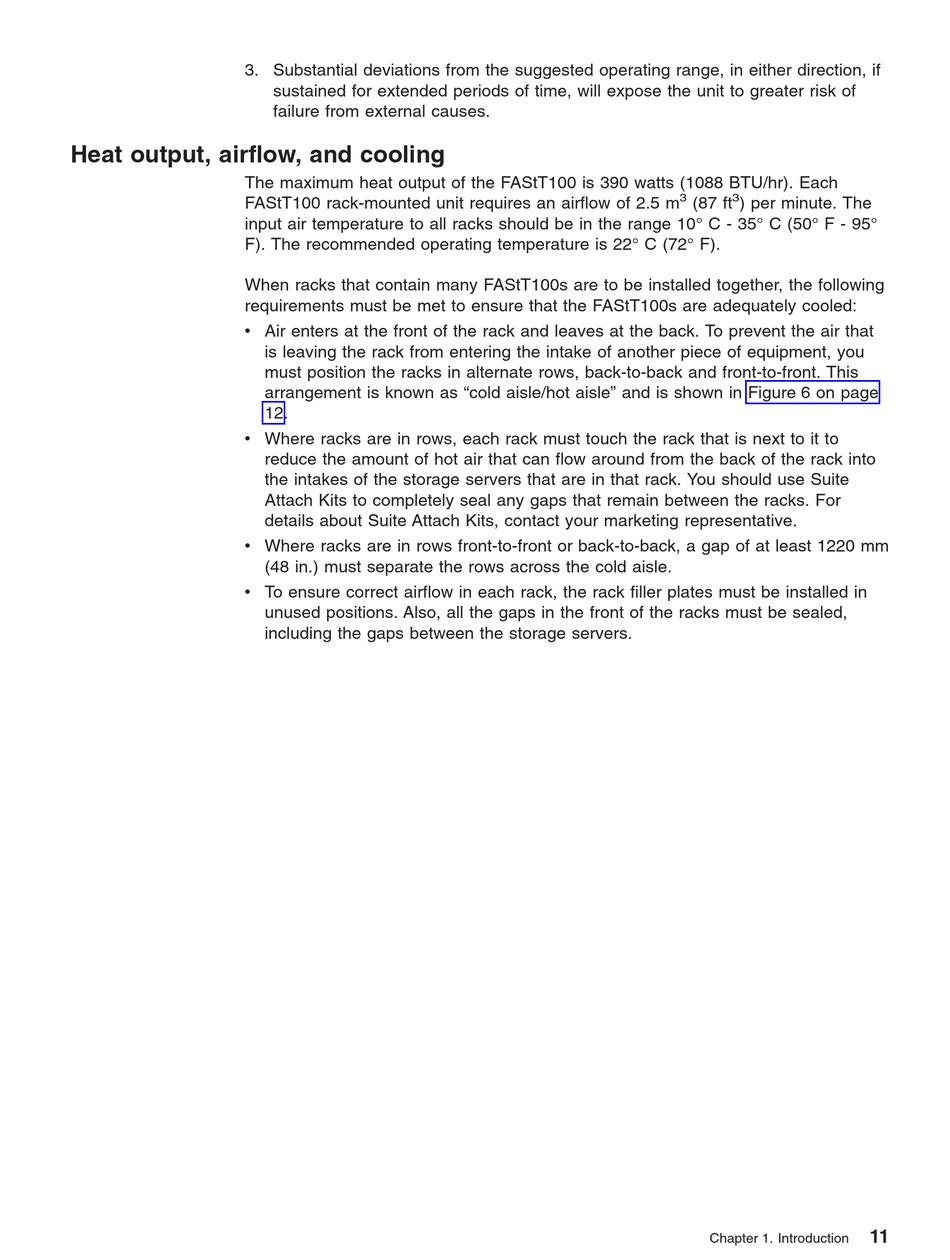

Heat output, airflow, and cooling
The maximum heat output of the FAStT100 is 390 watts (1088 BTU/hr). Each
FAStT100 rack-mounted unit requires an airflow of 2.5 m
input air temperature to all racks should be in the range 10° C - 35° C (50° F - 95°
F). The recommended operating temperature is 22° C (72° F).
When racks that contain many FAStT100s are to be installed together, the following
requirements must be met to ensure that the FAStT100s are adequately cooled:
v Air enters at the front of the rack and leaves at the back. To prevent the air that
v Where racks are in rows, each rack must touch the rack that is next to it to
v Where racks are in rows front-to-front or back-to-back, a gap of at least 1220 mm
v To ensure correct airflow in each rack, the rack filler plates must be installed in
sustained for extended periods of time, will expose the unit to greater risk of
failure from external causes.
is leaving the rack from entering the intake of another piece of equipment, you
must position the racks in alternate rows, back-to-back and front-to-front. This
arrangement is known as "cold aisle/hot aisle" and is shown in Figure 6 on page
12.
reduce the amount of hot air that can flow around from the back of the rack into
the intakes of the storage servers that are in that rack. You should use Suite
Attach Kits to completely seal any gaps that remain between the racks. For
details about Suite Attach Kits, contact your marketing representative.
(48 in.) must separate the rows across the cold aisle.
unused positions. Also, all the gaps in the front of the racks must be sealed,
including the gaps between the storage servers.
3
3
(87 ft
) per minute. The
Chapter 1. Introduction
11
