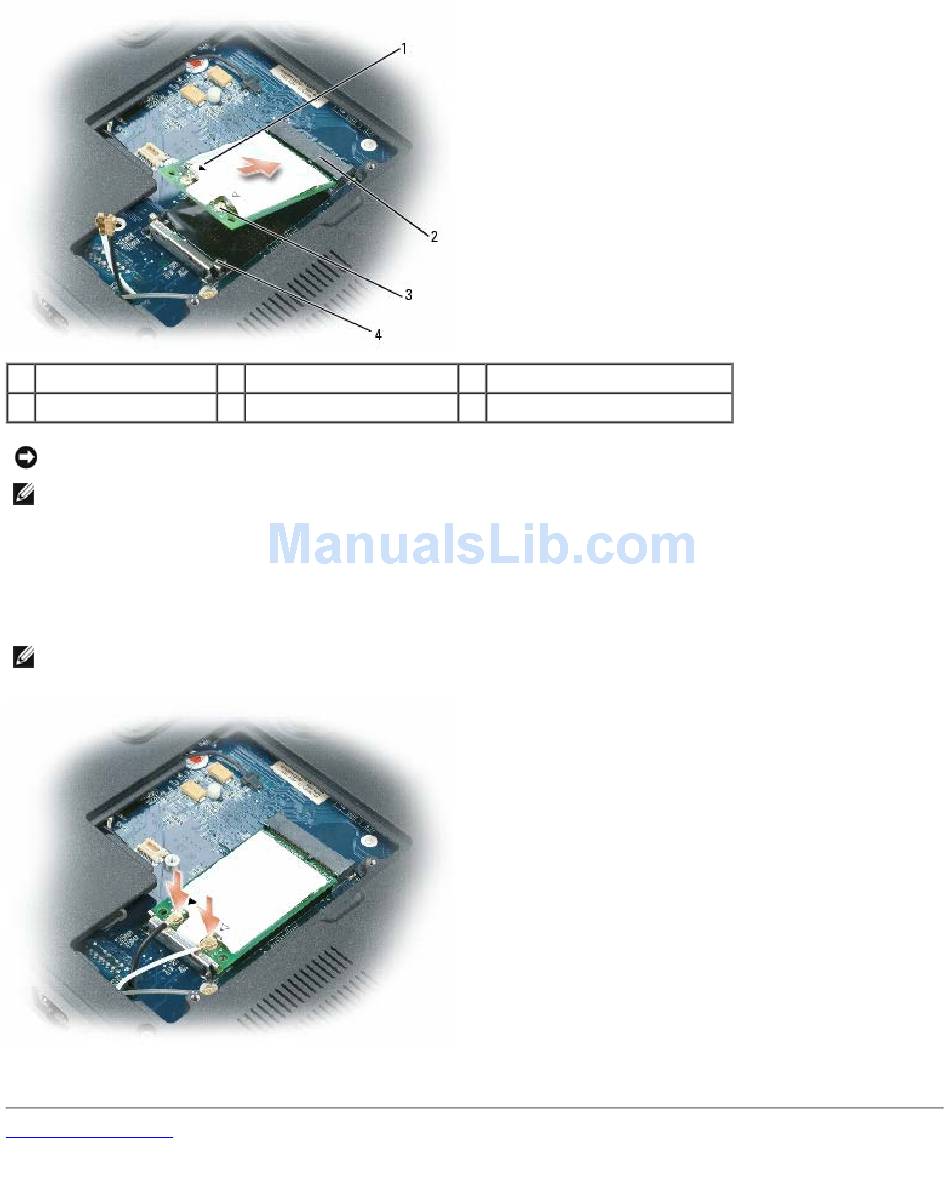

triangles (2)

securing clips (2)

NOTICE:

To avoid damaging the Mini-Card, never place cables under the card.

NOTE:

If you are installing a Mini-Card for the first time, you will find a clear plastic protective sleeve on each antenna

cable connector. Before you connect the antenna cables to the Mini-Card, slide the sleeves off of the cable connectors.

b. Connect the antenna cables to the antenna connectors on the Mini-Card by matching the color of the cable to

the color of the triangle beside the connector. Connect the main antenna cable (white) to the antenna connector

with the white triangle. Connect the auxiliary antenna cable (black) to the antenna connector with the black

triangle.

NOTE:

If your computer has a gray cable, connect it to the connector with the gray triangle, if one is available on your

card.

6. Replace the Mini-Card cover.

Back to Contents Page

Mini-Card connector

antenna connectors (2)
