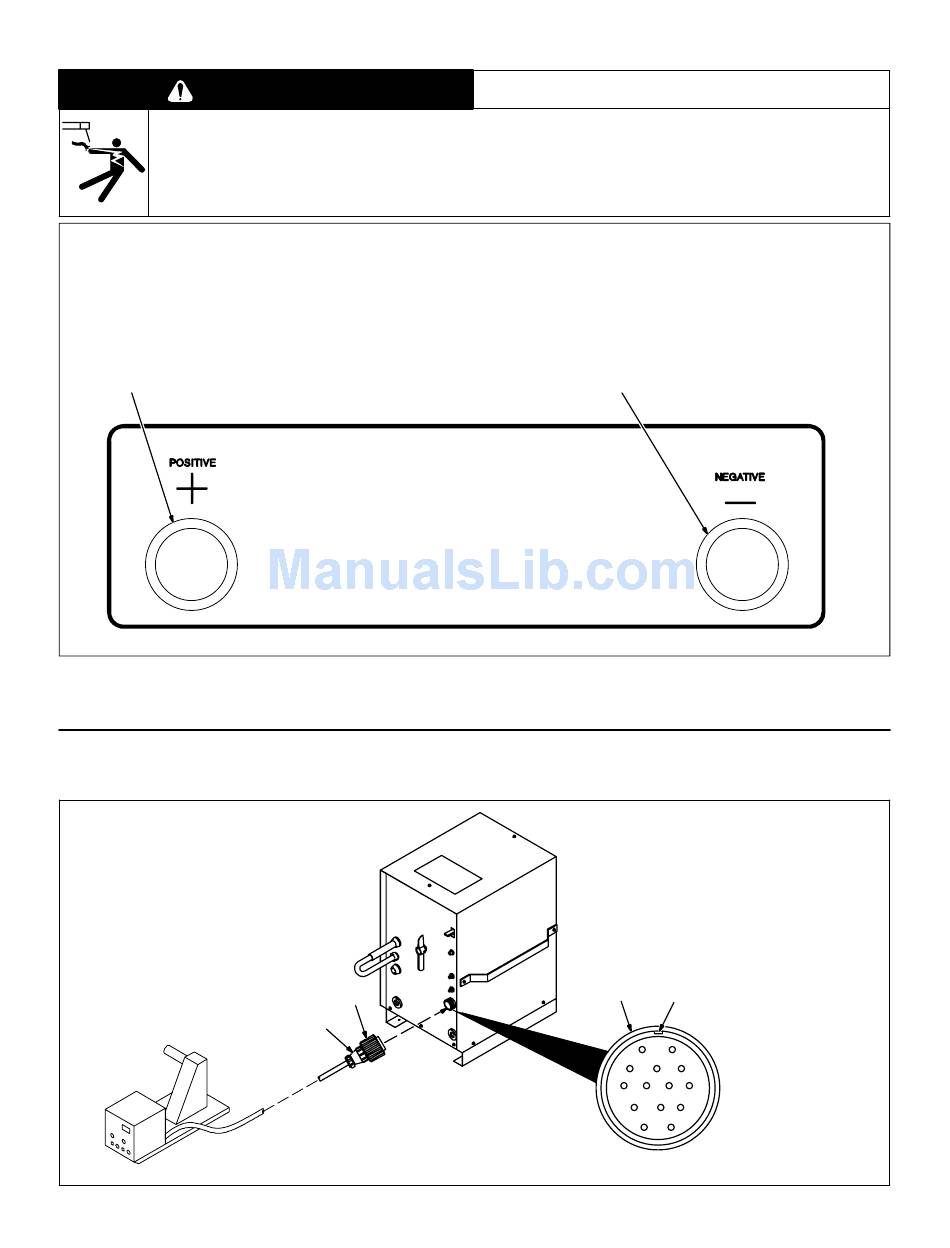

3-4. Connecting To Weld Output Receptacles

WARNING
ELECTRIC SHOCK can kill; ARCING can burn skin or damage electrical equipment.
•
Do not touch live electrical parts.
•
Turn Off welding power source before making any weld output connections.
•
Do not change position of welding cable connectors while welding.
•
Be sure connectors are secure in receptacles before welding.
1

3-5. Remote 14 Receptacle Information And Connections

OM-293 Page 6
Figure 3-6. Weld Output Connections
4
3
Figure 3-7. Remote 14 Connections
1 Positive (+) Weld Output
Receptacle
2 Negative (−) Weld Output
Receptacle
For Electrode Positive (DCEP),
connect work cable to negative (−)
receptacle and electrode cable
from wire feeder to positive (+)
receptacle.
2
For Electrode Negative (DCEN),
reverse cable connections.
1 Remote 14 Receptacle RC3
(See Table 3-2)
2 Keyway
3 Plug
4 Threaded Collar
To connect to receptacle, align
keyway, insert plug, and tighten
threaded collar.
1 2
A J
K
I
B
C L N
H
M
D G
F
E
