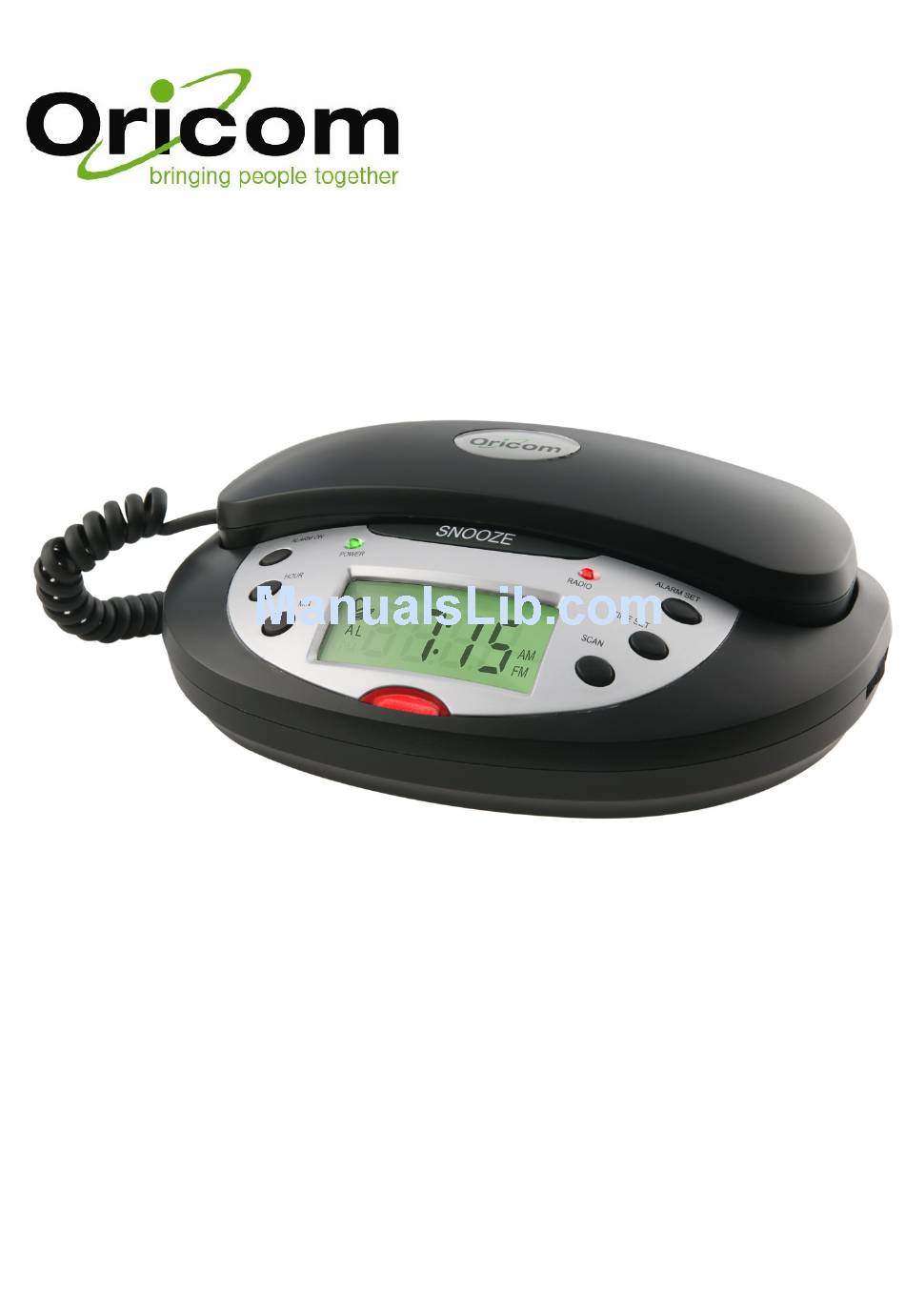

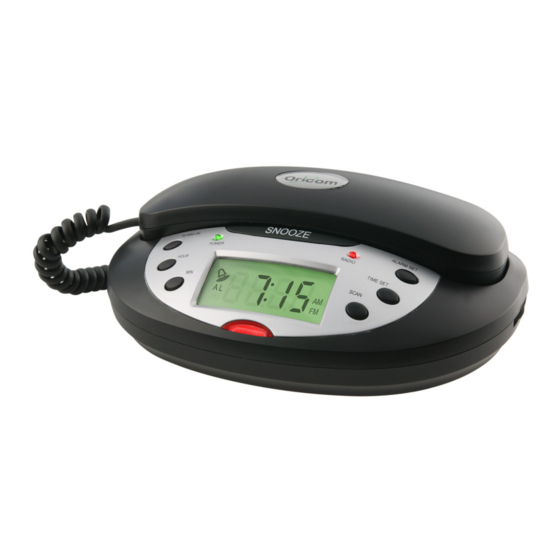

  • Page 1 Telephone Clock Radio TCR10 User guide Please Keep for future reference...

  • Page 2: Table Of Contents

    General Information Operating Functions Installation ... 5 Safety information Check contents of pack Connecting the telephone handset Insert batteries Connect Mains Power Supply Connecting the telephone Recall button Setting the Time Setting the FM antenna Operation ... 6 Setting the clock alarm Setting alarm on &...

  • Page 3: General Information

    1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3(5) devices with a REN of 1 (RN of 1) with no degradation to the product’s performance.

  • Page 4: Operating Functions

    15 Radio LED 16 Radio On/Off button 17 Time Set button 18 Alarm Set button 19 Hook switch 20 Radio volume Rear of the telephone base unit power connection FM antenna Radio/Buzzer alarm switch Connection for handset curly cord Telephone cable connection...

  • Page 5: Installation

    Connect the AC adaptor to the power socket and plug the cable into the jack marked DC 12V on the back of the telephone. The power LED comes on to indicate the power supply is good. The batteries should always be installed, even when using the mains power supply, to protect against power interruption.

  • Page 6: Connecting The Telephone

    Connecting to the telephone socket Connect the telephone cable supplied to the telephone wall socket and to the socket marked with a “PHONE LINE” symbol on the rear of the base unit. Recall button You will use the Recall button when using your network operator’s services such as call waiting etc.

  • Page 7: Setting Alarm On & Off

    Use the Radio Volume Switch located at the right side of the unit for adjusting the radio volume. Your TCR10 has both FM and AM radio reception. Press the RADIO FM/AM button to select FM or AM radio stations. To select the radio channel frequency, use the UP/HOUR button to increase the radio frequency or you use the DOWN/MIN button to decrease the radio frequency.

  • Page 8: Using The Telephone

    Using the telephone The TCR10 telephone is used like any conventional telephone and works with all modern telephone exchanges using the tone dialling system. Lift the handset and wait until you hear dial tone. The keypad will illuminate. Dial the required telephone number.

  • Page 9: Last Number Redial

    LO (soft) to adapt the ringer volume to your requirements. Should you not want to be disturbed, select OFF (off). The TCR10 also has a visual ring indicator, the light under the display will come on whenever the phone rings.

  • Page 10: Using Phone On A Pbx

    PBX Message waiting indicator The message indicator turned on the TCR10 is activated by some PBX’s. The TCR10 offers two types of PBX message wait indication. Use the Message Setting Switch located in the battery compartment to select the setting to suit your PBX the default setting is OFF.

  • Page 11: Important Information

    If the fault is still present, connect another telephone (if available) to the telephone socket. The results will show you whether the fault lies with this unit or with the telephone line. If the product is working correctly the fault is on the telephone line.

  • Page 12: Warranty Information

    NOTE: The warranty does not extend to damage caused by misuse, negligence, excessive voltage, faults on the telephone line or lightning. This guarantee in no way affects your statutory rights. Full details of the warranty are contained in the enclosed warranty card.
