Oricom TP88 User Manual

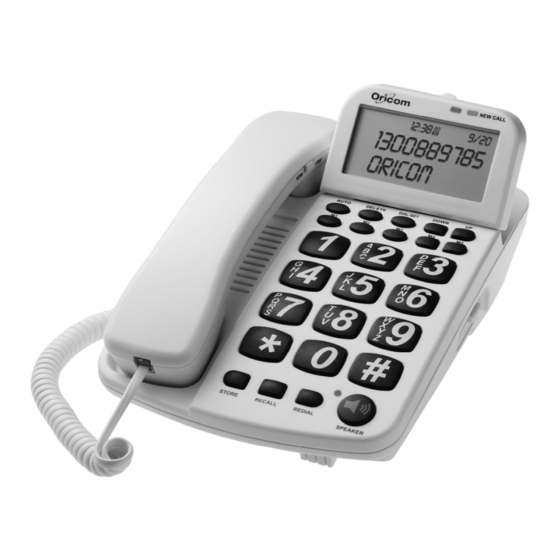

Big button speakerphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

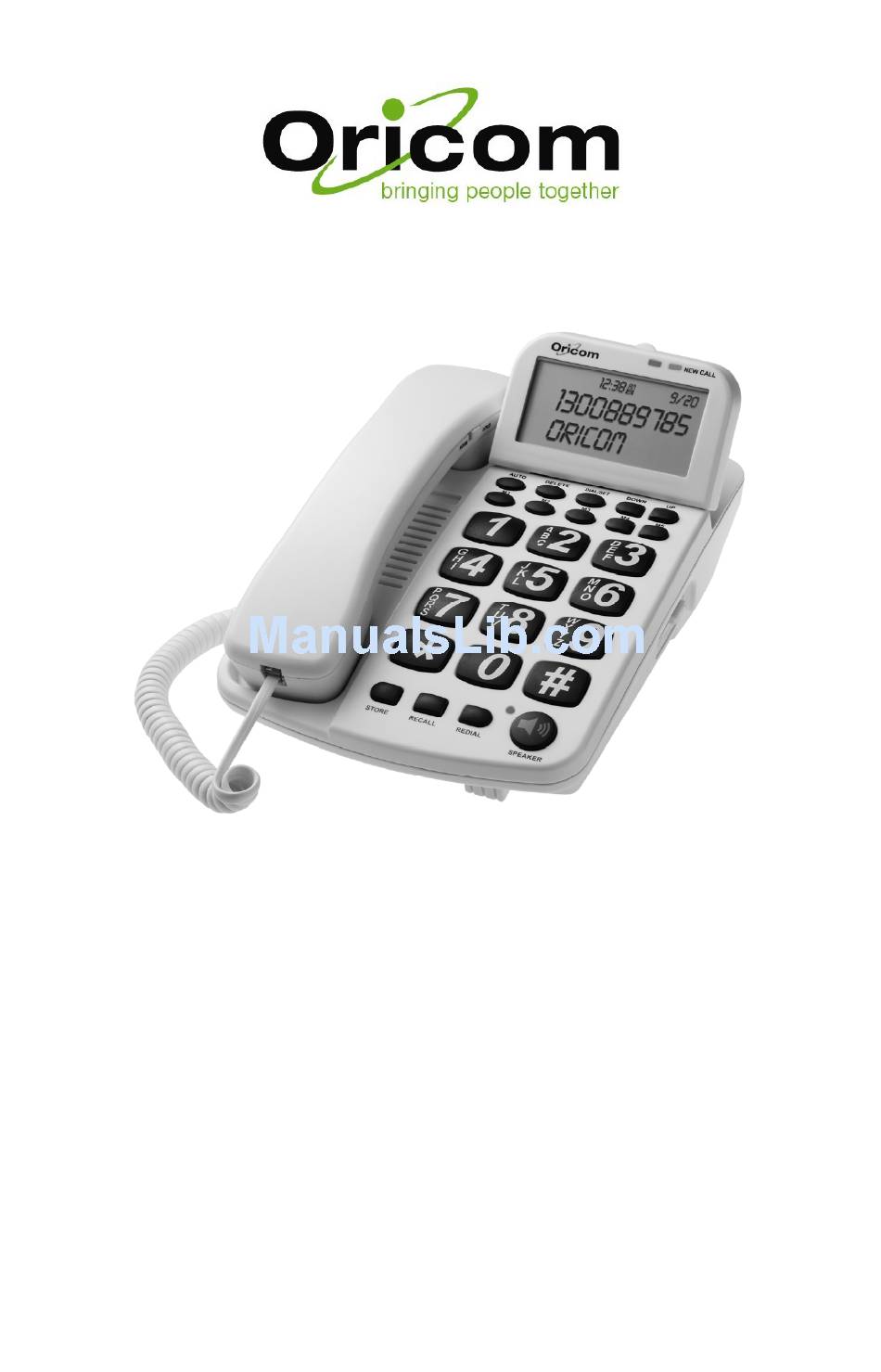

TP88 Big Button Speakerphone
Keep this user guide
for future reference

Advertisement

Table of Contents
loading

Related Manuals for Oricom TP88

Summary of Contents for Oricom TP88

  • Page 1 TP88 Big Button Speakerphone Keep this user guide for future reference...

  • Page 2: Table Of Contents

    CONTENTS Warnings ……………………………………………………………… Location of Controls…………………………………………………………………………… Features………………………………………………………………………………………... PARTS LIST …………………………………………………………………..………………. INSTALLATION ……………………………………………………………….………………. Connecting Your Telephone ………………………………………………………… Choosing Tone or Pulse Dialing……………………………………………………… Using the Ringer HI/LOW/OFF Switch ……………………………………………… CALLER ID PROGRAMMING INSTRUCTIONS ………………………………………….. Setting the Contrast, Display Language, Area Code ………………………………. Setting the Time and Date………………………………………………………….….

  • Page 3: Warnings

    Warnings • Do not use your telephone during an electrical storm thunderstorm as it is possible to get an electric shock. Refer to information contained in the White pages directory. • The earpiece of the handset may attract small metal objects such as staples and pins.

  • Page 4: Location Of Controls

    Location of Controls 1. Store Button - Used to store numbers into the speed dials. 2. Recall/ Flash Button – Used to access telephone dialing features like call waiting. 3. Redial Button - Press for last number redial. 4. Speaker Button- Press to use the speakerphone. 5.

  • Page 5: Features

    15. Handset Hanger – Use to put handset on hold if wall mounted 16. Volume Switch - Use to adjust the handset receiver volume (NORM or LOUD). 17. Delete Button - Press twice to erase a record. 18. Phone Book – Used to access the 50 Name and number memories 19.

  • Page 7: Telephone Operation

    TELEPHONE OPERATION Answering and making Calls Using the Handset The TP88 is used like any conventional phone, in addition, the speaker phone keeps your hands free, which makes phoning considerably easier for you. When the telephone rings, allow it to ring twice so caller ID information is received.

  • Page 8: Last Number Redial

    3. Press any number on the dial pad that you wish to store the number in ([0] to [#]). The number is now stored. 4. Repeat steps 1 to 3 to store other numbers. Note: There is a time-out for storing numbers. If the TP88 times out before the number is stored, try again. MEMORY D AL NG...

  • Page 9: Making Calls From The Two-Touch Memory

    Making Calls from the Two-Touch Memory Follow the instructions below to dial a number from the two-touch memory: 1. Pick up the handset, or press the SPEAKER button to get a dial tone. 2. Press the AUTO button, and then the dial pad button where the number is stored. 3.
  • Page 10 To change items, always use the UP or DOWN button. If you want to leave the menu mode at any time, press DELETE. SELECT LAUGUAGE The TP88 is defaulted to select the “English” language. Twelve seconds after the batteries are installed. To change simply:- 1. Press DIAL/SET use UP or DOWN to select: SELECT LANGUAGE.
  • Page 11 LCD CONTRAST Press DIAL/SET use UP or DOWN to select: CONTRAST ADJUST, press SET and use UP/DOWN to select among 5 degrees, which you prefer. NOTE: The default setting is 3. USING THE NAME AND NUMBER PHONE BOOK Adding Names and Numbers You can store 50 names and Numbers in the phone book.
  • Page 12 EDITING PHONE BOOK ENTRIES 1. Press DIAL/SET use UP or DOWN to select: PHONEBOOK EDIT. Press SET and input the first character of name you wish to edit. You can then view the corresponding telephone numbers by pressing SET again. If no character input, you could use UP and DOWN to view all the entries in sequence.

  • Page 13: Caller Id Operation

    Dialing Numbers from the Caller ID Memory The TP88 allows you to dial a phone number stored in its caller ID memory. This is the “call back” feature of this phone. To dial a number from caller ID memory, do the following: 1.

  • Page 14: New Call Led Indicator

    DESK AND WALL MOUNTING Your TP88 can be mounted to a standard wall phone plate. lf you do not have a modular wall phone plate installed, consult with your phone company or licenced installer to get one, or install without a wall plate. NOTE: Screws and wall anchors are not supplied.
  • Page 15 1. HANDSET CLIP - When the phone is mounted on the wall, the HANDSET CLIP must be adjusted so it will hold the HANDSET. A. SLIDE OUT MOUNTING BRACKET: 2. Insert the HOOKS of the MOUNTING BRACKET into the matching slots on the back of the BASE UNIT (as shown).
  • Page 16 Wall Mounting without a Modular Wall Phone Plate 1. Locate a wall stud. lf the selected area does not have a wall stud directly behind it, use dry wall expanders or a similar type fastener. 2. Drill 2 6mm holes 100 mm apart, as per template at the end of this user guide. 3.

  • Page 17: Troubleshooting

    TROUBLESHOOTING No dial tone/phone will not dial out. • Check all telephone cord connections or try another wall socket. Can’t hear the phone ring. • Verify the ringer switch is not set to “Off.” Other party cannot hear you. • Ensure handset cord is connected properly. Display showing erroneous figures OR Display does not work as intended.
  • Page 18 Note: Caller ID memory loss as well as one and two-touch memory loss may occur when resetting. Therefore, please make sure that you record all important information before you proceed with the reset. Handset falls out of phone base when wall mounted Handset clip was not installed properly for wall use LINE ERROR appears on the LCD panel •...
  • Page 19 This warranty in no way affects your statutory rights. Full details of the warranty are contained in the enclosed warranty card. For further information about the Oricom range of products please visit our website or contact us using the information below. REGISTER YOUR PRODUCT ON LINE.
