Amplified speaker Phone TP110
User guide keep for future reference

Advertisement

Table of Contents
loading

Related Manuals for Oricom TP110

Summary of Contents for Oricom TP110

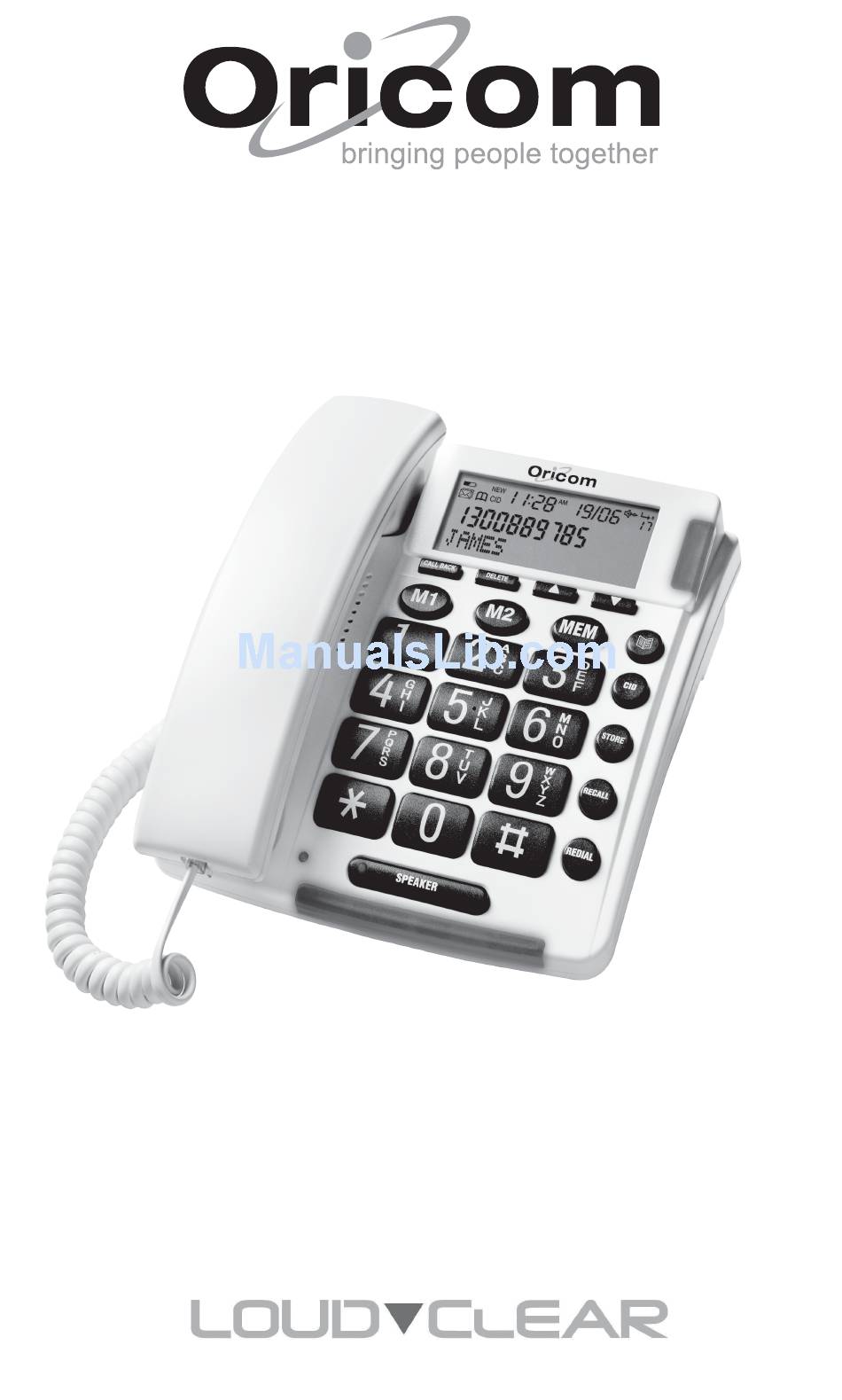

  • Page 1 Amplified speaker Phone TP110 User guide keep for future reference...

  • Page 2: General Information And Warnings

    1 General Information and Warnings • The telephone is designed for indoor use only. Do not install the telephone in areas where there is the risk of an explosion, excessive exposure to smoke, dust, vibrations, chemicals, moisture and heat. • Do not use your telephone during an electrical thunderstorm as it is possible to get an electric shock.

  • Page 3: Location Of Controls

    2 Location of controls Telephone Line Jack Hook switch Handset Holder Delete Button Call Back Button Memory Buttons (M1, M2) Speaker Keypad Handset volume control 10. Receiver volume LED 11. Flash time Switch 12. New Call LED 13. Display N13134 The A-Tick symbol indicates that this product complies with all current Australian ACMA standards.

  • Page 4: Installation

    3 Installation 3.1 Installing batteries (supplied) in the phone You must install 4 AA Alkaline batteries (supplied) in the phone base, or the display and Caller ID will not work. Warnings Before opening the battery compartment, make sure the telephone is disconnected from the telephone line and the mains power supply.
  • Page 5 3.3 Wall Mounting Method A. To fit to an existing telephone wall plate with modular connector simply, 1. Press and lift out the handset holder on base. Rotate it 180° , and snap it into place (see A) so it will hold the handset in place when the phone is mounted on the wall.

  • Page 6: Basic Settings

    4 Basic settings 1. After installing the batteries, the display should flash the word ENGLISH”. If not press and hold 2. Select the desired language using 3. Select the desired contrast setting (2=Default) using DELETE button. 4. Set the hour (00-23) using 5.
  • Page 7 5.1 Making a call 1. Pick up the handset or press SPEAKER button (the speaker LED will light) and wait for a dial tone. 2. Dial the number you wish to call. The display will show the number that you are dialling. If you dial a number over 14 digits long, it will show the last 14 digits only.

  • Page 8: Volume Control

    5.6 How To Turn on Telstra call waiting (Australia) You can use the RECALL button to answer a second call while you are on the phone. However this service will need to be turned on. For example to turn on Telstra’s Call Waiting service: 1.

  • Page 9: The Phone Book

    This unit is compatible with most inductively coupled hearing aids on the market. However due to the wide range of hearing aids available we cannot guarantee that the TP110 will function error free with every model. The Phone Book The Phone Book will store 32 telephone numbers (22 digits max) and their associated names (16 characters max) with entries arranged alphabetically.

  • Page 10: Using The Phone Memories

    6.2.2 Dialling from the Phone Book 1. Press 2. Scroll to the required memory location using the Phone Book press the corresponding number button one or more times for the first letter (refer to the table on the previous page). 3.
  • Page 11 7.3 Storing numbers in Memory locations 0-9 1. Press STORE button. 2. Enter the telephone number to be stored (up to 22 digits). Press STORE button. 3. Enter the name (up to 16 characters) . Press the corresponding number button one or more times for the first letter (see the above table). Press STORE button.
  • Page 12 8.2 CID Call Types Besides showing telephone numbers, the display can show a number of messages: OUT OF AREA It is an International call or a call from a PBX (no information received). PRIVATE Information on the number is blocked. The call could also be from a PBX.
  • Page 13 Service on 1300 889 785. Exclusion and limitation of liability Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card or implied by the Trade Practices Act and excludes any liability arising under any statutory or common law for...
  • Page 14 Customer suppor Customer suppor Email: support@oricom.com.au Web: www.oricom.com.au Ph: 1300 889 785 Fax: (02) 4574 8898 For further information about the Oricom range of prod- ucts please visit our website. New Zealand Atlas Gentech (NZ) Ltd, Private Bag 14927, Panmure,...
