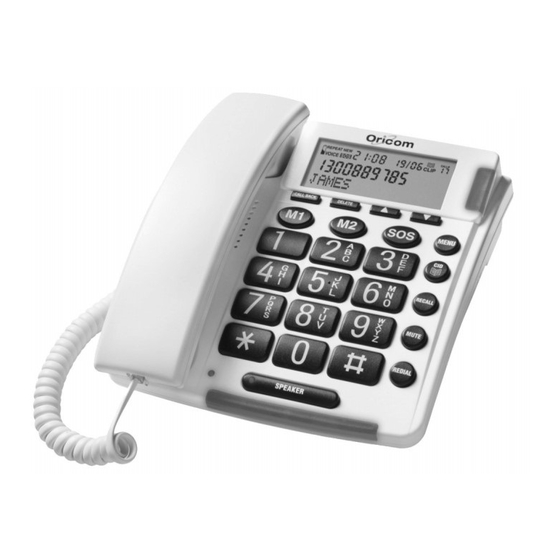

Oricom TP150 User Manual

Care phone with emergency call function
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Care Phone with Emergency Call
Function TP150
WARNINGS
THE CARE PHONE INCLUDING THE EMERGENCY
CALL FUNCTION WILL NOT OPERATE UNLESS ALL
THE PROCEDURES IN THE USER GUIDE HAVE BEEN
COMPLIED WITH. YOU MUST READ THIS USER GUIDE
IN FULL.

Advertisement

Table of Contents
loading

Related Manuals for Oricom TP150

Summary of Contents for Oricom TP150

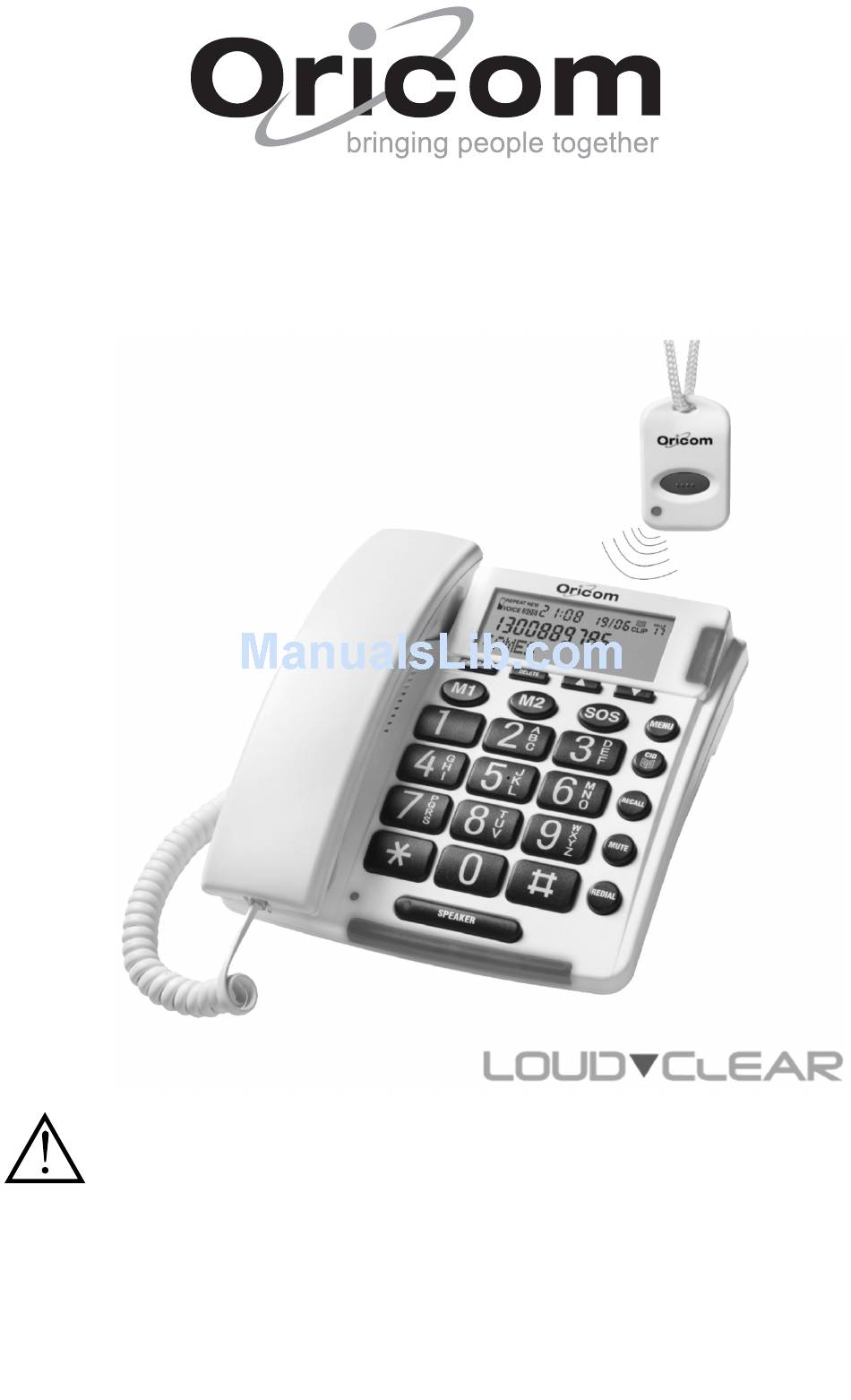

  • Page 1 Care Phone with Emergency Call Function TP150 WARNINGS THE CARE PHONE INCLUDING THE EMERGENCY CALL FUNCTION WILL NOT OPERATE UNLESS ALL THE PROCEDURES IN THE USER GUIDE HAVE BEEN COMPLIED WITH. YOU MUST READ THIS USER GUIDE IN FULL.

  • Page 2: General Information

    • the battery for the remote pendant is not properly installed or is flat; • the phone is not properly connected to power and the telephone line or the phone battery is not properly installed or is flat; • the phone is engaged or off the hook;...
  • Page 3 • Do not use your telephone during an electrical thunderstorm as it is possible to get an electric shock. Refer to information contained in Telstra White pages directory. • The earpiece of the handset may attract small metal objects such as staples and pins.
  • Page 4 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance.

  • Page 5: Location Of Controls

    2 Location of controls Telephone Line Jack Hook switch Handset Holder Delete Button Call Back Button Memory Buttons (M1, M2) Speaker Keypad Handset volume control 10. Receiver volume LED 11. Power Jack 12. New Call LED 13. Display Buttons N13134 The A-Tick symbol indicates that this product complies with all current Australian ACMA standards.

  • Page 6: Installation

    2. Plug the other end of the telephone cable into the wall outlet. 3. Plug one end of the curly cord into the socket on the handset. 4. Plug the other end of the curly cord into the left side of the telephone.
  • Page 7 3. Then press down and slide the bracket upward until the tabs snap into place. 4. Plug one end of the telephone cable into the TEL. LINE jack at the back of the base. 5. Plug the other end of the telephone cable into the telephone socket, then align the base’s keyhole slots with the screws and slide the phone...
  • Page 8 4 Setting Up 4.1 Setting the contrast 1. Press the MENU button. The display shows “LCD CONTRAST”. 2. Press the CALL BACK button. The display shows the current contrast setting with values between 1 and 5. 3. Press to select the contrast level and confirm with CALL BACK button.
  • Page 9 4.4 Voice Prompts Voice prompts are provided to make it easy to use the TP150. The volume of the voice prompt can be adjusted with the VOLUME slide switch on the side of the phone. If you prefer you may turn off the voice prompt function. NOTE: You will still hear all the phone book names you recorded.

  • Page 10: Telephone Operation

    Answering a call telephone call with the remote pendant If you are within a few meters of the TP150 you can answer an incoming call by pressing the red button on the remote pendant, the telephone will answer the call and activate the speakerphone so you can speak to the caller without picking up the handset.
  • Page 11 5.3 Speaker Volume Control You can adjust the speaker volume level that suits you by sliding the VOLUME switch. 5.4 Last number Redial To redial the last number called: 1. Lift the handset or press SPEAKER button. 2. Press the REDIAL button. 3.

  • Page 12: The Phone Book

    1. Press and release the MENU button until the STORE NUMBER is shown. 2. Press the CALL BACK button. The cursor will flash in the first position. 3. Enter the required telephone number with a maximum of 22 digits using the number pad and confirm with CALL BACK button.
  • Page 13 WARNING Selecting the correct location is very important as this feature determines the sequence in which the emergency telephone numbers are dialled. Location 1 will be dialled first, then 2, then 3 etc. WARNING: If you choose to overwrite a location, the previously stored number will be erased.
  • Page 14 After a short time, the display will display the first stored telephone number and say the name if it was recorded. You can now search for further numbers under this letter...
  • Page 15 6.3 To dial a number from the Phone Book: 1. With the required telephone number showing on the display, press CALL BACK button. The telephone dials out the displayed telephone number automatically in speakerphone mode. 2. The display shows the telephone number and call timer.
  • Page 16 2. Select the required location from the phone book by pressing 3. To delete single memory , press DELETE button once. The display will show the DELETE?. Press DELETE button for 2 seconds. The telephone number and name will be deleted and the display will now show another number from the phone book.

  • Page 17: Emergency Call Feature

    2. Press and hold the CALL BACK button. After the beep start your message (keep a distance of 15 cm from the telephone so that you can speak into the microphone). 3. Release the CALL BACK button after you have finished your emergency message.
  • Page 18 0 on their phone, the speakerphone will be activated for 3 minutes. • If 0 is not pressed within 60 seconds, the TP150 will terminate the call, then after a further 30 seconds redial the next emergency number automatically in speakerphone mode.
  • Page 19 8. Caller ID Important: To use Caller ID functions the CLIP symbol must be on. If the CLIP symbol is not visible on the display, press the 8.1 Receiving a Call (Can be stored up to 64 calls) • If an incorrect, invalid or incomplete Caller ID signal is received, the display shows -ERROR-.
  • Page 20 8.2 View the Caller ID Memory Press to review more recent calls. The CALL# will increase. After you view the most recent data in memory, the display will show END OF LIST. Press to review older calls. The CALL# will decrease. After you view the oldest data in memory, the display will show END OF LIST.
  • Page 21 If you loose or damage your remote pendant or wish to use more than one at a time you can order them direct from Oricom in Australia and Atlas Gentech in New Zealand (refer to page 25 in the user guide).
  • Page 22 9.2 Battery Backup on the phone base The TP150 requires that 4 AA Alkaline batteries be fitted in the phone and the power adaptor be connected to mains power socket and be turned on at all times. The Battery warning symbol on the phone display will indicate when the 4 AA batteries in the phone base need replacing.
  • Page 23 Customer Support Service on 1300 889 785. (b) Exclusion and limitation of liability Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card or implied by the Trade Practices Act...
  • Page 24 2LMB95YY...
