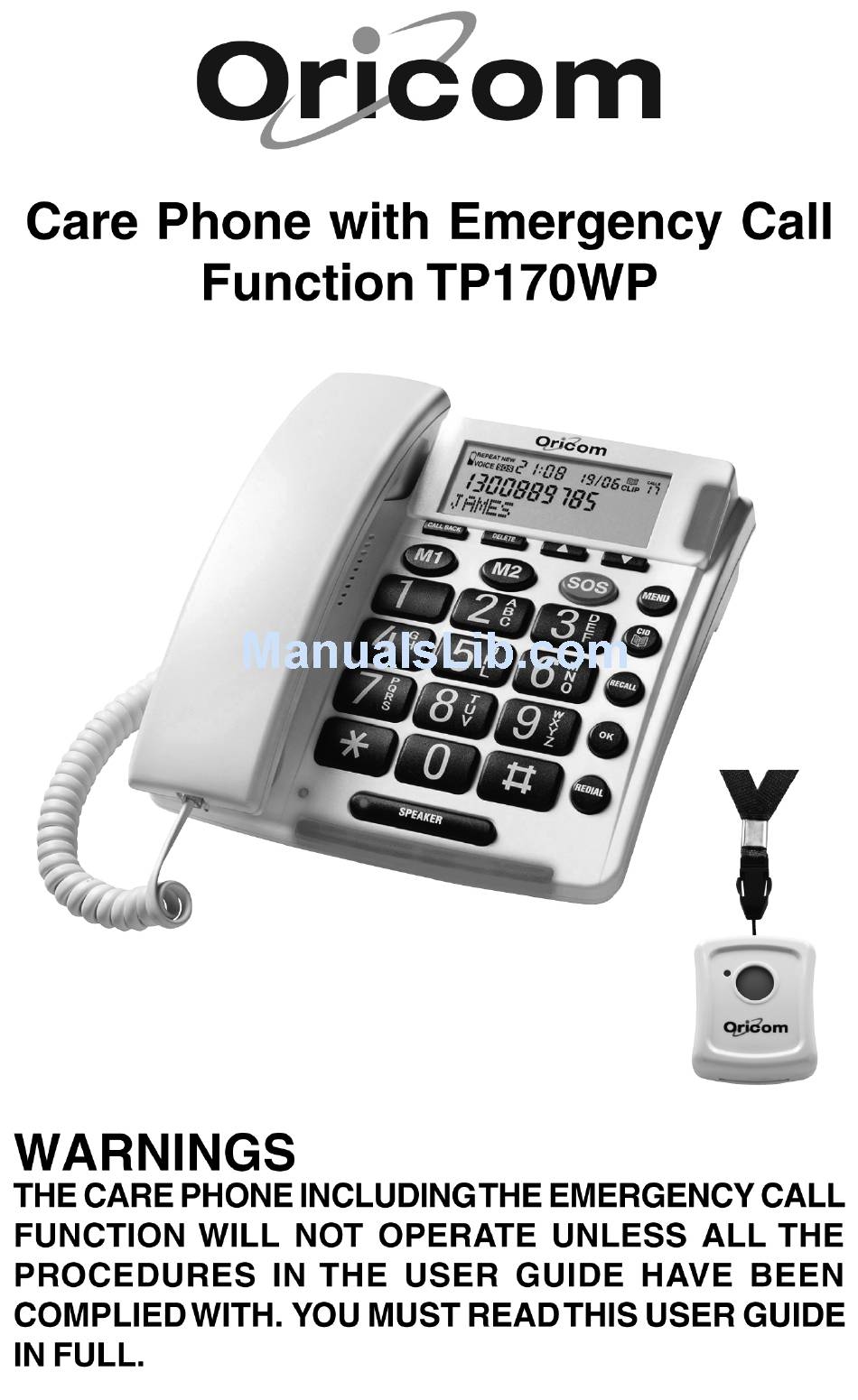

Oricom TP170WP User Manual

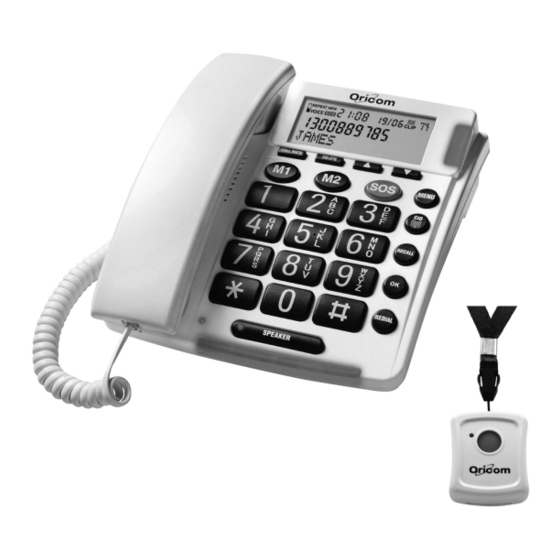

Care phone with emergency call function
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Oricom TP170WP

Summary of Contents for Oricom TP170WP

  • Page 2: General Information

    • the battery for the remote pendant is not properly installed or is flat; • the phone is not properly connected to power and the telephone line or the phone battery is not properly installed or is flat; • the phone is engaged or off the hook;...
  • Page 3 1 telephone to your telephone line. A standard telephone line has a maximum REN capacity of 3 (RN of 5). It is possible to connect 3 devices with a REN of 1 (RN of 1) with no degradation to the product’s performance.

  • Page 4: Location Of Controls

    2 Location of controls 3 4 5 Telephone Line Jack Hook switch Handset Holder Delete Button Call Back Button Memory Buttons (M1, M2) Speaker Keypad Receiver volume control 10. Receiver volume LED 11. Power Jack 12. New Call LED 13. Display...

  • Page 5: Installation

    2. Plug the other end of the telephone cable into the wall outlet. 3. Plug one end of the curly cord into the socket on the handset. 4. Plug the other end of the curly cord into the left side of the telephone.
  • Page 6 3. Then press down and slide the bracket upward until the tabs snap into place. 4. Plug one end of the telephone cable into the TEL. LINE jack at the back of the base. 5. Plug the other end of the telephone cable into the telephone socket, then align the base’s keyhole slots with the screws and slide the phone...
  • Page 7 Telecom NZ requirements. 4.4 Voice Prompts Voice prompts are provided to make it easy to use the TP170WP. The volume of the voice prompt can be adjusted with the VOLUME slide switch on the side of the phone.

  • Page 8: Remote Pendant

    This unit is compatible with most inductively coupled hearing aids on the market. However due to the wide range of hearing aids available we cannot guarantee that the TP170WP will function error free with every model. 4.7 Receiver Tone Volume Control You can use the TONE slide switch to adjust high frequency sounds.

  • Page 9: Telephone Operation

    Please repeat above procedure until you have successfully paired the pendant with the telephone. You can pair up to 5 pendants to each telephone. Please repeat above procedures to pair another pendant. If you have already paired 5 pendants to the phone attempting to pair more, pendants will result in display showing “FULL”.
  • Page 10 Answering a call telephone call with the remote pendant If you are within a few meters of the TP170WP you can answer an incoming call by pressing the red button on the remote pendant, the telephone will answer the call and activate the speakerphone so you can speak to the caller without picking up the handset.
  • Page 11 1. Press and release the MENU button until the STORE NUMBER is shown. 2. Press the OK button. The cursor will flash in the first position. 3. Enter the required telephone number with a maximum of 22 digits using the number pad and confirm with OK button.

  • Page 12: The Phone Book

    1. Press and release the MENU button until STORE NUMBER is shown. 2. Press the OK button. The cursor will flash in the first position. 3. Enter the required telephone number including the area code (max of 22 characters) press OK button to confirm (both the erase feature and pause feature can be used when storing the telephone number).
  • Page 13 WARNING Selecting the correct location is very important as this feature determines the sequence in which the emergency telephone numbers are dialled. Location 1 will be dialled first, then 2, then 3 etc. WARNING: If you choose to overwrite a location, the previously stored number will be erased.
  • Page 14 After a short time, the display will display the first stored telephone number and say the name if it was recorded. You can now search for further numbers under this letter...
  • Page 15 2. Select the required location from the phone book by pressing 3. To delete single memory , press DELETE button once. The display will show the DELETE?. Press DELETE button for 2 seconds. The telephone number and name will be deleted and the display will now show another number from the phone book.

  • Page 16: Emergency Call Feature

    2. Press and hold the OK button. After the beep start your message (keep a distance of 15 cm from the telephone so that you can speak into the microphone). 3. Release the OK button after you have finished your emergency message.
  • Page 17 0 on their phone, the speakerphone will be activated for 3 minutes. • If 0 is not pressed within 60 seconds, the TP170WP will terminate the call, then after a further 30 seconds dial the next emergency number automatically in speakerphone mode.
  • Page 18 9. Caller ID Important: To use Caller ID functions the CLIP symbol must be on. If the CLIP symbol is not visible on the display, press the 9.1 Receiving a Call (Can be stored up to 64 calls) • If an incorrect, invalid or incomplete Caller ID signal is received, the display shows -ERROR-.
  • Page 19 9.3 Deleting Numbers from the Caller ID Memory 1. Select the required Caller ID memory location by using the 2. To delete single memory , press DELETE button once. The display will show the DELETE?. Press DELETE button for 2 seconds. The data for that call will be erased, and the CALL# and Caller ID information will be updated.
  • Page 20 3 seconds. 10.2Battery Backup on the phone base The TP170WP requires that 4 AA Alkaline batteries be fitted in the phone and the power adaptor be connected to mains power socket and be turned on at all times.
  • Page 21 1300 889 785. (b) Exclusion and limitation of liability Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card or implied by the Trade Practices Act and excludes any liability arising under any statutory or common law for...
  • Page 22 (iv)non adherence by you to the warnings in the User Guide and the User Guide generally; and (v) modification to the product or services carried out to the product by anyone other than Oricom or on Oricom’s behalf. Oricom will not be liable for consequential losses including loss of profits arising from a cause of action in contract, tort or any other statutory or common law (except where a statute or any law prohibits this exclusion).
  • Page 24 2LMC70YY...
