Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Yarden IH-1 Hidden In-wall Speaker P/N: 2900-300472 Rev 2... -
Page 4: Table Of Contents
Setting up an Array Installation Technical Specifications Figures Figure 1: Yarden IH-1 Hidden In-wall Speaker Figure 2: Yarden IH-1 in a Stereo Setup Figure 3: Yarden IH-1 in a Theater Setup Figure 4: Adjust Tap Selector Figure 5: Yarden IH-1 In-wall Installation Figure 6: Array Layout Parallel Wiring Yarden IH-1 –... -
Page 5: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer Yarden IH-1 Hidden In-wall Speaker, which is ideal for the following typical applications: ... -
Page 6: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (such as the Kramer BC-2S) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 7: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 8: Overview

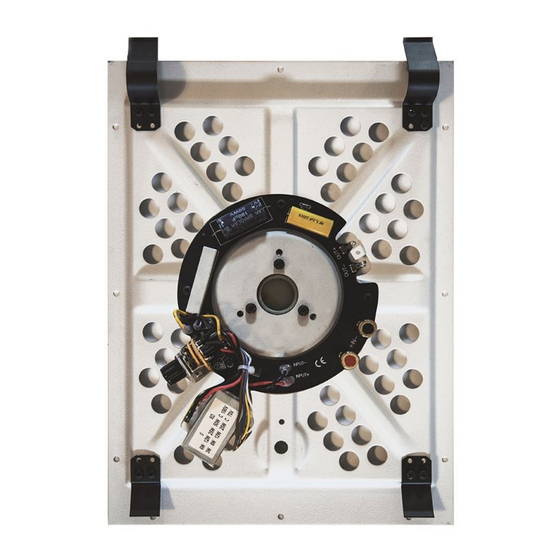

Overview The Yarden IH-1 is an open-back speaker designed for mounting invisibly in the wall. It is designed for infinite baffle environments, high-power handling and excellent acoustic performance. The Yarden IH-1 can be hidden in the wall and covered with regular water-based wall paint. -
Page 9: Defining The Yarden
Defining the Yarden IH-1 This section defines the powered Yarden IH-1: Figure 1: Yarden IH-1 Hidden In-wall Speaker Feature Function Top Mounting Clamps Are inserted first to grip the wall Tap Selector Adjust each speaker to the appropriate tap setting:... -
Page 10: Installing The Speaker
Fill the wall cavity behind the speakers with fiberglass insulation or mineral- wool. Keep the same amount of insulation for each of the speakers to achieve a true consistent bass response Yarden IH-1 - Installing the Speaker... -
Page 11: Figure 2: Yarden Ih-1 In A Stereo Setup
When setting the system in a stereo setup (as shown in Figure Install the Yarden IH-1 so that the top half of the speaker is at ear level Keep the distance between the speakers at 2/3 of the distance from the... -
Page 12: Figure 3: Yarden Ih-1 In A Theater Setup
If you want to add additional speakers on the side walls, we recommend that you place them at the same height of the main front speakers Figure 3: Yarden IH-1 in a Theater Setup Note that even though the illustration in... -
Page 13: Installing The Speaker
(for example, a speaker located in a remote corner may require additional power) Figure 4: Adjust Tap Selector 8. Connect the + (red) and – (black) wires to the + and – terminal block connectors of the speaker. Do not nail or staple the speaker wires. Yarden IH-1 - Installing the Speaker... -
Page 14: Figure 5: Yarden Ih-1 In-Wall Installation
10. Insert the lower clamps through the opening and gently slide the speaker downwards until the lower clamps are locked in place. Figure 5: Yarden IH-1 In-wall Installation Yarden IH-1 - Installing the Speaker... -
Page 15: Setting Up An Array Installation
Setting up an Array Installation When installing the Yarden IH-1 in an array installation layout, you need to define the distance between speakers according to the uniformity of the coverage desired and the budget. You can set the power on each speaker to get the desired power level in different installation areas. -
Page 16: Technical Specifications
External: 35cm x 26cm (13.7” x 10.2”) DIMENSIONS: Cutout: 31.8cm x 23.8cm (12.52"x9.37") Mounting depth: 5.7cm (2.2”) INSTALLATION CLEARANCE: OPTIONS: Kramer BC-2S speaker cable COLORS: White Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Yarden IH-1 - Technical Specifications... - Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
