Summary of Contents for Kramer SPK-W511
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: SPK-W511 On-Wall Speakers P/N: 2900-300115 Rev 1... -
Page 2: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Overview Defining the SPK-W511 Installing the SPK-W511 Choosing the Best Location Installing the Speaker Wires Installing the Mounting Bracket Technical Specifications Figures Figure 1: SPK-W511 SPK-W511 – Contents... -
Page 3: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 4: Getting Started
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer Speakers away from moisture, excessive sunlight and dust SPK-W511 - Getting Started... -
Page 5: Overview

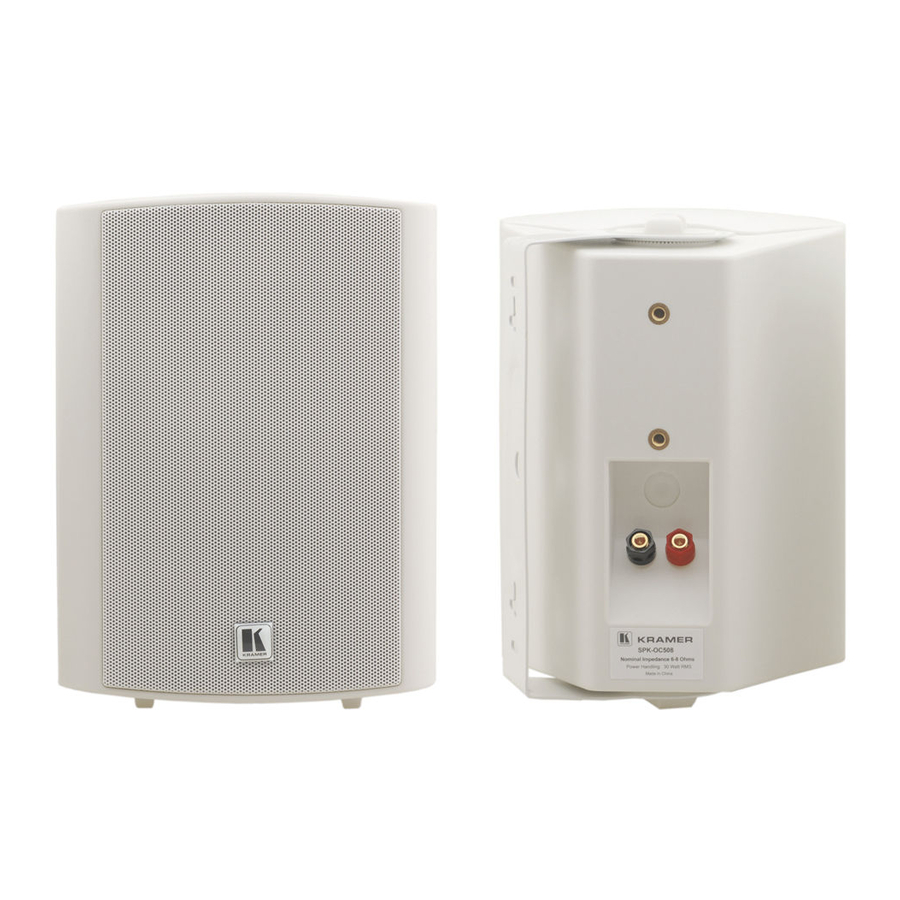

Overview The SPK-W511 includes a pair of high performance speakers that can be mounted on the wall vertically or horizontally, and indoors as well as outdoors. The mounting brackets are made of painted steel that can be attached to each speaker, letting you rotate each speaker to the left or right. -
Page 6: Installing The Spk-W511
2. Strip the ends of the wires approximately 3/8 inch. 3. Pass the speaker wires through the round hole in the mounting bracket. 4. Unscrew the negative (black) screw-type connector, insert the wire from the negative terminal on the receiver, and retighten. SPK-W511 - Installing the SPK-W511... -
Page 7: Installing The Mounting Bracket
5. Align the bracket screw holes (upper and lower) to those on the speaker and screw a knob to each of the holes to secure the speaker to the bracket. 6. You can slightly loosen the knobs on a speaker to adjust its direction. SPK-W511 - Installing the SPK-W511... -
Page 8: Technical Specifications
Shipping weight: (for pair): 4.6kg (10.14lbs) approx. ACCESSORIES: 2 mounting brackets (including 4 knobs and 4 mounting screws), 4 meter 24AWG black and white dual color wire Specifications are subject to change without notice at http://www.kramerelectronics.com SPK-W511 - Technical Specifications... - Page 9 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 10 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
