Installation

CONNECTIONS

The A.I.M. server unit is supplied fully pre-loaded and permits no local user interaction.
All configuration takes place remotely via the network connections and as a result only
two connections are required: Network and power.
Note: If an existing A.I.M. server must be replaced, follow the important advice given within
Appendix C (Swapping out an A.I.M. server).
Network connections
The A.I.M. server has two network connections on the rear panel: port 1 on the left
and port 2 on the right. These allow the unit to be connected to internal and external
network connections (respectively) as required. The external network connection allows
admin users located away from the internal network to be able to login. Network port 2
supports DHCP, however, port 1 does not and needs to be configured manually.

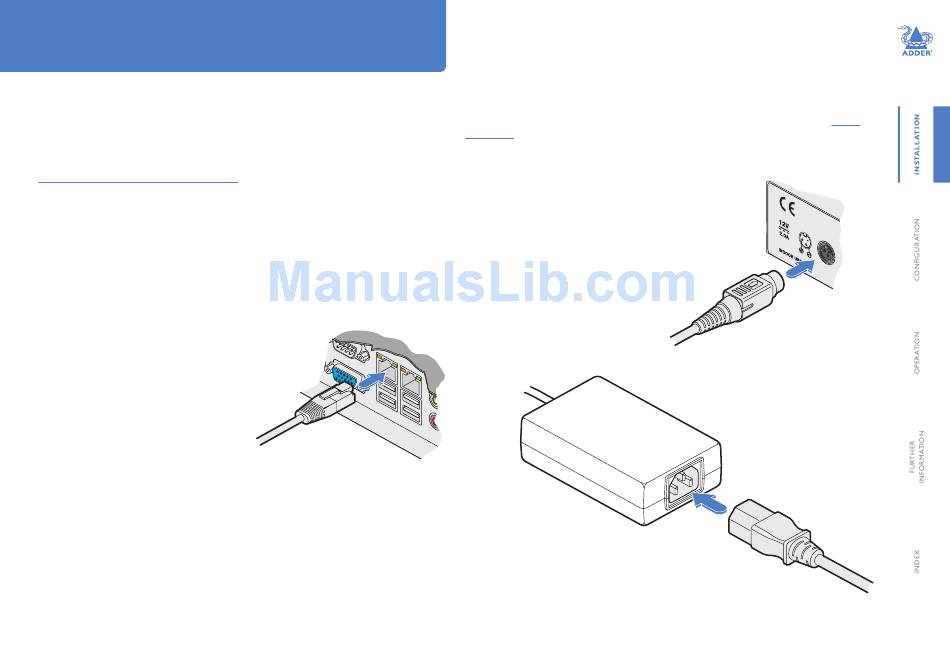

To connect the internal IP network port
1 Run a category 5, 5e or 6 link cable from the appropriate hub or router to the A.I.M.
server unit.
2 Connect the plug of the link cable to the left IP
port (1) on the rear panel of the A.I.M. server
unit.
Category 5, 5e or 6 cable
from LAN / network switch
Power supply connection
Important: Please read and adhere to the electrical safety information given within the
information section of this guide. In particular, do not use an unearthed power socket or
extension cable.
To connect the power supply
1 Attach the output connector of the power
supply to the power input socket on the left
side of the rear panel.
2 Connect the main body of the power supply to a nearby earthed mains outlet.
To switch on the A.I.M. server unit, click the power
switch on the front panel. Allow 3 minutes for the
booting process to complete.
