Floor protection

Your stove must be installed on a non-combustible material
plate to protect the floor and avoid fire which would be caused
by:
•
Projections of sparks from door opening or loading
logs;
•
The heat radiation when stove runaway might cause a
self-inflammation of the floor and the coating;
•
Flow of creosote when there is a chimney fire.
The coating used must be non-combustible and approved
according to standard UL1618 for USA or your local codes
(Example: cement, brick, ceramic tiles...)

Floor protection plate minimum dimensions

The following dimensions are the minimums values and they
can be greater.
Canada:
• 44 ¾ (113.73 cm)
• 53 ¾ (136.53 cm)
• 3/8 in thickness (1 cm)
United States:
• 44 ¾ (113.73 cm)
• 51¾ (131.44 cm)
• 3/8 in thickness (1 cm)
UNITED STATES ONLY: It's necessary to protect the floor
beneath the horizontal part of chimney connector extending 2
inch (5cm) beyond each side of the pipe. You can extend the
floor protection panel while respecting the clearances of each
side of stove.
November 5, 2015

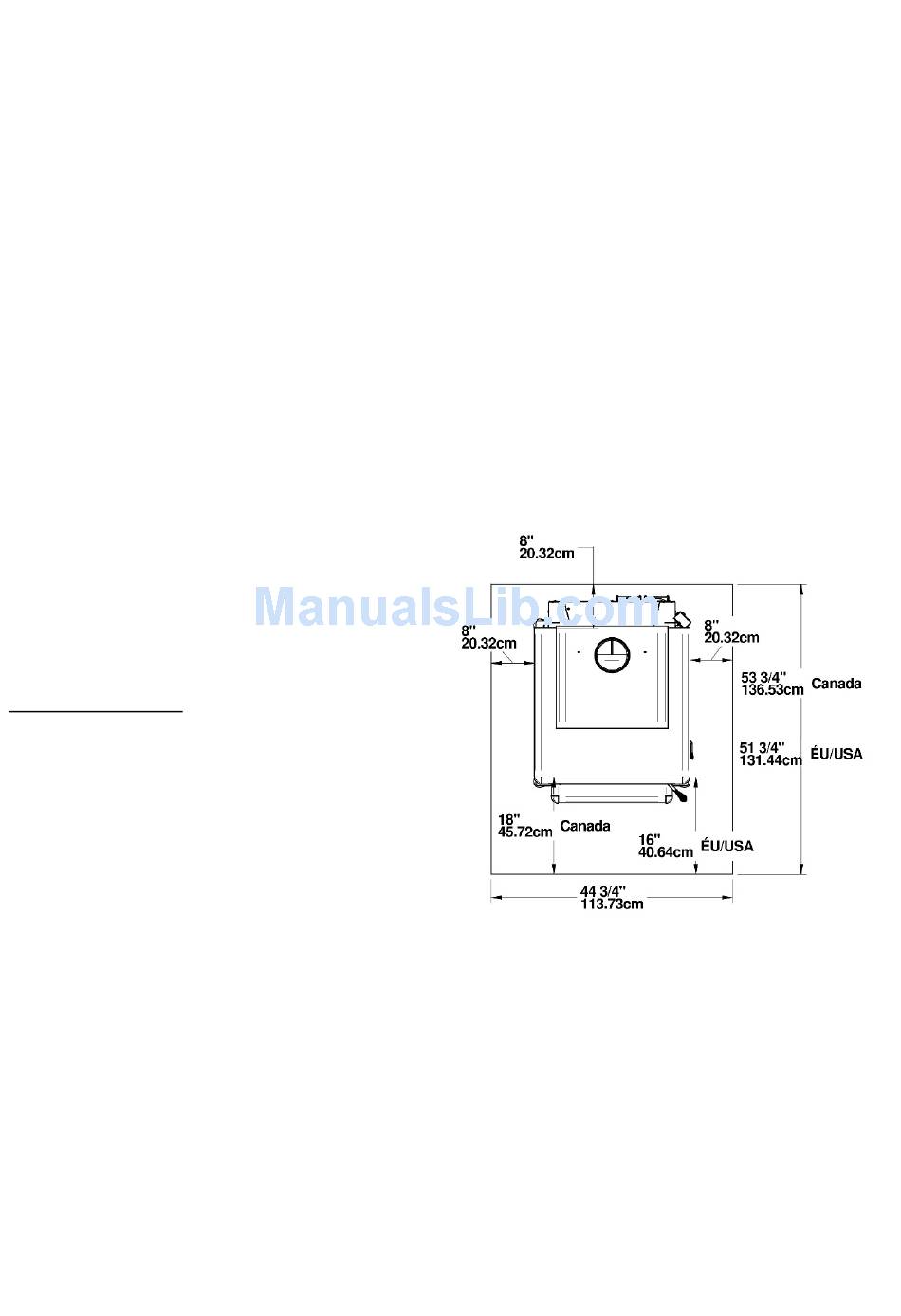

Clearances of the stove until the floor plate
protection
The following dimensions are the minimums values and they
can be greater.
Canada:
•
8 inches (20.32 cm) rear
•
8 inches (20.32 cm) side
•
18 inches (45.72 cm) loading door
Unites States:
•
8 inches (20.32 cm) rear
•
8 inches (20.32 cm) side
•
16 inches (40.64 cm) loading door
