Appliance Dimension; Specifications; Clearances To Combustible Material - J. A. Roby MAGNUM Instruction Manual

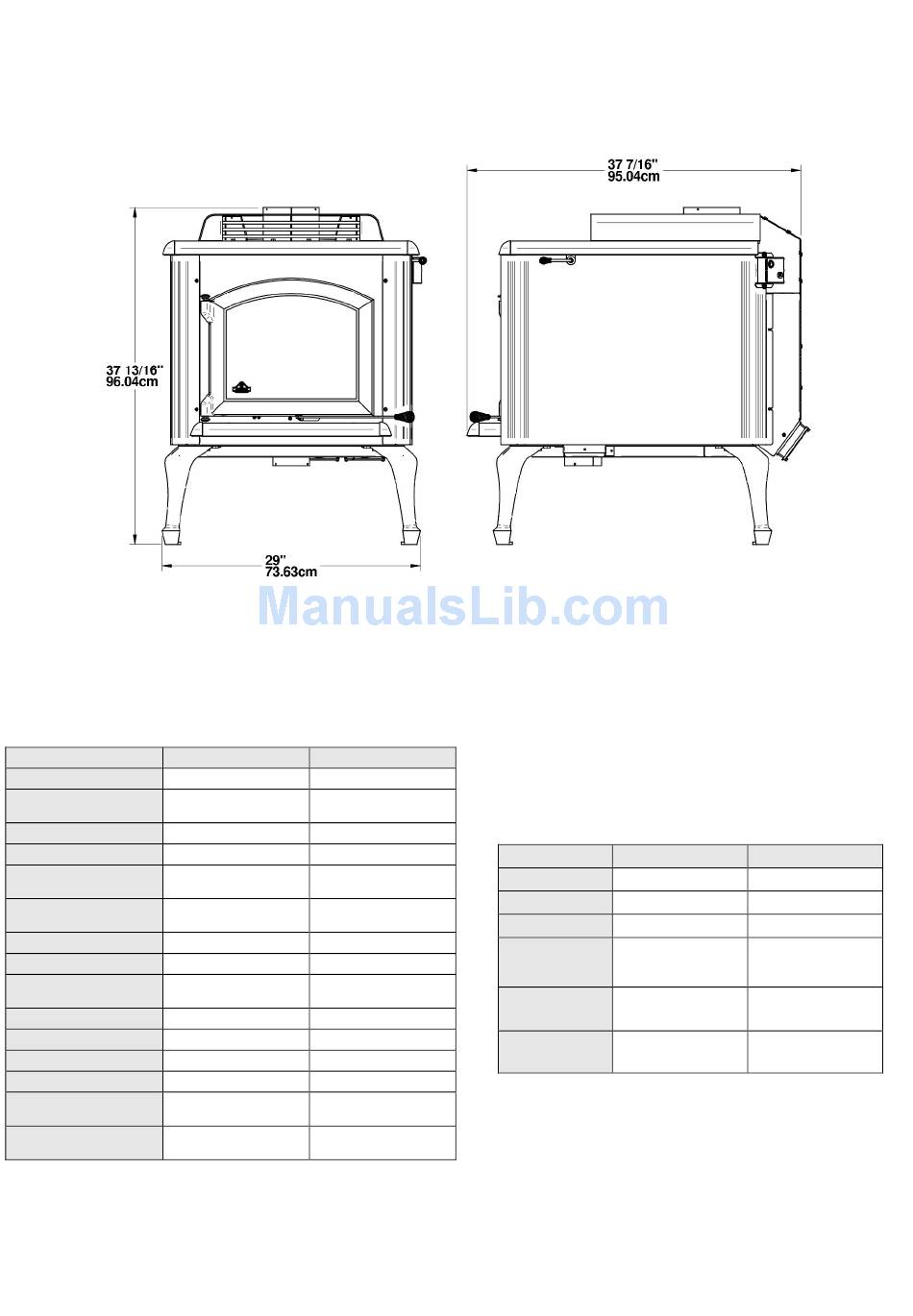

Appliance Dimension

Specifications

Option
Combustible Wood
Recommended
3800 ft²
surface area
Capacity 120 000 BTU/h
Flue pipe diameter 6 in (15.4 cm)
Minimal chimney
12 ft (365 cm)
height
37 13/16 in
Exterior Height
(96 cm)
Exterior Width 29 in (73.6 cm)
Exterior Depth 37 7/16 in (95 cm)
16 in x 9.5 in
Door Opening
40.6 cm x 25.4 cm
Interior Height 15½ in (38 cm)
Interior Width 20½ in (50.8 cm)
Interior Depth 25¼ in (64 cm)
Maximum log length 24½ in (62.2 cm)
Average combustion
4 to 18 hours
time
507 pounds
Weight
230 Kg
November 5, 2015
Ultimate 2015 Magnum
Wood
3800 ft²
120 000 BTU/h
6 in (15.4 cm)
12 ft (365 cm)
29 in
(73.6 cm)
29 in (73.6 cm)
37 7/16 in (95 cm)
16 in x 9.5 in
40.6 cm x 25.4 cm
15½ in (38 cm)
20½ in (50.8 cm)
25¼ in (64 cm)
24½ in (62.2 cm)
4 to 18 hours
507 pounds
230 Kg
Clearances to combustible
material
Specifications Ultimate 2015
Back 10 in (25.4 cm)
Beside 20 in (50.8 cm)
Front 48 in (121.9 cm)
Minimum
84 in (213.4 cm)
Ceiling Height
Back of Flue
17 in (43.18 cm)
Collar
Side of Flue
31⅛ in (79.09 cm)
Collar
Magnum
10 in (25.4 cm)
20 in (50.8 cm)
48 in (121.9 cm)
84 in (213.4 cm)
17 in (43.18 cm)
31⅛ in (79.09 cm)
5
