LevelOne AIP-W512 User Manual

LevelOne AIP-W512 User Manual

802.11n packet travel router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AIP-W512
802.11n Packet Travel Router
Rev: 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIP-W512 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne AIP-W512

Summary of Contents for LevelOne AIP-W512

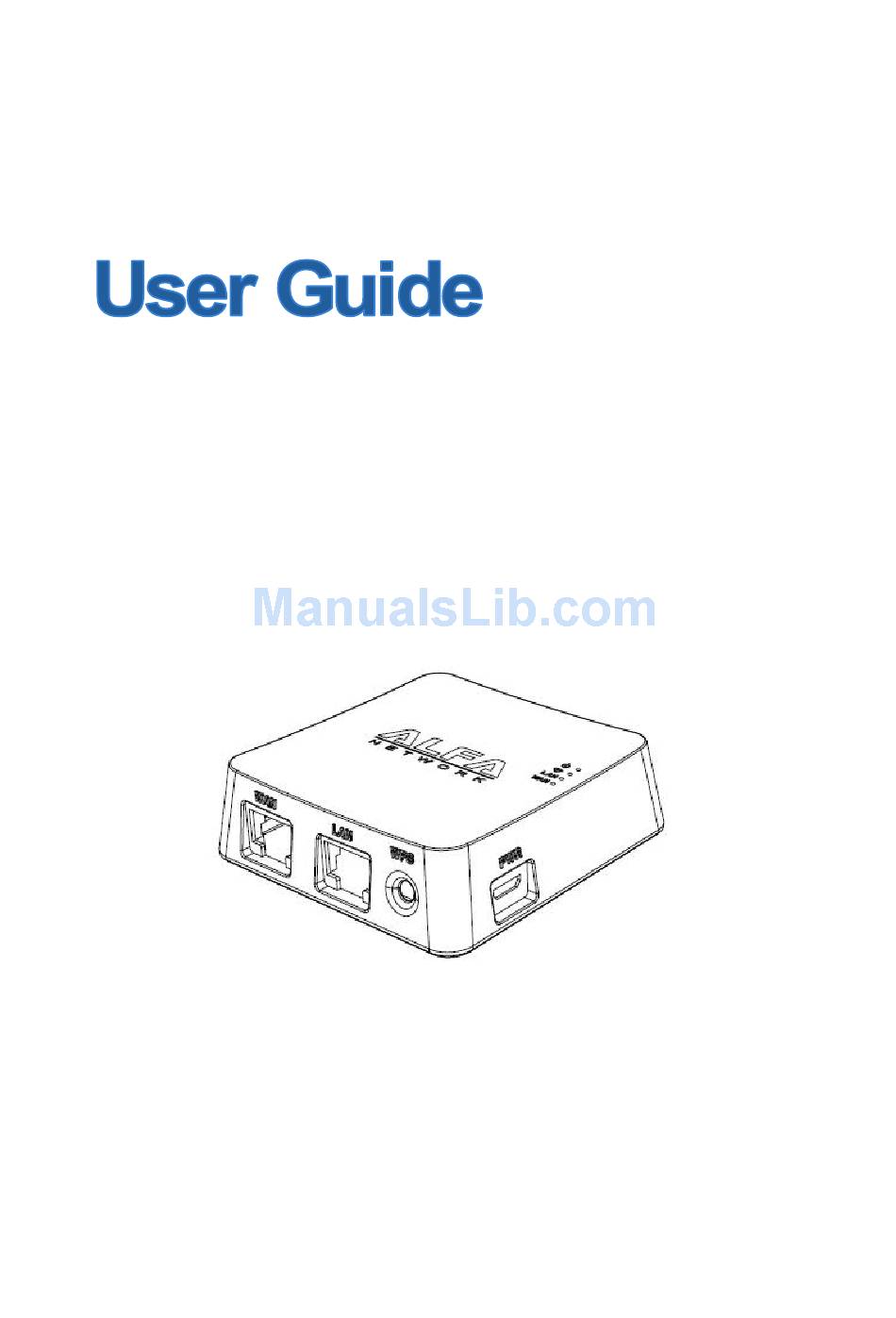

  • Page 1 AIP-W512 802.11n Packet Travel Router Rev: 1.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction...

  • Page 4: Table Of Contents

    CONTENTS Package Contents ..........................1 Chapter 1. Introduction ........................2 Overview ..........................2 Main Features ........................3 Product Overview ........................ 4 1.3.1 LED definitions ....................... 4 1.3.2 Router outlook ......................4 Chapter 2. Connecting the router ...................... 6 System Requirement ......................6 Installation Environment Requirements ................
  • Page 5 4.6.8 Schedule .......................39 Firewall ..........................40 4.7.1 Port Filtering ......................40 4.7.2 IP Filtering ......................41 4.7.3 MAC Filtering ......................41 4.7.4 Port Forwarding ....................42 4.7.5 URL Filtering ......................43 4.7.6 DMZ ........................43 4.7.7 VLAN ........................44 QoS ...........................45 Route Setup ........................46 4.10 Management ........................47 4.10.1 Status ........................47 4.10.2 Statistics .......................48 4.10.3 DDNS ........................48 4.10.4 Time Zone Setting ....................50...

  • Page 6: Package Contents

    AIP-W512 Package Contents The following items should be found in your package:  AIP-W512  USB power adapter x 1  Quick Installation Guide x 1  RJ-45 Ethernet cable x1  Note: If any of the listed items are damaged or missing, please contact your distributor.

  • Page 7: Chapter 1. Introduction

    Chapter 1. Introduction Thank you for choosing the AIP-W512. 1.1 Overview The AIP-W512 delivers exceptional range and speed, which can fully meet the need of residential / home Internet access and users that demand mobile network access. Incredible Speed ccessontroInstallation The AIP-W512 provides up to 150M wireless connection with other 802.11n wireless clients.

  • Page 8: Main Features

    AIP-W512 1.2 Main Features  IEEE 802.11n wireless technology to provide a wireless data rate of up to 150Mbps.  One 10/100M auto-negotiation RJ45 WAN port, one 10/100M Auto-Negotiation RJ45 LAN port, supporting auto MDI/MDIX.  Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.

  • Page 9: Product Overview

    There is a device linked to the corresponding port but WAN, there is no activity. (Orange) Data is being transmitted or received via the Flashing corresponding port. Table 1-1 LEDs Description 1.3.2 Router outlook Figure 1-2 AIP-W512 outlook - 4 -...
  • Page 10 AIP-W512 Connectivity interfaces are shown below:  WAN: The WAN port is where you will connect the xDSL/cable modem.  LAN: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch.  WPS: Press for 5 seconds to activate WPS (Wi-Fi Protected Setup) configuration...

  • Page 11: Chapter 2. Connecting The Router

    AIP-W512 Chapter 2. Connecting the router 2.1 System Requirement  Broadband Internet Access Service (DSL/Cable/Ethernet) One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is  connected directly to the Ethernet.) PCs with a working Ethernet adapter and an Ethernet cable with RJ45 connectors ...
  • Page 12 AIP-W512 Turn the power on for your PC and Cable/DSL Modem. Figure 2-1 Hardware Installation of the AIP-W512 - 7 -...

  • Page 13: Chapter 3. Quick Installation Guide

    The default IP address for AIP-W512 is 192.168.11.1, default subnet mask is 255.255.255.0. These values can be changed to your preference. Connect the local PC to the LAN port of AIP-W512. You can configure the IP address for your PC with the following options.
  • Page 14 AIP-W512 Figure 3-1 Success result of Ping command  If the result displayed is similar to the Figure 3-2, it means the connection between your PC and the router has failed. Figure 3-2 Failure result of Ping command To check the connection follows these steps: Is the connection between your PC and the router correct? ...

  • Page 15: Quick Installation Guide

    AIP-W512 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage AIP-W512. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 16 AIP-W512 Figure 3-5 WAN Connection Type The router provides three popular ways Gateway, Bridge and Wireless ISP to connect to the Internet. In most scenarios, it’s recommended to select Gateway function. If you are sure of what kind of connection type your ISP provides, you can select the connection type and click Next to go on configuring.
  • Page 17 AIP-W512 Confirm the IP address for your router and click Next to continue configuration. Figure 3-7 LAN Interface Setting If you select Gateway, the router provides five connection types for Internet access. Make sure the carrier device is securely connected to the WAN interface on the router.
  • Page 18 AIP-W512 Figure 3-9 DHCP client configuration c) If selected connection type is Static IP, the next screen will appear as shown in Figure 3-10. Figure 3-10 Static IP - 13 -...
  • Page 19 Band: Keep the default setting: 2.4GHz (B+G+N). If you just want to use a specific protocol, please use the drop down menu to select it.  Mode: This field determines the wireless mode which the AIP-W512 works on.  Network Type: Keep the default setting: Infrastructure. If you just want to use another operation mode, please use the drop down menu to select it.
  • Page 20 Channel Number- This field determines which operating frequency will be used. The  default channel is set to Auto allowing the AIP-W512 to choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.

  • Page 21: Chapter 4. Configuring The Router

    AIP-W512 Chapter 4. Configuring the router This chapter will show each Web page's key functions and configuration. 4.1 Login After successfully logging in, you will see the seven main menus on the left hand-side of the Web-based utility. On the right, there are corresponding explanations and instructions.

  • Page 22: Quick Setup

    AIP-W512 4.3 Quick Setup Please refer to Section 3.2: "Quick Installation Guide". 4.4 WPS This section will help guide you into adding a new wireless device to an existing network quickly with the WPS (Wi-Fi Protect Setup) function. Choose WPS from the Security menu in the next screen (shown in Figure 4-3 ).
  • Page 23 Step 1: Press PBC button from the Wireless LAN Utility then the Wi-Fi Protected Setup – PBC method will pop up and wait for an authentication. Step 2: Press Start PBC button on your router for authentication. Step 3: Wait for a minute then you’ll discover your AWUS036NHR is connected to AIP-W512 automatically. - 18 -...

  • Page 24: Tcp/Ip Settings

    AIP-W512 4.5 TCP/IP Settings Figure 4-5 The Network Menu There are two submenus under the TCP/IP Settings menu (shown in Figure 4-5): LAN Interface, and WAN Interface. Click any of them, and you will be able to configure the corresponding function.
  • Page 25 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your  system administrator. DHCP – Select Disabled, Client or Server in different operation mode for AIP-W512  DHCP Client Range - Fill in the start IP address and end IP address to allocate a range of IP ...

  • Page 26: Wan Interface

    AIP-W512 4.5.2 WAN Interface Choose menu “TCP/IP Settings → WAN”, you can configure the IP parameters of the WAN on the screen shown below. Figure 4-7 WAN – Static IP  Clone MAC Address - Fill in the MAC address for the MAC address to be cloned ...
  • Page 27 AIP-W512 If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static IP. The Static IP settings page will appear, shown in Figure 4-  IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
  • Page 28 AIP-W512  Set DNS Manually - If your ISP gives you one or two DNS addresses, select Set DNS Manually and enter the primary and secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP.
  • Page 29 AIP-W512 Connect on Demand – In this mode, the Internet connection can be terminated  automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again.  Manual - You can click the Connect/Disconnect button to connect/disconnect immediately.
  • Page 30 AIP-W512 If your ISP provides PPTP connection, please select PPTP option and enter the following parameters (Figure 4-1 Figure 4-11 L2TP Settings User Name/Password - Enter the User Name and Password provided by your ISP. These  fields are case-sensitive.
  • Page 31 AIP-W512 connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, check the radio button.
  • Page 32 AIP-W512 If your ISP provides L2TP connection, please select L2TP option. Enter the following parameters (Figure 4-12): Figure 4-12 L2TP Settings  User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect button ...
  • Page 33 AIP-W512 the Internet again. If you wish to activate Connect on Demand, check the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.

  • Page 34: Wireless

    AIP-W512 4.6 Wireless Figure 4-15 Wireless menu There are eight submenus under the Wireless menu (shown in Figure 4-15): Basic Settings, Advanced Settings, Security, Access Control, WDS Setting, Site Survey, WPS, and Schedule. Click any of them, and you will be able to configure the corresponding function.
  • Page 35 2.4GHz (G+N) - Select if you are using both 802.11g and 802.11n wireless clients. 2.4GHz (B+G+N) – Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. Mode - Select the desired wireless mode. AIP-W512 offers AP, Client, WDS, and AP + WDS. ...

  • Page 36: Advanced Settings

    AIP-W512 –  Associate Clients Click Show Active Clients button to open Active Wireless Client Table that shows the MAC address, transmit-packet, receive-packet and transmission-rate for each associated wireless client. Enable Mac Clone (Single Ethernet Client) – Copy your system’s NIC MAC address as ...

  • Page 37: Security

    AIP-W512 4.6.3 Security Choose menu “Wireless → Security”, you can configure the security settings of your wireless network. There are four wireless security modes supported by the router: WEP (Wired Equivalent Privacy), WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA-Mixed (Pre-Shared Key or Enterprise).
  • Page 38 AIP-W512  Key Format - Hexadecimal and ASCII formats are provided here Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format stands for any combination of keyboard characters in the specified length.
  • Page 39 AIP-W512  Radius Server Password - Enter the password for the Radius server, if Enterprise (RADIUS) is selected. Be sure to click the Apply Changes button to save your settings on this page.  WPA2 - Authentication type based on pre-shared passphrase or RADIUS server.
  • Page 40 AIP-W512 Figure 4-22  Authentication Mode - You can choose either Enterprise (RADIUS) or Personal (Pre-Shared Key). The default setting is Personal (Pre-Share Key), it is a passphrase between 8 and 63 characters. Enterprise (RADIUS) is an authentication via RADIUS server.

  • Page 41: Access Control

    AIP-W512 4.6.4 Access Control Choose menu “Wireless → Access Control”, you can control the wireless access by configuring the Wireless Access Control function, shown in Figure 4-23. Figure 4-23 Wireless Access Control To allow wireless users by MAC Address, click Allow Listed, or prohibited wireless users by MAC Address by click Deny Listed.

  • Page 42: Wds Settings

    AIP-W512 4.6.5 WDS Settings Choose menu “Wireless → WDS Settings”, you can configure the advanced settings of your wireless network. Figure 4-24 Wireless Advanced To add wireless AP by MAC Address, click Enable WDS.  MAC Address - The wireless station's MAC address that you want to add.

  • Page 43: Site Survey

    AIP-W512  Encryption Key - Select which of the four keys will be used and enter the matching WEP key that you create. Make sure these values are identical on all wireless stations in your WDS network  Pre-Shared Key Format - You can enter chose either Passphrase (8 ~ 63 characters) or HEX(64 Characters).

  • Page 44: Wps

    AIP-W512 4.6.7 WPS Choose menu “Wireless → WPS”, where you to add a new wireless device to an existing network quickly. Self-PIN Number - The current value of the router's PIN is displayed here.   PIN Configuration - You will need to enter Self-PIN Number into adapter’s configuration utility or on the adapter itself.

  • Page 45: Firewall

    AIP-W512 4.7 Firewall Figure 4-26 The Firewall menu There are seven submenus under the Firewall menu (shown in Figure 4-26), Port Filtering, IP Filtering, MAC Filtering, Port Forwarding, URL Filtering, DMZ, and VLAN. Click any of them, and you will be able to configure the corresponding function.

  • Page 46: Ip Filtering

    AIP-W512 4.7.2 IP Filtering Choose menu “Firewall → IP Filtering”, you can control the wireless access by configuring the IP Filtering function as shown in Figure 4-28. Figure 4-28 IP Filtering Enable IP Filtering – Check to Enable IP filtering feature.

  • Page 47: Port Forwarding

    AIP-W512 Enable MAC Filtering – Check to Enable MAC filtering feature.  MAC Address - The wireless station's MAC address that you want to filter.  Be sure to click the Apply Changes button to save your settings on this page.

  • Page 48: Url Filtering

    AIP-W512 4.7.5 URL Filtering Choose menu “Firewall → URL Filtering”, you can restrict user to access specific web page by configuring the URL Filtering function as shown in Figure 4-31. Figure 4-31 URL Filtering Enable URL Filtering – Check to Enable URL filtering feature.

  • Page 49: Vlan

    AIP-W512 To assign a computer or server to be a DMZ server: Check the Enable DMZ checkbox. Enter the IP Address of a local host in the DMZ Host IP Address field. Click the Apply Changes button.  Note: After you set the DMZ host, the firewall related to the host will not work.

  • Page 50: Qos

    AIP-W512 4.8 QoS QoS in AIP-W512 provides uploading/downloading bandwidth management feature to control the packet flow through the router in order to allocate a specific amount of bandwidth for a computer (IP) or a particular application (Port)  Note: Please refer to actual network scenario carefully before setting up the QoS parameters, improper bandwidth assignment may cause QoS to work in-effectively.

  • Page 51: Route Setup

    AIP-W512 4.9 Route Setup AIP-W512 supports static and dynamic routing protocol. routing table is often used in multi-segment network; for a single network segment or daily Internet access, it is not necessary to change routing parameters in this page. ...

  • Page 52: Management

    DDNS, Time Zone Setting, Denial-of-Service, Log, Upgrade Firmware, Save/Reload Setting, and Password. Click any of them, and you will be able to configure the corresponding function. 4.10.1 Status Choose menu “Management → Status”, display the current status of AIP-W512 as shown in Figure 4-39. Figure 4-35 Status...

  • Page 53: Statistics

    AIP-W512 4.10.2 Statistics Choose menu “Management → Statistics”, you can view the network traffic on the router as shown in Figure 4-36. Figure 4-36 Network activity statistics 4.10.3 DDNS Choose menu “Management -> DDNS”, you can configure the Dynamic DNS function.
  • Page 54 AIP-W512 Figure 4-41 Dyndns.org DDNS Settings To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account. Type the Domain Name you received from dynamic DNS service provider here.

  • Page 55: Time Zone Setting

    Note: 1. This setting will be used for some time-based functions such as firewall. You must specify your time zone once you log in to the AIP-W512 successfully, otherwise, these functions will not take effect. 2. The time will be lost if the AIP-W512 is turned off.

  • Page 56: Denial-Of-Service (Dos)

    AIP-W512 4.10.5 Denial-of-Service (DoS) DoS Protection will take effect only when the Enable DoS Preventation in “Management → DoS” is enabled as shown in Figure 4-43. Figure 4-43 DoS Denial of Service protection. Check the Enable or Disable button to enable or disable the DoS protection function.

  • Page 57: Log

    AIP-W512 4.10.6 Log Choose menu “Management →Log”, you can view the logs of the AIP-W512. Figure 4-44 System Log System all – Display all the log file on the router .  Wireless – Display just the wireless log on the router.

  • Page 58: Upgrade Firmware

    AIP-W512 4.10.7 Upgrade Firmware Choose menu “Management → Upgrade Firmware”, you can update the latest version of firmware for the router on the following screen. Figure 4-45 Firmware Upgrade  Firmware Version - This displays the current firmware version. To upgrade the router's firmware, follow these instructions below: 1.

  • Page 59: Save/Reload Setting

    AIP-W512 4.10.8 Save/Reload Setting Choose menu “Management → Save/Reload Setting”, you can save the current configuration of the router as a backup file and restore the configuration via a backup file as shown in Figure 4-46. Figure 4-46 Backup & Restore Configuration ...

  • Page 60: Appendix A: Faq

    AIP-W512 Appendix A: FAQ How do I configure the router to access the Internet by ADSL users? First, configure the ADSL Modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL Modem to the WAN port on the router. The telephone cord plugs into the Line port of the ADSL Modem.

  • Page 61: Appendix B: Configuring The Pc

    AIP-W512 Appendix B: Configuring the PC In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary. Configure TCP/IP component On the Windows taskbar, click the Start button, and then click Control Panel.
  • Page 62 AIP-W512 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as...
  • Page 63 AIP-W512 Figure B-4 Now, click OK to keep your settings. - 58 -...

  • Page 64: Appendix C: Specifications

    AIP-W512 Appendix C: Specifications General Standards IEEE 802.3, 802.3u, 802.11b, 802.11g, 802.11n Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP One 10/100M Auto-Negotiation WAN RJ45 port, one 10/100M Ports Auto-Negotiation LAN RJ45 port supporting Auto MDI/MDIX 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω...

  • Page 65: Appendix D: Glossary

    AIP-W512 Appendix D: Glossary  802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
  • Page 66 AIP-W512  WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless ...
