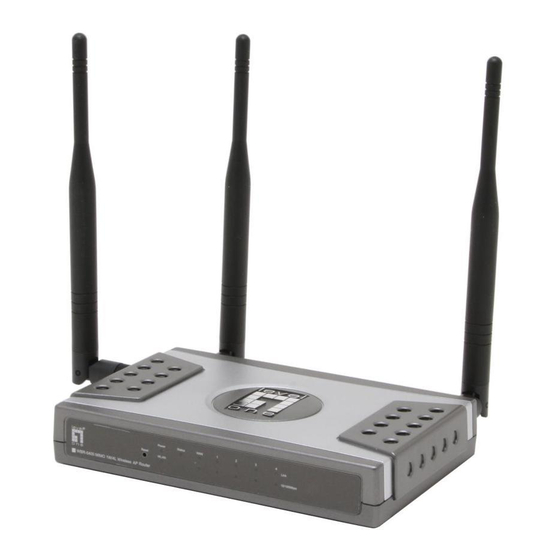

MIMO Wireless 1W,4L Broadband Router
User`s Manual
Ver 1.00-0512
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBR-5400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LevelOne WBR-5400

Summary of Contents for LevelOne WBR-5400

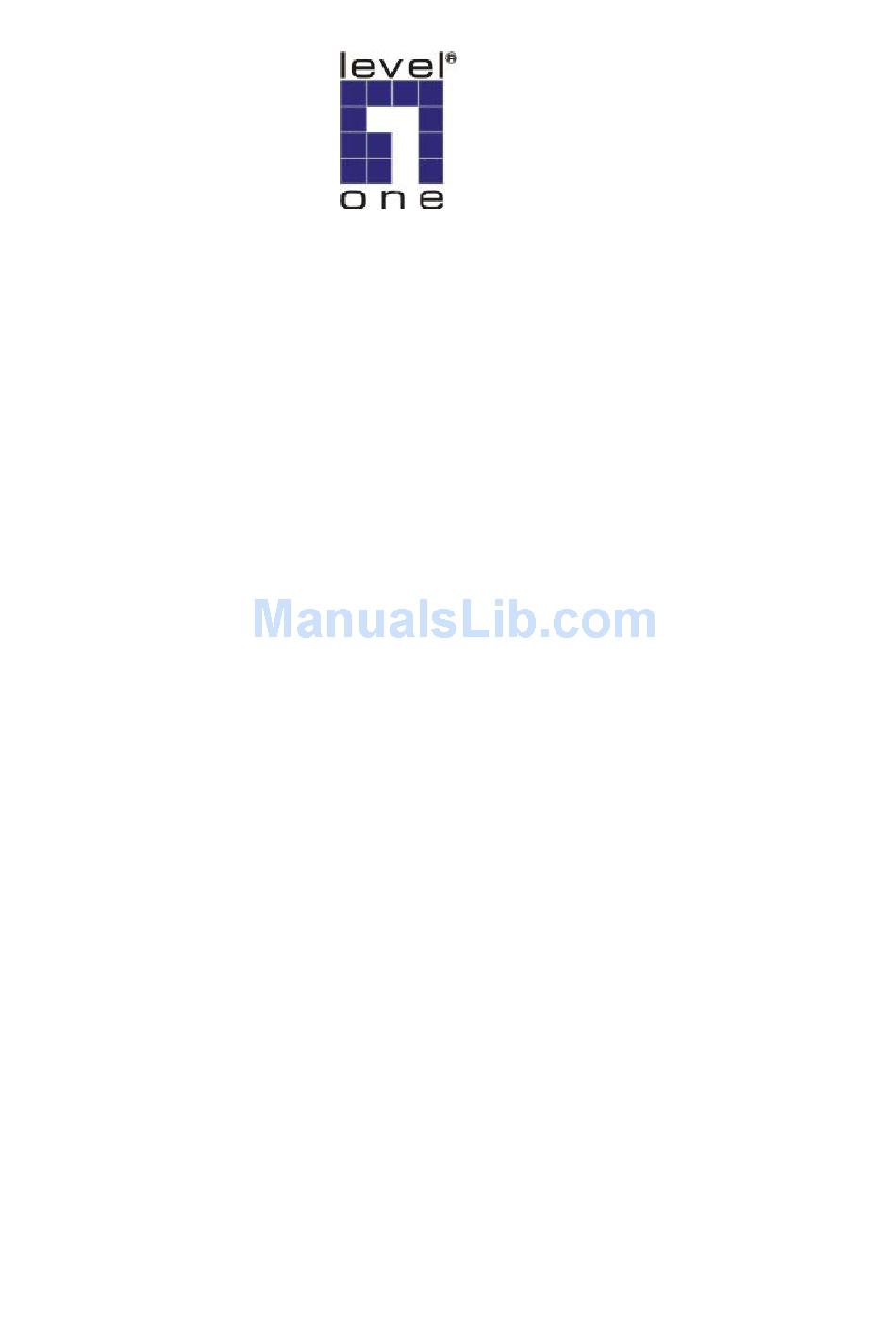

  • Page 1 LevelOne WBR-5400 MIMO Wireless 1W,4L Broadband Router User`s Manual Ver 1.00-0512...

  • Page 2: Ce Declaration Of Conformity

    Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

  • Page 3: Table Of Contents

    CHAPTER 1 INTRODUCTION ... 5 UNCTIONS AND EATURES ... 7 ACKING CHAPTER 2 HARDWARE INSTALLATION ... 8 2.1 P ... 8 ANEL AYOUT 2.2 P ROCEDURE FOR ARDWARE CHAPTER 3 NETWORK SETTINGS AND SOFTWARE INSTALLATION.11 3.1 M ORRECT ETWORK CHAPTER 4 CONFIGURING WIRELESS BROADBAND ROUTER ... 12 4.1 S TART UP AND...
  • Page 4 APPENDIX B 802.1X SETTING ... 76 APPENDIX C RESET TO FACTORY DEFAULT... 82 ... 82 ESET TO FACTORY EFAULT...

  • Page 5: Functions And Features

    Congratulations on your purchase of this outstanding LevelOne WBR-5400, 11g MIMO Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users.

  • Page 6: Wireless Functions

    Wireless functions High speed for wireless LAN connection Up to 54Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing (OFDM). Roaming Provides seamless roaming within the IEEE 802.11b (11M) and IEEE 802.11g (54M) WLAN infrastructure. IEEE 802.11b compatible (11M) Allowing inter-operation among multiple vendors. IEEE 802.11g compatible (54M) Allowing inter-operation among multiple vendors.

  • Page 7: Advanced Functions

    When SPI Mode is enabled, the router will check every incoming packet to detect if this packet is valid. DoS Attack Detection Supported When this feature is enabled, the router will detect and log the DoS attack comes from the Internet.

  • Page 8: Chapter 2 Hardware Installation

    2.1 Panel Layout 2.1.1. Front Panel LED: Function Color Power POWER Green indication System STATUS status Green indicators WAN port Green activity Wireless WLAN Green activity Link. Link status Green 10/100 Data Rate Green Mbps Reset Reset Figure 2-1 Front Panel Status Power is being applied to this product.
  • Page 9 2.1.2. Rear Panel Ports: Port Description PWR(DC) Power inlet the port where you will connect your cable (or DSL) modem or Ethernet router. Port 1-4 the ports where you will connect networked computers and other devices.

  • Page 10: Procedure For Hardware Installation

    2. Decide where to place your Wireless Broadband Router You can place your WBR-5400, Wireless Broadband Router, on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.

  • Page 11: Chapter 3 Network Settings And Software Installation.11

    To use WBR-5400 correctly, you have to properly configure the network settings of your computers and install the attached setup program into your MS Windows platform (98SE/ME/2000/XP ) 3.1 Make Correct Network Settings of Your Computer The default IP address of this product is 192.168.123.254, and the default subnet mask is 255.255.255.0.

  • Page 12: Chapter 4 Configuring Wireless Broadband Router

    This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.

  • Page 13: Start-Up And Log In

    4.1 Start-up and Log in Activate your browser, and disable the proxy or add the IP address of this product into the exceptions. Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field and press ENTER. For example: http://192.168.123.254. After the connection is established, you will see the web user interface of this product.

  • Page 14: Status

    4.2 Status This option provides the function for observing this product’s working status: A. WAN Port Status. If the WAN port is assigned a dynamic IP, there may appear a “Renew” or “Release” button on the Sidenote column. You can click this button to renew or release IP manually. B.

  • Page 15: Wizard

    4.3 Wizard Setup Wizard will guide you through a basic configuration procedure step by step.Press ”Next >” Setup Wizard will automatically detect your WAN type. If WAN type can not be detected successfully, “Dynamic IP Address” will be assigned.
  • Page 16 Setup Wizard - Select WAN Type: For detail settings, please refer to 4.4.1 primary setup. For the rest of the steps, Setup Wizard will guide you through a basic configuration. .Press ”Next >”...

  • Page 17: Basic Setting

    4.4 Basic Setting...

  • Page 18: Primary Setup - Wan Type, Virtual Computers

    4.4.1 Primary Setup – WAN Type, Virtual Computers Press “Change”...
  • Page 19 This option is primary to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start. 1. LAN IP Address: the local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway.
  • Page 20 4.4.1.5 PPTP My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned to you. Server IP Address: the IP address of the PPTP server. PPTP Account and Password: the account and password your ISP assigned to you. If you don'twant to change the password, keep it empty.
  • Page 21 4.4.1.6 L2TP 1. IP Mode: The IP Mode assigned by your ISP. You can select either Static IP Address or Dynamic IP address. 2. My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned to you when your IP Mode is Static IP Address.
  • Page 22 4.4.1.7 Virtual Computers Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one mapping of multiple global IP address and local IP address. Global IP: Enter the global IP address assigned by your ISP. Local IP: Enter the local IP address of your LAN PC corresponding to the global IP address.
  • Page 23 4.4.2 DHCP Server Press “More>>”...
  • Page 24 The settings of a TCP/IP environment include host IP, Subnet Mask, Gateway, and DNS configurations. It is not easy to manually configure all the computers and devices in your network. Fortunately, DHCP Server provides a rather simple approach to handle all these settings. This product supports the function of DHCP server.
  • Page 25 Wireless settings allow you to set the wireless configuration items. 1. Wireless function: Enable or disable wireless function. 2. Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is “default”) 3.
  • Page 26 802.1X Setting 802.1X Check Box was used to switch the function of the 802.1X. When the 802.1X function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP IP address or the 802.1X server’s domain-name. RADIUS port The port setting of 802.1X server RADIUS Shared Key...
  • Page 27 WPA-PSK 1.Encryption. There are two encryption methods, TKIP and AES. 1. Select Preshare Key Mode 2. Fill in the key, Ex 12345678 Pre-share Key Mode: Either ASCII or HEX can be selected. Pre-share Key: Please input either 32 ASCII characters or 64 Hexadecimal digits as Pre-share key.
  • Page 28 Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP address or the 802.1X server’s domain-name. RADIUS Shared Key Key value shared by the RADIUS server and this router.
  • Page 29 WPA2-PSK(AES) : Accept WPA2 clients only and Pre-share key (encryption key) must be entered manually. You can input either 32 ASCII characters or 64 Hexadecimal digits as Pre-share key. Pre-share Key Mode: Either ASCII or HEX can be selected. Pre-share Key: Please input either 32 ASCII characters or 64 Hexadecimal digits as Pre-share key.
  • Page 30 WPA2(AES) : Accept WPA2 clients only and work simultaneously with RADIUS Server. The encryption key is got from RADIUS Server dynamically. RADIUS Server IP: The 802.1X server's IP address. RADIUS port: The 802.1X server's service port. RADIUS Shared Key: Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server.
  • Page 31 WPA-PSK / WPA2-PSK : Accept WPA1 or WPA2 clients to connect simultaneously and Pre-share key (encryption key) must be entered manually. You can input either 32 ASCII characters or 64 Hexadecimal digits as Pre-share key. Pre-share Key Mode: Either ASCII or HEX can be selected. Pre-share Key: Please input either 32 ASCII characters or 64 Hexadecimal digits as Pre-share key.
  • Page 32 WPA1/WPA2 : Accept WPA1 or WPA2 clients to connect simultaneously and work simultaneously with RADIUS Server. The encryption key is got from RADIUS Server dynamically. RADIUS Server IP: The 802.1X server's IP address. RADIUS port: The 802.1X server's service port. RADIUS Shared Key: Key value shared by the RADIUS server and this router.
  • Page 33 4.4.4 Change Password You can change Password here. We strongly recommend you to change the system password for security reason.

  • Page 34: Forwarding Rules

    4.5 Forwarding Rules...

  • Page 35: Virtual Server

    4.5.1 Virtual Server This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping. A virtual server is defined as a Public Port, and all requests to this port will be redirected to the Private Port of assigned computer specified by the Server IP.
  • Page 36 The Private port is used for multi-computers, which might use the same service. For example, if you setup three Web server(80) in your LAN, which are 192.168.123.7, 192.168.123.10, and 192.168.123.77. You can assign different public port to different IP. The public port can be set at any port.

  • Page 37: Special Ap

    4.5.2 Special AP Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead.

  • Page 38: Miscellaneous Items

    Non-standard FTP port You have to configure this item if you want to access an FTP server whose port number is not 21. This setting will be lost after rebooting. UPnP Setting Enable or disable the UPnP function of WBR-5400...

  • Page 39: Security Settings

    4.6 Security Settings...

  • Page 40: Packet Filter

    4.6.1 Packet Filter Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or DMZ host only. You can select one of the two filtering policies: 1.
  • Page 41 addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses. For source or destination port, you can define a single port (80) or a range of ports (1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53, U2000-2999. No prefix indicates both TCP and UDP are defined.
  • Page 42 Example 2: (1.2.3.100-1.2.3.119) They can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are all allowed. After Inbound Packet Filter setting is configured, click the save button.
  • Page 43 Outbound Filter: To enable Outbound Packet Filter click the check box next to Enable in the Outbound Packet Filter field. Example 1: (192.168.123.100-192.168.123.149) They are allowed to send mail (port 25), receive mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to resolve the domain name. (192.168.123.10-192.168.123.20) They can do everything (block nothing) Others are all blocked.
  • Page 44 Example 2: (192.168.123.100-192.168.123.119) They can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are allowed After Outbound Packet Filter setting is configured, click the save button.

  • Page 45: Domain Filter

    4.6.2 Domain Filter Domain Filter let you prevent users under this device from accessing specific URLs. Domain Filter Enable Check if you want to enable Domain Filter. Log DNS Query Check if you want to log the action when someone accesses the specific URLs. Privilege IP Addresses Range Setting a group of hosts and privilege these hosts to access network without restriction.
  • Page 46 Example: In this example: 1. URL include “www.msn.com” will be blocked, and the action will be record in log-file. 2. URL include “www.sina.com” will not be blocked, but the action will be record in log-file. 3. URL include “www.google.com” will be blocked, but the action will not be record in log-file. IP address X.X.X.1~ X.X.X.20 can access network without restriction.

  • Page 47: Url Blocking

    4.6.3 URL Blocking URL Blocking will block LAN computers to connect to pre-defined Websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.
  • Page 48 In this example: 1.URL include “msn” will be blocked, and the action will be record in log-file. 2.URL include “sina” will be blocked, and the action will be record in log-file 3.URL include “cnnsi” will be blocked, and the action will be record in log-file. 4.

  • Page 49: Mac Address Control

    4.6.4 MAC Address Control MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address. MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when “Enable”...
  • Page 50 Control table "Control table" is the table at the bottom of the "MAC Address Control" page. Each row of this table indicates the MAC address and the expected IP address mapping of a client. There are four columns in this table: MAC Address IP Address In this page, we provide the following Combobox and button to help you to input the MAC address.

  • Page 51: Miscellaneous Items

    4.6.5 Miscellaneous Items Remote Administrator Host/Port In general, only Intranet user can browse the built-in web pages to perform administration task. This feature enables you to perform administration task from remote host. If this feature is enabled, only the specified IP address can perform remote administration. If the specified IP address is 0.0.0.0, any host can connect to this product to perform administration task.
  • Page 52 packet to detect if this packet is valid. DoS Attack Detection When this feature is enabled, the router will detect and log the DoS attack comes from the Internet. Currently, the router can detect the following DoS attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.

  • Page 53: Advanced Settings

    4.7 Advanced Settings 4.7.1 System Time...
  • Page 54 Get Date and Time by NTP Protocol Selected if you want to Get Date and Time by NTP Protocol. Time Server Select a NTP time server to consult UTC time Time Zone Select a time zone where this device locates. Get Date and Time using PC`s Date and Time Selected if you want to synchronize the router time setting with your connected PC.

  • Page 55: System Log

    4.7.2 System Log This page support two methods to export system logs to specific destination by means of syslog(UDP) and SMTP(TCP). The items you have to setup including: IP Address for Syslog Server Host IP of destination where syslogs will be sent to. Check Enable to enable this function.

  • Page 56: Dynamic Dns

    4.7.3 Dynamic DNS To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your Internet service provider.
  • Page 57 Example: After Dynamic DNS setting is configured, click the save button. The new settings will be effective after reboot.

  • Page 58: Snmp Setting

    Setting the community of SetRequest your device will accept. WAN Access IP Address WBR-5400 will only respond the SNMP packet to the device with the entered IP. If left it blank, WBR-5400 will not respond SNMP packet from WAN port.
  • Page 59 Example: 1. This device will response to SNMP client which’s get community is set as “public” 2. This device will response to SNMP client which’s set community is set as “private”...

  • Page 60: Routing Table

    4.7.5 Routing Table Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other. Routing Table settings are settings used to setup the functions of static.
  • Page 61 Example: Configuration on NAT Router Destination 192.168.1.0 192.168.0.0 So if, for example, the client3 wanted to send an IP data gram to 192.168.0.2, it would use the above table to determine that it had to go via 192.168.123.103 (a gateway), And if it sends Packets to 192.168.1.11 will go via 192.168.123.216 Each rule can be enabled or disabled individually.

  • Page 62: Schedule Rule

    4.7.6 Schedule Rule You can set the schedule time to decide which service will be turned on or off. Select the “enable” item. Press “Add New Rule”...
  • Page 63 You can write a rule name and set which day and what time to schedule from “Start Time” to “End Time”. The following example configure “ftp time” as everyday 14:10 to 16:20...
  • Page 64 After configure Rule 1 Schedule Enable Selected if you want to Enable the Scheduler. Edit To edit the schedule rule. Delete To delete the schedule rule, and the rule# of the rules behind the deleted one will decrease one automatically. Schedule Rule can be apply to Virtual server and Packet Filter, for example:...
  • Page 65 Exanple1: Virtual Server – Apply Rule#1 (ftp time: everyday 14:10 to 16:20) Exanple2: Packet Filter – Apply Rule#1 (ftp time: everyday 14:10 to 16:20).

  • Page 66: Toolbox

    4.8 Toolbox...
  • Page 67 4.8.1 System Log You can View system log by clicking the View Log button...
  • Page 68 4.8.2 Firmware Upgrade You can upgrade firmware by clicking Firmware Upgrade button.
  • Page 69 4.8.3 Backup Setting You can backup your settings by clicking the Backup Setting button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved. 4.8.4 Reset to default You can also reset this product to factory default by clicking the Reset to default button.
  • Page 70 4.8.6 Miscellaneous Items MAC Address for Wake-on-LAN Wake-on-LAN is a technology that enables you to power up a networked device remotely. In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC address of this device, say 00-11-22-33-44-55.

  • Page 71: Appendix A Tcp/Ip Configuration For Windows 95/98

    This section introduces you how to install TCP/IP protocol into your personal computer. And suppose you have been successfully installed one network card on your personal computer. If not, please refer to your network card manual. Moreover, the Section B.2 tells you how to set TCP/IP values for working with this NAT Router correctly.
  • Page 72 6. The TCP/IP protocol shall be listed in the Network window. Click OK to complete the install procedure and restart your PC to enable the TCP/IP protocol. A.2 Set TCP/IP Protocol for Working with NAT Router 1. Click Start button and choose Settings, then click Control Panel. 2.
  • Page 73 Select Obtain an IP address automatically in the IP Address tab. b. Don’t input any value in the Gateway tab.
  • Page 74 Choose Disable DNS in the DNS Configuration tab. B. Configure IP manually Select Specify an IP address in the IP Address tab. The default IP address of this product is 192.168.123.254. So please use 192.168.123.xxx (xxx is between 1 and 253) for IP Address field and 255.255.255.0 for Subnet Mask field.
  • Page 75 b. In the Gateway tab, add the IP address of this product (default IP is 192.168.123.254) in the New gateway field and click Add button. In the DNS Configuration tab, add the DNS values which are provided by the ISP into DNS Server Search Order field and click Add button.
  • Page 76 Figure 1: Testing Environment (Use Windows 2000 Radius Server) 1 Equipment Details PC1 OS: Microsoft Windows XP Professional without Service Pack 1. PC2 OS: Microsoft Windows XP Professional with Service Pack 1a. Authentication Server: Windows 2000 RADIUS server with Service Pack 3 and HotFix Q313664.
  • Page 77 5.Set RADIUS server shared key. 6.Configure WEP key and 802.1X setting. The following test will use the inbuilt 802.1X authentication method such as ,EAP_TLS, PEAP_CHAPv2(Windows XP with SP1 only), and PEAP_TLS(Windows XP with SP1 only) using the Smart Card or other Certificate of the Windows XP Professional. 3.
  • Page 78 Figure 2: Enable IEEE 802.1X access control...
  • Page 79 Figure 3: Smart card or certificate properties 4. Windows 2000 RADIUS server Authentication testing: 4.1DUT authenticate PC1 using certificate. (PC2 follows the same test procedures.) 1. Download and install the certificate on PC1. (Fig 4) 2. PC1 choose the SSID of DUT as the Access Point. 3.
  • Page 80 Figure 4: Certificate information on PC1 Figure 5: Authenticating...
  • Page 81 4.2DUT authenticate PC2 using PEAP-TLS. 1. PC2 choose the SSID of DUT as the Access Point. 2. Set authentication type of wireless client and RADIUS server both to PEAP_TLS. 3. Disable the wireless connection and enable again. 4.The DUT will send the user's certificate to the RADIUS server, and then send the message of authentication result to PC2.

  • Page 82: Reset To Factory Default

    Reset to factory Default There are 2 methods to reset to default. Restore with RESET button First, turn off the router and press the RESET button in. And then, power on the router and push the RESET button down until the Status LED start flashing, then remove the finger. If LED flashes about 8 times, the RESTORE process is completed.
