3、INSTALLATION

REAR PANEL

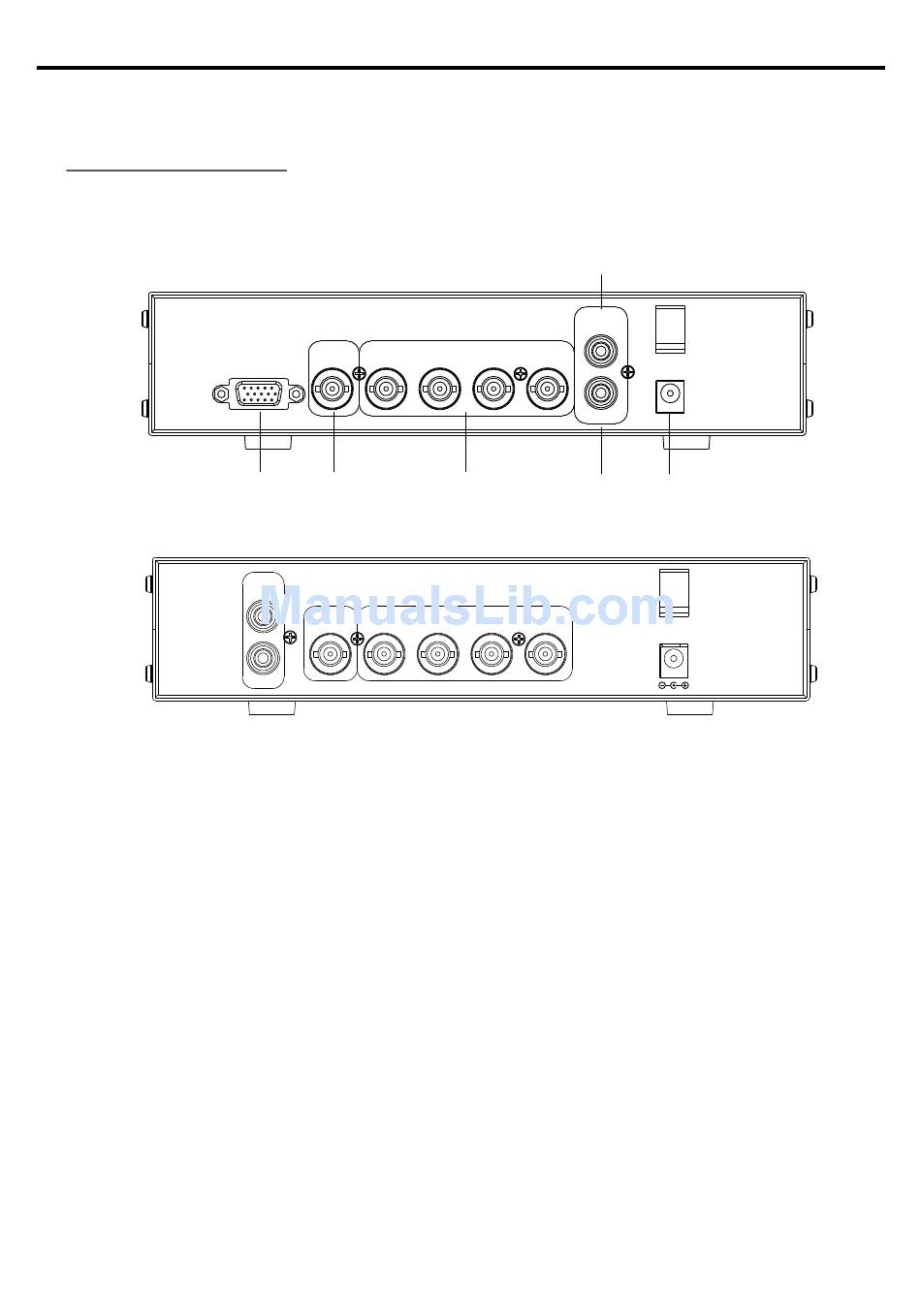

REAR PANEL A
REAR PANEL B
(1) XGA Output
(2) Video Output : Corresponding to Video Input.
(3) Video IN : Cameras to Video Input.
(4) Audio Input.
(5) Audio Output.
(6) Power Input : Please use the power supply attached
Adaptor : DC-12V / 4A
