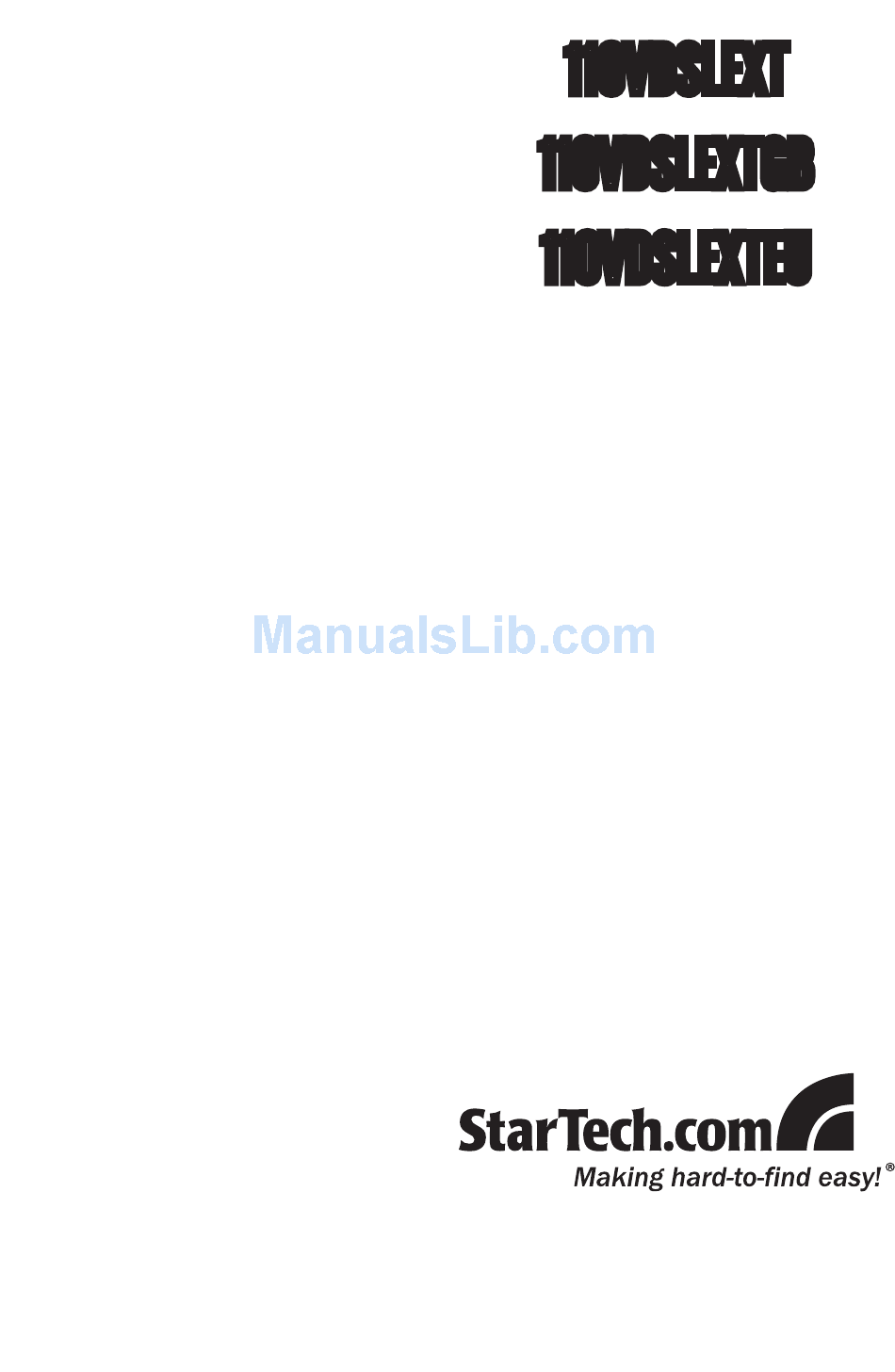

- Page 1 110VDSLEXT 110VDSLEXTGB 110VDSLEXTEU Instruction Manual VDSL Ethernet LAN Extender 10/100 VDSL Ethernet LAN Extender Kit...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Installation ............... 1 Operation ................. 1 LED Displays ................1 DIP Switch Settings ..............2 Connector Architecture ...............5 Specifications ..............6 Technical Support ............7 Warranty Information ............7... -
Page 4: Installation
• 2 x Power Adapter Hardware Installation To install the 110VDSLEXT, all four of the DIP switches must be in the upwards (OFF) position. Plug the DC power adapter into the port on the rear panel of the unit, and then into an available AC outlet. -
Page 5: Dip Switch Settings
Side, Channel, Rate Limit, and SNR. Pin 1 - CO, CPE Switch OFF: If Pin 1 is in the OFF position, the 110VDSLEXT will operate in Central Office (CO) mode. ON: If Pin 1 is in the ON position, the 110VDSLEXT will operate in Customer Premise Equipment (CPE) mode. - Page 6 Interleave mode, with communication protection for up to 250ms of impulse noise with latency less than 6 ms ON: If Pin 2 is in the ON position, the 110VDSLEXT will operate in Fast mode, with direct data transmissions having less than 1ms of latency.
- Page 7 Pin 4 - General Protection OFF: If Pin 4 is in the OFF position, the 110VDSLEXT will operate with a SNR ratio up to 9 dB.
-
Page 8: Connector Architecture
ON: If Pin 4 is in the ON position, the 110VDSLEXT will operate with a SNR ratio of 6 dB. Connector Architecture Ethernet Port Pin Number Assignment (MDI-X) RX+; Receive data + RX-; Receive data - TX+; Transmit data +... -
Page 9: Specifications
Specifications RJ-45 connector Complies with IEEE LAN Interface 802.3/802.3u/802.3x 10/100 Base-T Auto-Negotiation, Auto-MDI/MDI-X RJ-45 connector DMT Encoding Complies with ITU-T VDSL Interface G993.1/993.2 On-board surge protection DIP Switch 4 position LAN: ACT/LNK, 10/100 Mbps, Half/Full Duplex VDSL: Power On/Off, CO/CPE, Idle/Trained/Link DC single 12 Volt over 35mm DC Power Supply... -
Page 10: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
