StarTech.com 110VDSLEXTGB Instruction Manual
Vdsl ethernet lan extender
Hide thumbs
Also See for 110VDSLEXTGB:
- Instruction manual (11 pages) ,
- User manual (11 pages) ,
- Instruction manual (11 pages)
Related Manuals for StarTech.com 110VDSLEXTGB
Summary of Contents for StarTech.com 110VDSLEXTGB

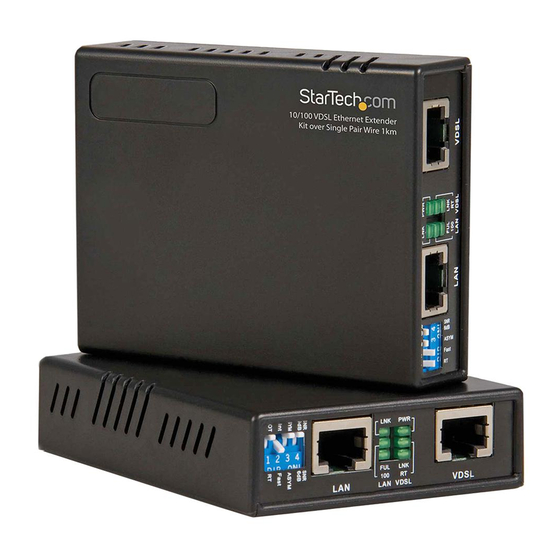

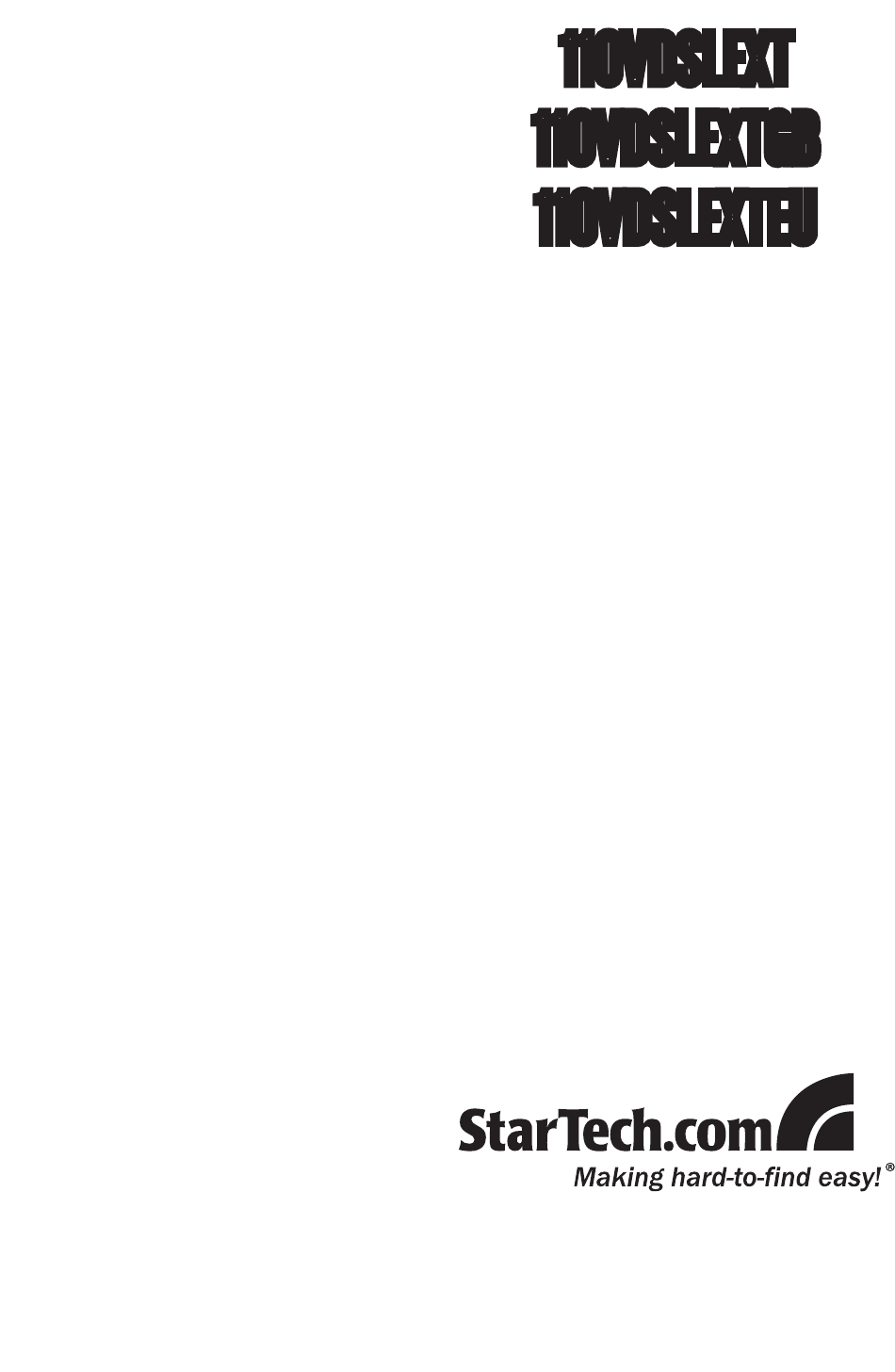

- Page 1 110VDSLEXT 110VDSLEXTGB 110VDSLEXTEU Instruction Manual VDSL Ethernet LAN Extender 10/100 VDSL Ethernet LAN Extender Kit over Single Pair Wire...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Package Contents ...............1 Installation ............... 1 Hardware Installation ..............1 Operation ................. 2 LED Displays ................2 DIP Switch Settings ..............2 Connector Architecture ...............5 Specifications ..............6 Technical Support ............7 Warranty Information ............7... -
Page 4: Introduction
Introduction Package Contents • 2 x 110VDSLEXT/GB/EU units • 2 x RJ-45 to VDSL Cable • 2 x Power Adapter • 1 x Instruction Manual Installation Hardware Installation Install one of the 110VDSLEXT / GB / EU units with all four of the DIP switches set to the upward (OFF) position. -
Page 5: Operation
Operation LED Displays LAN LED Display Blinking Activity Link up Link down 100 Mbps 10 Mbps Full duplex Half duplex VDSL LED Display Blinking Device Device Power Off Activity Power On CPE Mode CO Mode Slowly: Idle Linked Offline Quickly: Training DIP Switch Settings The 110VDSLEXT / GB / EU has a 4-position DIP switch for configuration of Side, Channel, Rate Limit, and SNR. - Page 6 Pin 2 - Interleave Noise Protection OFF: If Pin 2 is in the OFF position, the 110VDSLEXT / GB / EU will operate in Interleave mode, with communication protection for up to 250ms of impulse noise with latency less than 6 ms ON: If Pin 2 is in the ON position, the 110VDSLEXT / GB / EU will operate in Fast mode, with direct data transmissions having less than 1ms of latency.
- Page 7 Pin 4 - General Protection OFF: If Pin 4 is in the OFF position, the 110VDSLEXT / GB / EU will operate with a SNR ratio up to 9 dB. ON: If Pin 4 is in the ON position, the 110VDSLEXT / GB / EU will operate with a SNR ratio of 6 dB.
-
Page 8: Connector Architecture
Connector Architecture Ethernet Port Pin Number Assignment (MDI-X) RX+; Receive data + RX-; Receive data - TX+; Transmit data + Not used Not used TX-; Transmit Data - Not used Not used VDSL Port Assignment (MDI-X) Pin Number Not used Not used Not used ANALOG Input/Output... -
Page 9: Specifications
Specifications 110VDSLEXT 110VDSLEXTGB 110VDSLEXTEU • RJ-45 connector • Complies with IEEE LAN Interface 802.3/802.3u/802.3x • 10/100 Base-T Auto- Negotiation, Auto-MDI/MDI-X • RJ-45 connector • DMT Encoding VDSL Interface • Complies with ITU-T G993.1/993.2 • On-board surge protection DIP Switch 4 position •... -
Page 10: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
