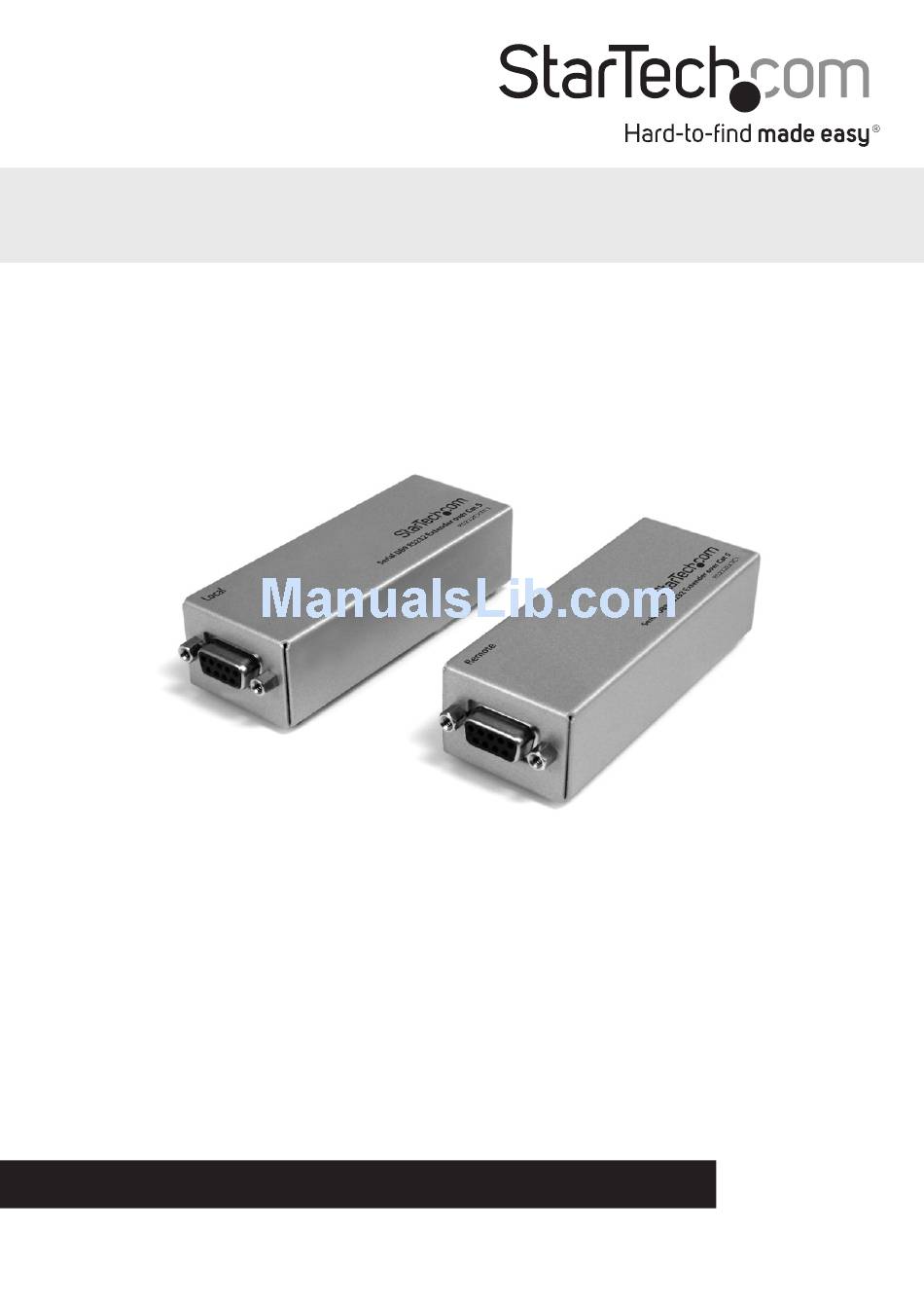

1 Port RS232 Serial DB9 Extender over
Cat 5 - Up to 3300ft (1000m)
RS232EXTC1
RS232EXTC1GB
RS232EXTC1EU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/28/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com RS232EXTC1
Summary of Contents for StarTech.com RS232EXTC1
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/28/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Side View 1 ..............................2 Side View 2 ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................3 Wiring Information ................4 DB9 connector Pinout ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6... -
Page 4: Introduction
Introduction The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. -
Page 5: Side View 1

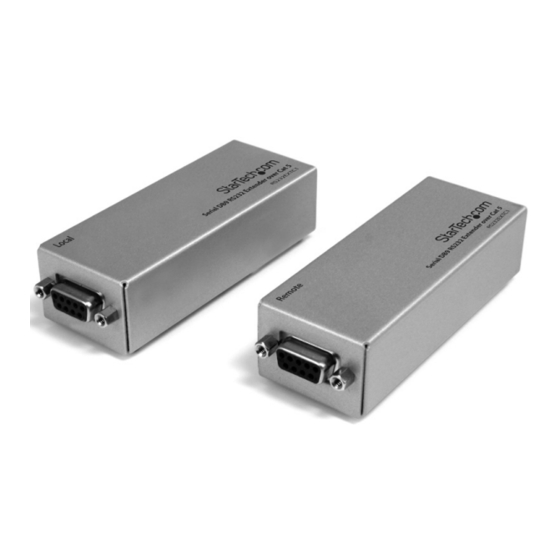

Side View 1 Side View 2 Remote Unit Local Unit DB9 Connector DB9 Connector *actual product may vary from photos Instruction Manual... -
Page 6: Installation
1. Connect a 9-pin DB9 cable from the Local unit, to the RS232 serial connector on the local/host device. A male/male DB9 null modem cable is provided, but if another cable/adapter is required, this can be purchased separately from www.startech.com. 2. Connect an RJ45 terminated Cat5 Ethernet cable to the RJ45 connector on the Transmitter unit. -
Page 7: Wiring Information
Wiring Information Conductor RJ45 Pin Conductor Color Code White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown DB9 connector Pinout Pin 1 Pin 2 Transmit Data (TxD) Pin 3 Receive Data (RxD) Pin 4 Pin 5 Signal Ground Pin 6... -
Page 8: Specifications
Specifications RS232EXTC1 RS232EXTC1GB RS232EXTC1EU 1 x RJ45 Ethernet female Connectors (per unit) 1 x DB9 female 1 x DC Power LEDs Supported Protocols RS232 Maximum Baud Rate 230 Kbps Maximum Cable Length 1000 m / 3300 ft Compatible Cabling Cat 5/5e/6/6a... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
