NOTE:
• Items marked "*" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.

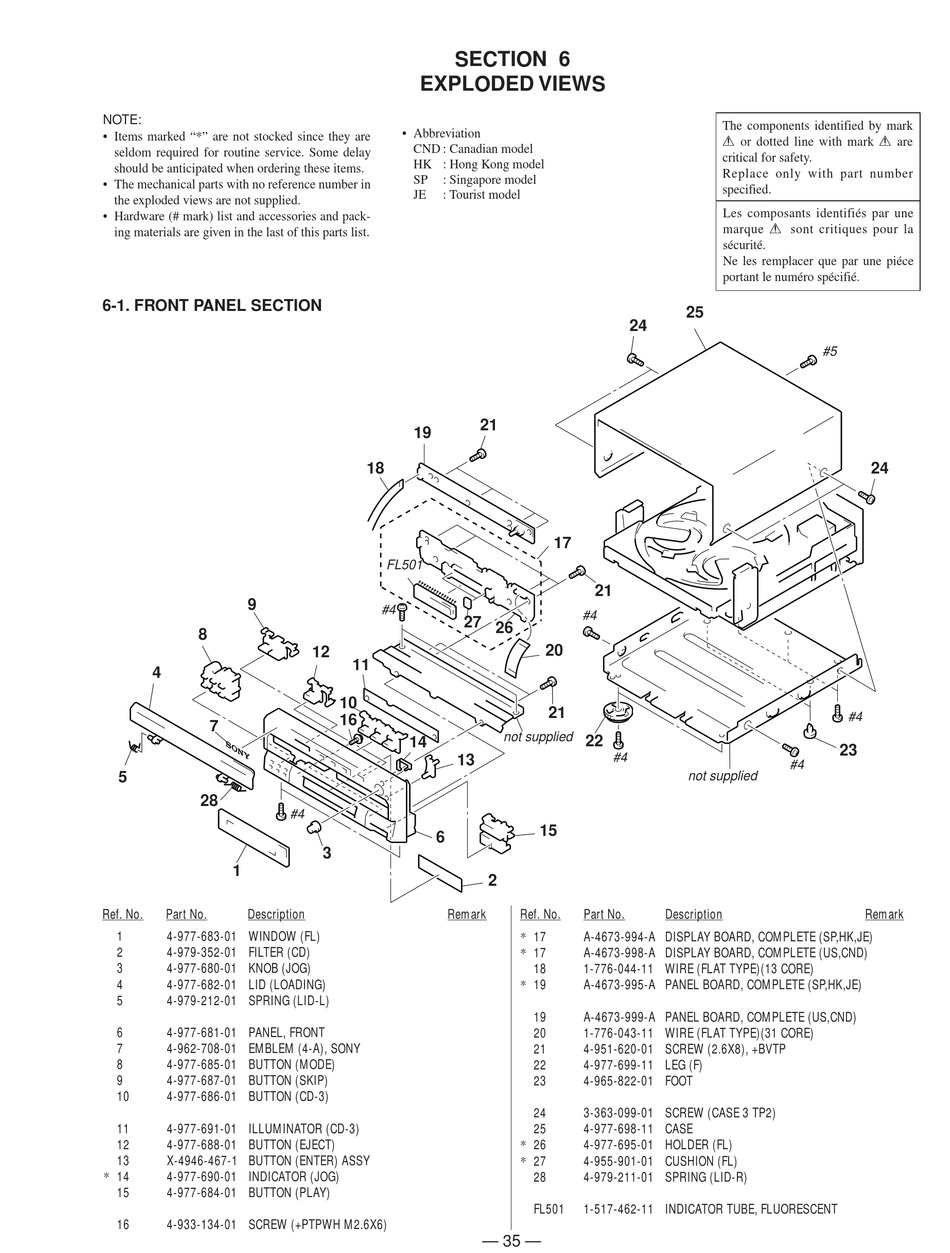

6-1. FRONT PANEL SECTION
9
8
4
7
5
28
1
Ref. No.
Part No.
Description
1
4-977-683-01 WINDOW (FL)
2
4-979-352-01 FILTER (CD)
3
4-977-680-01 KNOB (JOG)
4
4-977-682-01 LID (LOADING)
5
4-979-212-01 SPRING (LID-L)
6
4-977-681-01 PANEL, FRONT
7
4-962-708-01 EMBLEM (4-A), SONY
8
4-977-685-01 BUTTON (MODE)
9
4-977-687-01 BUTTON (SKIP)
10
4-977-686-01 BUTTON (CD-3)
11
4-977-691-01 ILLUMINATOR (CD-3)
12
4-977-688-01 BUTTON (EJECT)
13
X-4946-467-1 BUTTON (ENTER) ASSY
* 14
4-977-690-01 INDICATOR (JOG)
15
4-977-684-01 BUTTON (PLAY)
16
4-933-134-01 SCREW (+PTPWH M2.6X6)
SECTION 6
EXPLODED VIEWS
• Abbreviation
CND : Canadian model
HK : Hong Kong model
SP
: Singapore model
JE
: Tourist model
19
18
FL501
#4
27 26
12
11
10
16
14
13
#4
6
3
Remark
24
21
17
21
#4
20
21
not supplied
22
#4
15
2
Ref. No.
Part No.
* 17
A-4673-994-A DISPLAY BOARD, COMPLETE (SP,HK,JE)
* 17
A-4673-998-A DISPLAY BOARD, COMPLETE (US,CND)
18
1-776-044-11 WIRE (FLAT TYPE)(13 CORE)
* 19
A-4673-995-A PANEL BOARD, COMPLETE (SP,HK,JE)
19
A-4673-999-A PANEL BOARD, COMPLETE (US,CND)
20
1-776-043-11 WIRE (FLAT TYPE)(31 CORE)
21
4-951-620-01 SCREW (2.6X8), +BVTP
22
4-977-699-11 LEG (F)
23
4-965-822-01 FOOT
24
3-363-099-01 SCREW (CASE 3 TP2)
25
4-977-698-11 CASE
* 26
4-977-695-01 HOLDER (FL)
* 27
4-955-901-01 CUSHION (FL)
28
4-979-211-01 SPRING (LID-R)
FL501
1-517-462-11 INDICATOR TUBE, FLUORESCENT
— 35 —
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
25
#5
23
#4
not supplied
Description
24
#4
Remark
