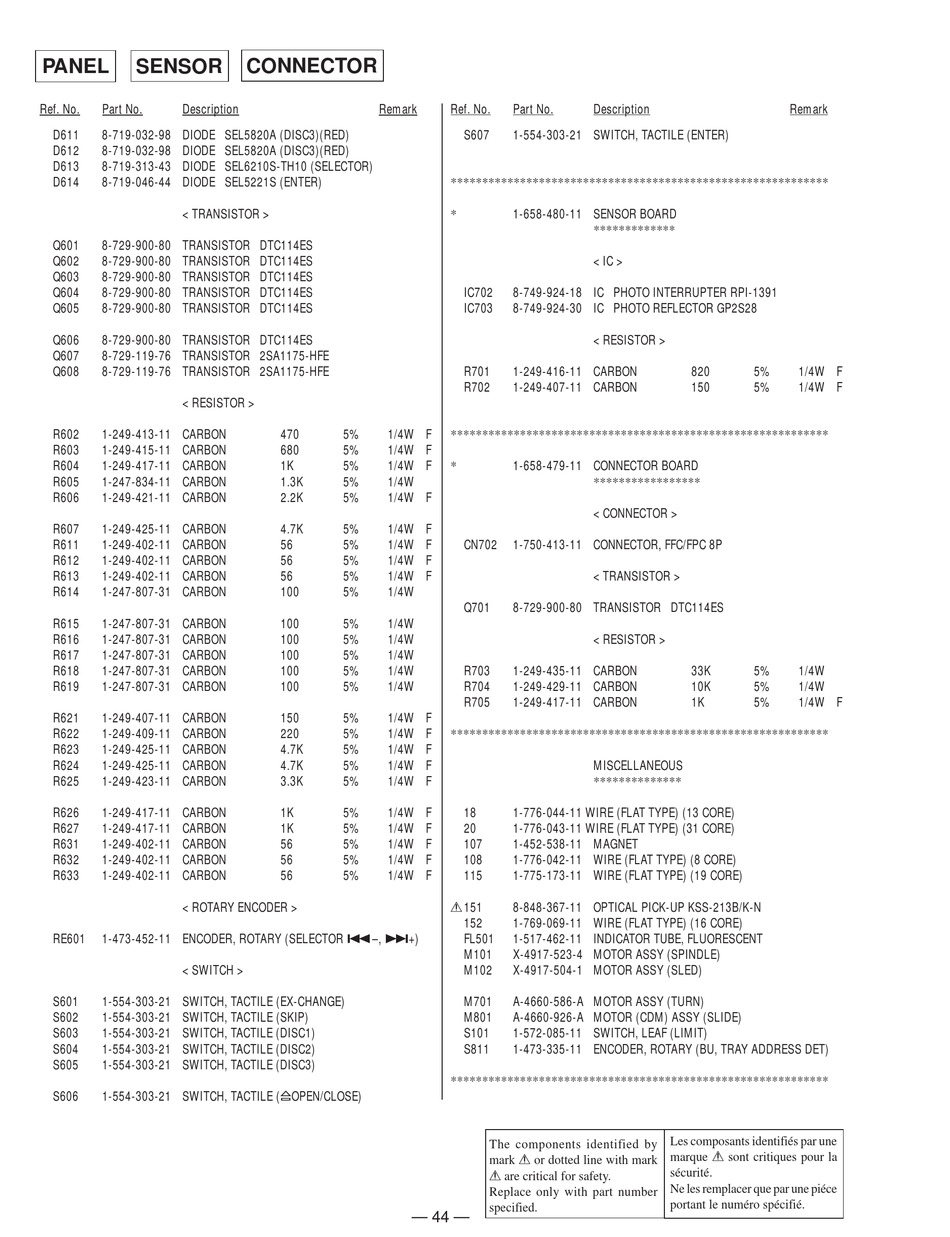

Sony CDP-M7 Service Manual page 30

PANEL SENSOR
Ref. No. Part No. Description
D611 8-719-032-98 DIODE SEL5820A (DISC3)(RED)
D612 8-719-032-98 DIODE SEL5820A (DISC3)(RED)
D613 8-719-313-43 DIODE SEL6210S-TH10 (SELECTOR)
D614 8-719-046-44 DIODE SEL5221S (ENTER)
< TRANSISTOR >
Q601 8-729-900-80 TRANSISTOR DTC114ES
Q602 8-729-900-80 TRANSISTOR DTC114ES
Q603 8-729-900-80 TRANSISTOR DTC114ES
Q604 8-729-900-80 TRANSISTOR DTC114ES
Q605 8-729-900-80 TRANSISTOR DTC114ES
Q606 8-729-900-80 TRANSISTOR DTC114ES
Q607 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q608 8-729-119-76 TRANSISTOR 2SA1175-HFE
< RESISTOR >
R602 1-249-413-11 CARBON
R603 1-249-415-11 CARBON
R604 1-249-417-11 CARBON
R605 1-247-834-11 CARBON
R606 1-249-421-11 CARBON
R607 1-249-425-11 CARBON
R611 1-249-402-11 CARBON
R612 1-249-402-11 CARBON
R613 1-249-402-11 CARBON
R614 1-247-807-31 CARBON
R615 1-247-807-31 CARBON
R616 1-247-807-31 CARBON
R617 1-247-807-31 CARBON
R618 1-247-807-31 CARBON
R619 1-247-807-31 CARBON
R621 1-249-407-11 CARBON
R622 1-249-409-11 CARBON
R623 1-249-425-11 CARBON
R624 1-249-425-11 CARBON
R625 1-249-423-11 CARBON
R626 1-249-417-11 CARBON
R627 1-249-417-11 CARBON
R631 1-249-402-11 CARBON
R632 1-249-402-11 CARBON
R633 1-249-402-11 CARBON
< ROTARY ENCODER >
RE601 1-473-452-11 ENCODER, ROTARY (SELECTOR =–, ++)
< SWITCH >
S601 1-554-303-21 SWITCH, TACTILE (EX-CHANGE)
S602 1-554-303-21 SWITCH, TACTILE (SKIP)
S603 1-554-303-21 SWITCH, TACTILE (DISC1)
S604 1-554-303-21 SWITCH, TACTILE (DISC2)
S605 1-554-303-21 SWITCH, TACTILE (DISC3)
S606 1-554-303-21 SWITCH, TACTILE (§OPEN/CLOSE)
CONNECTOR
Remark
470 5% 1/4W F
680 5% 1/4W F
1K 5% 1/4W F
1.3K 5% 1/4W
2.2K 5% 1/4W F
4.7K 5% 1/4W F
56 5% 1/4W F
56 5% 1/4W F
56 5% 1/4W F
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
100 5% 1/4W
150 5% 1/4W F
220 5% 1/4W F
4.7K 5% 1/4W F
4.7K 5% 1/4W F
3.3K 5% 1/4W F
1K 5% 1/4W F
1K 5% 1/4W F
56 5% 1/4W F
56 5% 1/4W F
56 5% 1/4W F
— 44 —
Ref. No. Part No. Description
S607 1-554-303-21 SWITCH, TACTILE (ENTER)
************************************************************
1-658-480-11 SENSOR BOARD
*
*************
< IC >
IC702 8-749-924-18 IC PHOTO INTERRUPTER RPI-1391
IC703 8-749-924-30 IC PHOTO REFLECTOR GP2S28
< RESISTOR >
R701 1-249-416-11 CARBON
R702 1-249-407-11 CARBON
************************************************************
1-658-479-11 CONNECTOR BOARD
*
*****************
< CONNECTOR >
CN702 1-750-413-11 CONNECTOR, FFC/FPC 8P
< TRANSISTOR >
Q701 8-729-900-80 TRANSISTOR DTC114ES
< RESISTOR >
R703 1-249-435-11 CARBON
R704 1-249-429-11 CARBON
R705 1-249-417-11 CARBON
************************************************************
MISCELLANEOUS
**************
18 1-776-044-11 WIRE (FLAT TYPE) (13 CORE)
20 1-776-043-11 WIRE (FLAT TYPE) (31 CORE)
107 1-452-538-11 MAGNET
108 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
115 1-775-173-11 WIRE (FLAT TYPE) (19 CORE)
! 151 8-848-367-11 OPTICAL PICK-UP KSS-213B/K-N
152 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
FL501 1-517-462-11 INDICATOR TUBE, FLUORESCENT
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
M701 A-4660-586-A MOTOR ASSY (TURN)
M801 A-4660-926-A MOTOR (CDM) ASSY (SLIDE)
S101 1-572-085-11 SWITCH, LEAF (LIMIT)
S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)
************************************************************
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Remark
820 5% 1/4W F
150 5% 1/4W F
33K 5% 1/4W
10K 5% 1/4W
1K 5% 1/4W F
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
