SECTION 3

DISASSEMBLY

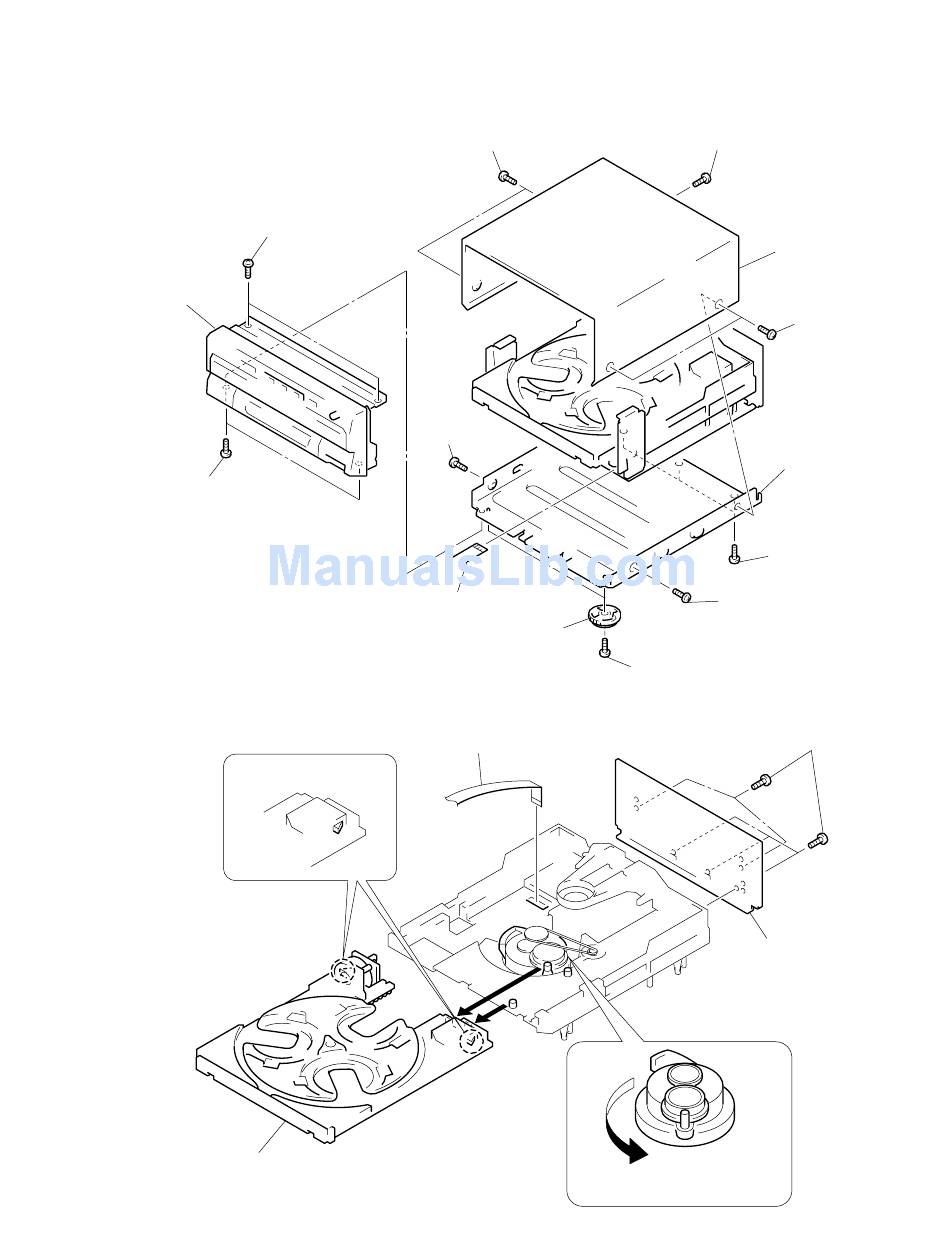

3-1. CASE, FRONT PANEL ASSEMBLY AND CHASSIS

1 Two screws
3 Screw
(CASE 3 TP2)
(BVTT 3X8)
6 Two screws
(BVTP 3X10)
4 Case
8 Front panel
assemby
2 Two screws
(CASE 3 TP2)
!™ Two screws
(BVTP 3X10)
!¢ Chassis
5 Two screws
(BVTP 3X10)
!£ Two screws
(BVTP 3X10)
7 Wire (FLAT TYPE)
!¡ Two screws
(31 CORE)
(BVTP 3X10)
!º Leg (F)
9 Two screws
(BVTP 3X10)

3-2. BACK PANEL AND TRAY

3 Flat type wire (8 CORE)
6 Five screws (BVTP 3X10)
(RELAY board, CN702)
4 Two claws
7 Back panel
2 Pull-out the disc tray.
1 Turn the cam to the direction
5 Remove the disc tray.
of arrow from the bottom side.
— 7 —
