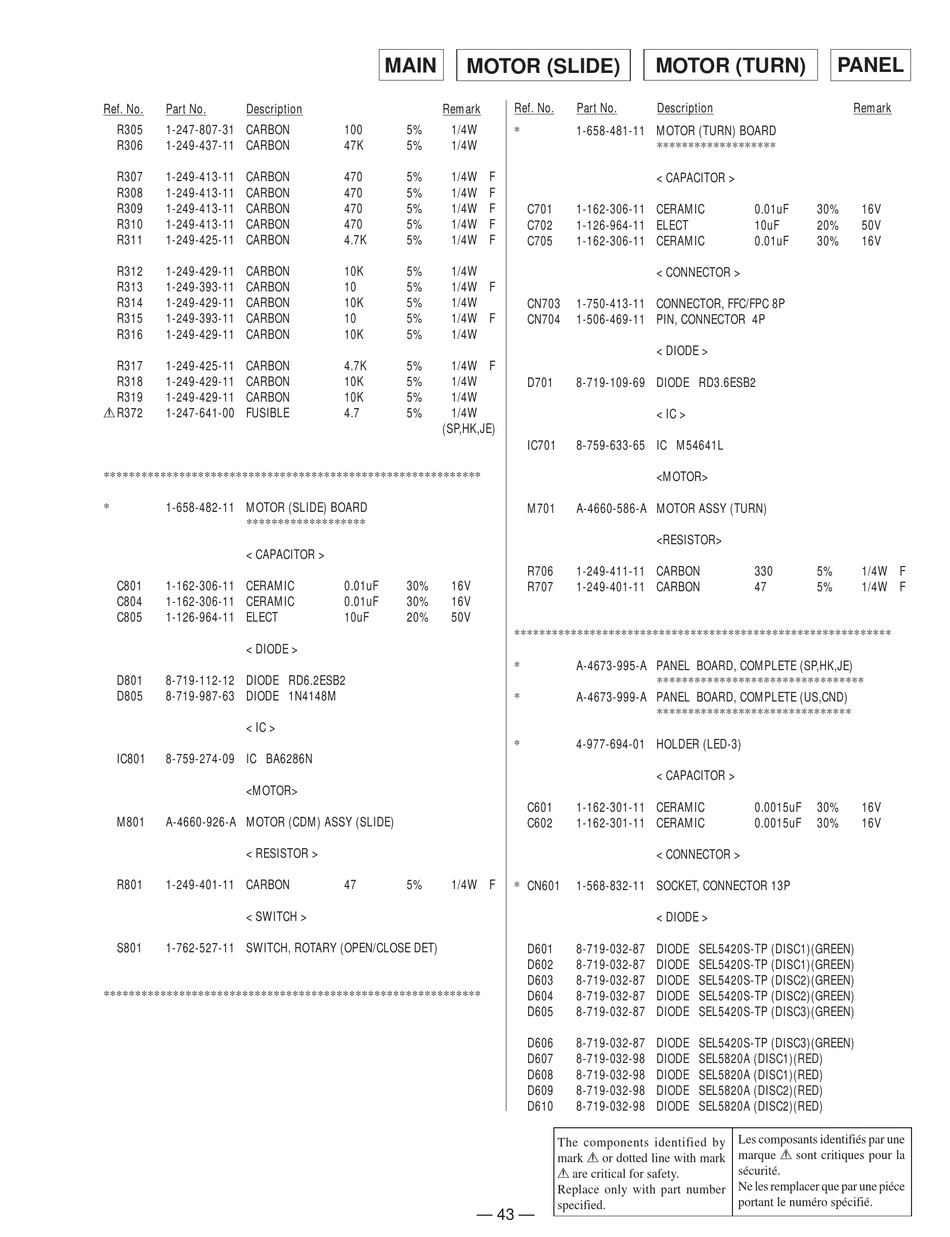

Sony CDP-M7 Service Manual page 29

Ref. No. Part No. Description
R305 1-247-807-31 CARBON
R306 1-249-437-11 CARBON
R307 1-249-413-11 CARBON
R308 1-249-413-11 CARBON
R309 1-249-413-11 CARBON
R310 1-249-413-11 CARBON
R311 1-249-425-11 CARBON
R312 1-249-429-11 CARBON
R313 1-249-393-11 CARBON
R314 1-249-429-11 CARBON
R315 1-249-393-11 CARBON
R316 1-249-429-11 CARBON
R317 1-249-425-11 CARBON
R318 1-249-429-11 CARBON
R319 1-249-429-11 CARBON
! R372 1-247-641-00 FUSIBLE
************************************************************
1-658-482-11 MOTOR (SLIDE) BOARD
*
*******************
< CAPACITOR >
C801 1-162-306-11 CERAMIC
C804 1-162-306-11 CERAMIC
C805 1-126-964-11 ELECT
< DIODE >
D801 8-719-112-12 DIODE RD6.2ESB2
D805 8-719-987-63 DIODE 1N4148M
< IC >
IC801 8-759-274-09 IC BA6286N
<MOTOR>
M801 A-4660-926-A MOTOR (CDM) ASSY (SLIDE)
< RESISTOR >
R801 1-249-401-11 CARBON
< SWITCH >
S801 1-762-527-11 SWITCH, ROTARY (OPEN/CLOSE DET)
************************************************************
MAIN MOTOR (SLIDE)
Ref. No.
Remark
100 5% 1/4W
*
47K 5% 1/4W
470 5% 1/4W F
470 5% 1/4W F
470 5% 1/4W F
470 5% 1/4W F
4.7K 5% 1/4W F
10K 5% 1/4W
10 5% 1/4W F
10K 5% 1/4W
10 5% 1/4W F
10K 5% 1/4W
4.7K 5% 1/4W F
10K 5% 1/4W
10K 5% 1/4W
4.7 5% 1/4W
(SP,HK,JE)
0.01uF 30% 16V
0.01uF 30% 16V
10uF 20% 50V
************************************************************
*
*
*
47 5% 1/4W F
* CN601
— 43 —
MOTOR (TURN)
Part No. Description
1-658-481-11 MOTOR (TURN) BOARD
*******************
< CAPACITOR >
C701 1-162-306-11 CERAMIC
C702 1-126-964-11 ELECT
C705 1-162-306-11 CERAMIC
< CONNECTOR >
CN703 1-750-413-11 CONNECTOR, FFC/FPC 8P
CN704 1-506-469-11 PIN, CONNECTOR 4P
< DIODE >
D701 8-719-109-69 DIODE RD3.6ESB2
< IC >
IC701 8-759-633-65 IC M54641L
<MOTOR>
M701 A-4660-586-A MOTOR ASSY (TURN)
<RESISTOR>
R706 1-249-411-11 CARBON
R707 1-249-401-11 CARBON
A-4673-995-A PANEL BOARD, COMPLETE (SP,HK,JE)
*********************************
A-4673-999-A PANEL BOARD, COMPLETE (US,CND)
*******************************
4-977-694-01 HOLDER (LED-3)
< CAPACITOR >
C601 1-162-301-11 CERAMIC
C602 1-162-301-11 CERAMIC
< CONNECTOR >
1-568-832-11 SOCKET, CONNECTOR 13P
< DIODE >
D601 8-719-032-87 DIODE SEL5420S-TP (DISC1)(GREEN)
D602 8-719-032-87 DIODE SEL5420S-TP (DISC1)(GREEN)
D603 8-719-032-87 DIODE SEL5420S-TP (DISC2)(GREEN)
D604 8-719-032-87 DIODE SEL5420S-TP (DISC2)(GREEN)
D605 8-719-032-87 DIODE SEL5420S-TP (DISC3)(GREEN)
D606 8-719-032-87 DIODE SEL5420S-TP (DISC3)(GREEN)
D607 8-719-032-98 DIODE SEL5820A (DISC1)(RED)
D608 8-719-032-98 DIODE SEL5820A (DISC1)(RED)
D609 8-719-032-98 DIODE SEL5820A (DISC2)(RED)
D610 8-719-032-98 DIODE SEL5820A (DISC2)(RED)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
PANEL
Remark
0.01uF 30% 16V
10uF 20% 50V
0.01uF 30% 16V
330 5% 1/4W F
47 5% 1/4W F
0.0015uF 30% 16V
0.0015uF 30% 16V
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
