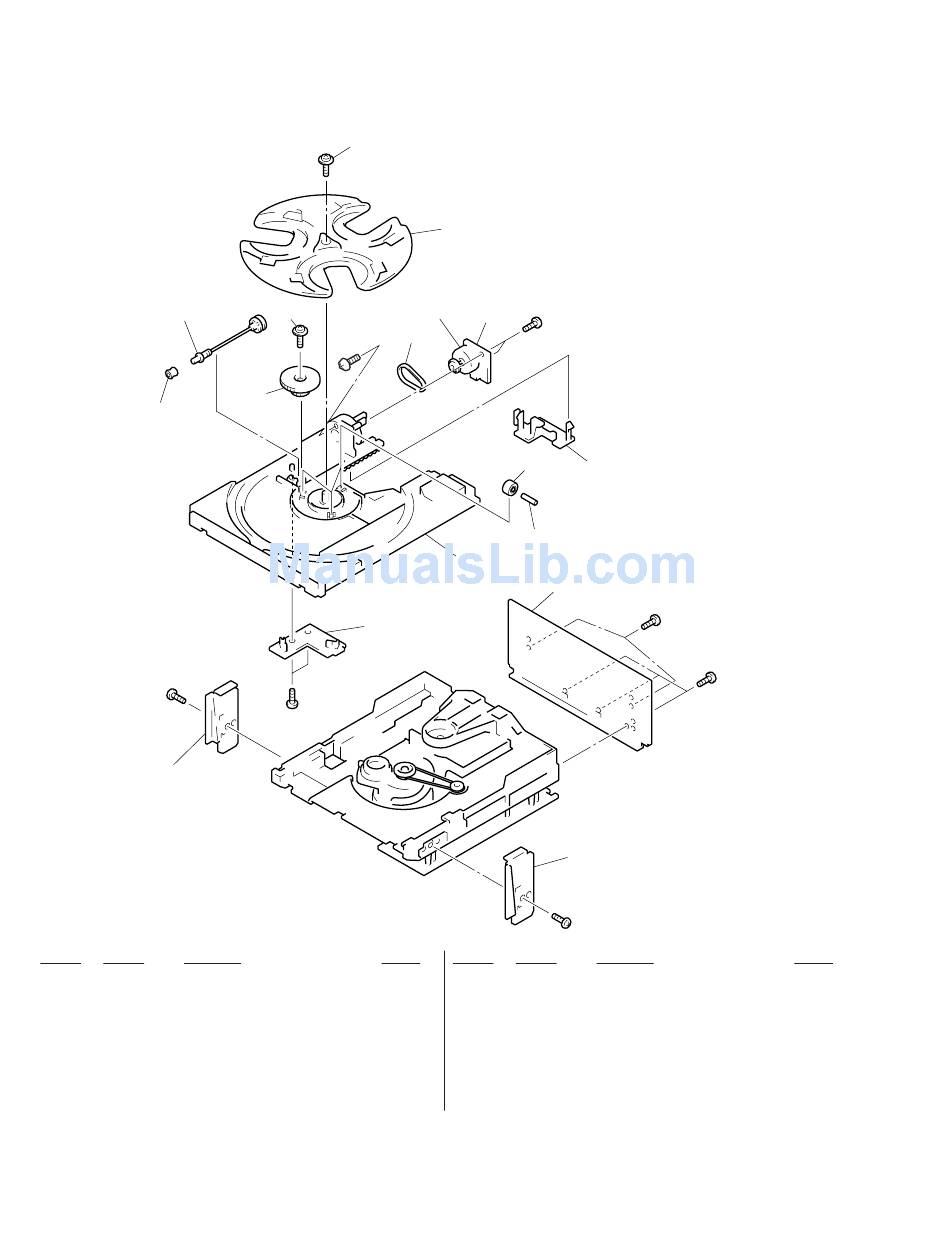

6-2. BACK PANEL AND DISC TABLE SECTION

53
63
#4
not supplied
Ref. No. Part No. Description
51 4-917-583-21 BRACKET, YOKE
52 4-977-945-01 TRAY (TURN)
53 X-4946-295-2 SHAFT ASSY, WORM
54 4-977-943-01 BELT (TURN)(1.2)
55 4-977-956-01 WHEEL, WORM
* 56 1-658-481-11 MOTOR (TURN) BOARD
57 4-977-944-01 TRAY (SLIDE)
* 58 4-977-697-11 PANEL, BACK (SP,HK,JE)
51
51 M701
54
#2
55
59
#3
Remark
— 36 —
52
56
#3
61
60
62
57
58
not supplied
#4
Ref. No. Part No. Description
* 58 4-977-697-21 PANEL, BACK (US,CND)
* 59 1-658-480-11 SENSOR BOARD
60 4-977-941-01 BEARING (WORM)
61 X-4924-457-1 ROLLER ASSY
62 4-934-376-01 SHAFT (ROLLER)
63 4-981-187-01 COLLAR (WORM)
M701 A-4660-586-A MOTOR ASSY (TURN)
#4
#4
Remark
