Wet & Dry Vacuum Cleaner
Model No. YLW-6201
Item No.:
900146
220 - 240Va.c. 50Hz
1400W Max
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YLW-6201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Piranha YLW-6201

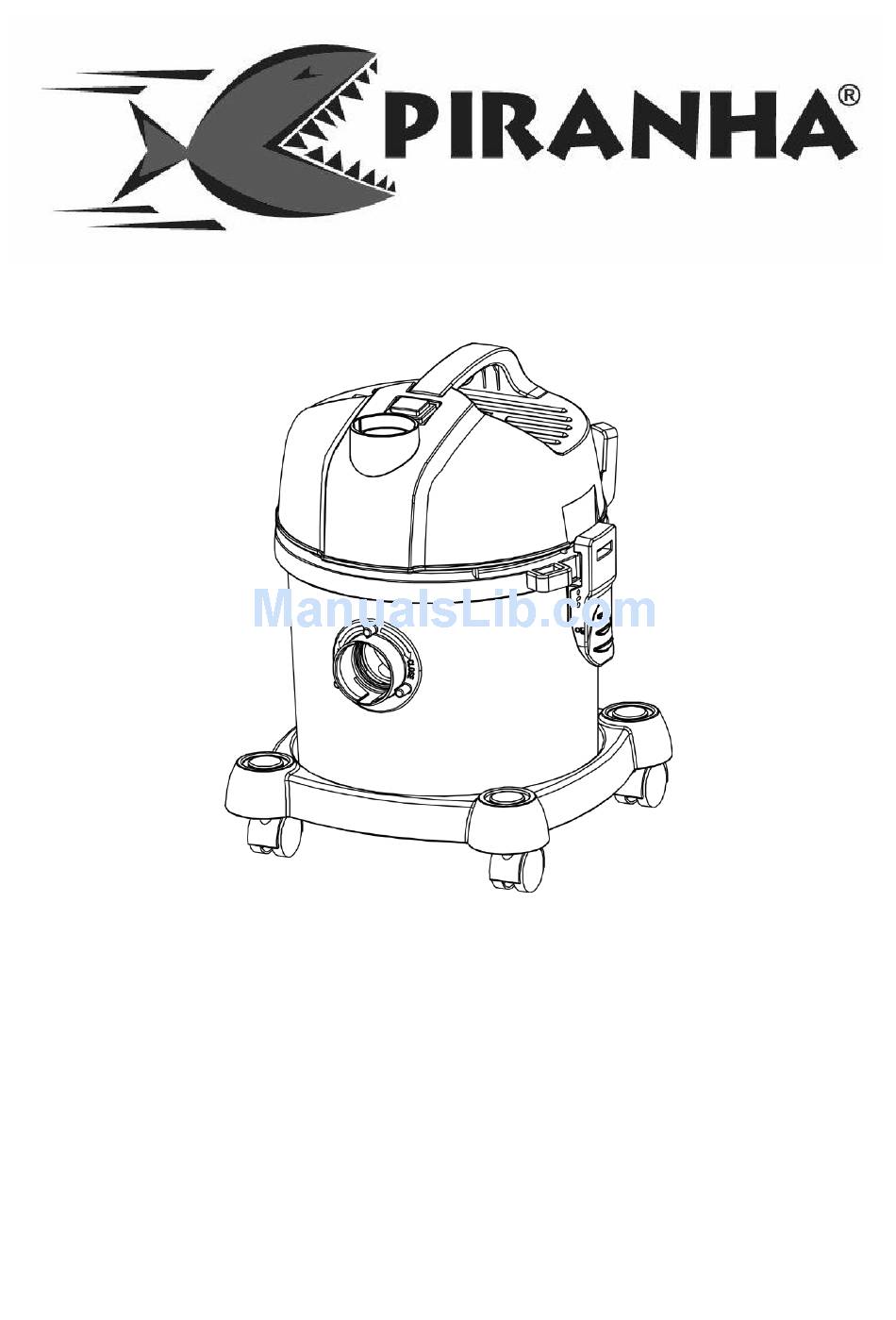

  • Page 1 Wet & Dry Vacuum Cleaner For Household Use Only Model No. YLW-6201 Item No.: 900146 220 - 240Va.c. 50Hz 1400W Max Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.
  • Page 2: Table Of Contents

    Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 5 Components ................6 Assembly Method ..............7 5.1 Castor Wheels ................7 5.2 Fitting Flexible Hose ..............8 5.3 Tube and Hose ................9 5.4 The Tools .................. 10 On / Off ...................
  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. Keep appliance out of reach of young children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment. DO NOT misuse the cord. Never pull the appliance by the cord or pull to disconnect it from the outlet. Instead, grasp the plug and pull to disconnect. DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects such as glass, nails, screws, coins, etc.
  • Page 5: Transporting Your Vacuum

    DO use only as described in this manual. Use only manufacturer's recommended attachments. DO Keep cord away from heated surfaces. DO Keep all openings free of dust, lint. hair, and anything that may reduce airflow. DO use extra care when vacuuming on stairs. DO keep your work area well lit.
  • Page 6: Components

    Components Floor Head Carrying Handle Vacuum Tube Motor to Canister Lock Latch Vacuum Relief Valve Power Cord Hose Handle Caster Wheels Flexible Hose Dust Canister Power On / Off Button Hose Coupling / Air inlet Page 6 of 19...
  • Page 7: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories Castor Wheels After unpacking you new vacuum cleaner, you will need to fit the castor wheels. These can be found inside the dust canister. To access, unclip the two “Motor to Canister Lock”...
  • Page 8: Fitting Flexible Hose

    Insert a castor wheels into one of the four holes located in the base and push in hard all the way ensuring they are secured in place. Repeat for the other three castor wheels. Turn the vacuum cleaner base upright and rest on the castor wheels. Refit the large dust filter and then refit the top motor housing, aligning the side latches, and then lock down.
  • Page 9: Tube And Hose

    Tube and Hose The Tube is made in three parts. To assemble fit one length of tube into the end of the next tube until all three pieces are joined. Note: The tube section with the Hook attached must be the lower section. This is used to hook onto the side of the vacuum cleaner for storage.
  • Page 10: The Tools

    The Tools Crevice / Brush tool Crevice tool is for cleaning furniture and into corners. Swing down for brush Brush tool can be used for general applications such as bookshelves, sofa’s curtains, etc. On / Off To turn the vacuum cleaner ON, press the On / Off switch to the On position marked “I”...
  • Page 11: Floor Head

    Floor Head The floor head has different attachments depending on the floor type. For Hard Floors such as timber or tiled, etc., use the attachment (1). To attach, locate the head attachment and then push to click on. Note: Ensure the brush is towards the front and the rubber squeegee towards the back.
  • Page 12: Safety Device Operation

    10 Safety Device Operation NOTE: The vacuum has an overheating protection device. It will automatically switch off power to the motor if it overheats. eg. from blocked nozzles, full dust container or unclean filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down.
  • Page 13: Emptying The Dust Canister - Dry Use

    13 Emptying the Dust Canister – Dry Use Empty the Dust Canister as frequently as possible or when the suction power is reduced. Remove the top off the Dust Canister by unclipping the two “Motor to Canister Lock” Latches (one either side) then lift the motor housing off the dust canister.
  • Page 14: Air Outlet

    Remove the large filter and then empty the canister by tipping out the water. Dry all components thoroughly after use. Note: The inside of the Dust Canister can be wiped clean or washed in warm soapy water and dried thoroughly. (Refer Maintenance Section).
  • Page 15: User Maintenance

    16 User Maintenance WARNING: The plug must be removed from the power socket before any maintenance or replacement. NOTE: To maximise the performance of your vacuum cleaner, you should clean your filters regularly. If the filters are broken or worn, replace them before continuing to use the vacuum.
  • Page 16: Pre Motor Filter

    DO NOT use the Vacuum Cleaner without the filter in place. NOTE: Never use the vacuum cleaner with a wet or damp filter. (Wet Vacuuming excepted) Refit the Internal Filter to the vacuum cleaner ensuring it is positioned and seated correctly. 16.1.2 Pre Motor Filter The foam cylindrical pre-motor filter is located under the motor housing.
  • Page 17: Cleaning The Dust Canister

    16.1.3 Cleaning the Dust Canister The dust canister can be cleaned as follows: Separate the Dust Canister from the Vacuum Cleaner as previously described. Wash the Dust Canister in warm mild soapy water, rinse in clean fresh cold water and let fully dry. DO NOT place in a dishwasher.
  • Page 18: Troubleshooting

    17 Troubleshooting Noisy operation Clean the Filters and empty the Dust Canister Clean the Filters and empty the Dust Canister. Check for blockages and unblock The Suction Relief Slide on the hose handle may be Reduced Suction Open. If so, Slide it closed. No Suction The Water Float may be blocking the air intake.
  • Page 19: Guarantee

    18 Guarantee WHAT’S COVERED H.E. Group Pty Ltd guarantees this product for a full replacement or refund for a period of twelve months from the date of purchase. This guarantee is valid with the presentation of the original proof of purchase receipt from the store from which you purchased the product in order to establish the purchase price and provide the correct value of the product paid for by you.
