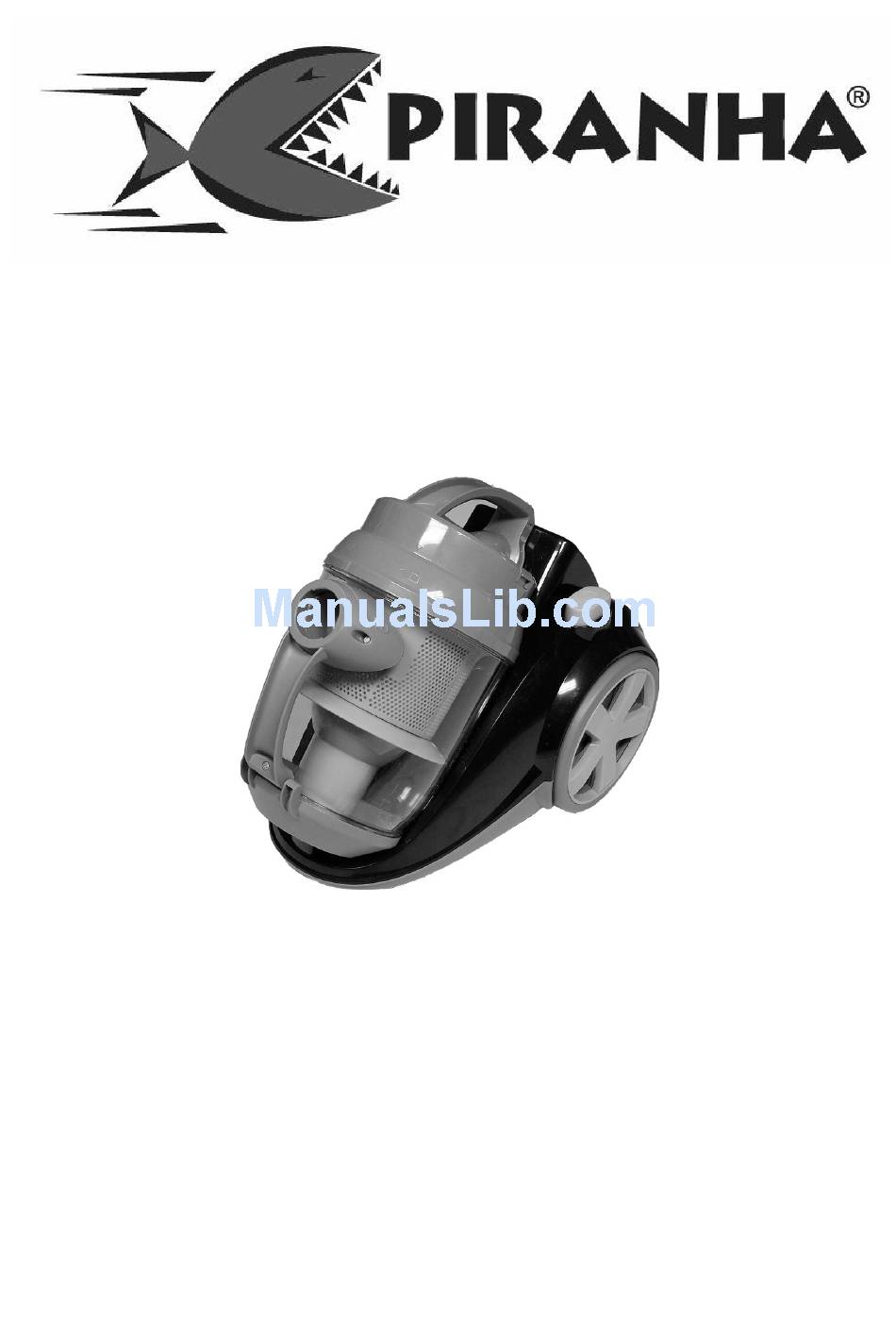

Model No.: YLC6206-200
Item No.: 900492
240Va.c. 50Hz
2400W Max
Rev 2
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
Piranha Sky

Vacuum Cleaner

For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky YLC6206-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Piranha Sky YLC6206-200

Summary of Contents for Piranha Sky YLC6206-200

  • Page 1: Vacuum Cleaner

    Piranha Sky Vacuum Cleaner For Household Use Only Model No.: YLC6206-200 Item No.: 900492 240Va.c. 50Hz 2400W Max Rev 2 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings ....................... 3 Safety Direction .................... 3 Transporting your Vacuum ................. 6 Specification ....................6 Schematic Wiring Diagram ................6 Components ....................7 Assembly Method ..................8 ............... 8 Fitting Flexible Hose ................ 8 Hose Removal ........ 8 Fitting Telescopic Tube and Accessories ..................

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
  • Page 5 DO keep hair, loose clothing, fingers, feet and body parts away from openings or moving parts. DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO turn off controls before you connect or disconnect the appliance to or from the mains supply.

  • Page 6: Transporting Your Vacuum

    This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.

  • Page 7: Components

    Components Carry Handle Brush Tool Dust Canister Tool Holder Hose Connector Suction Strength Control Slide Hose Hose Handle Floor Head Cord and Plug Upholstery Tool Cord Rewind Button Hose Coupling Exhaust Grille & Filter Telescopic Tube Dust Canister Release Button Crevice Tool On/Off Switch Button Page 7 of 18...

  • Page 8: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. Ensure all Filters are fitted, and fitted correctly before using. Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose (7) into the Hose Connector (3) and rotate clockwise while pushing inward until it locks into place.

  • Page 9: Tools

    Tools The Crevice tool is used for cleaning down the side of sofas and into corners, etc. The Upholstery tool is used for cleaning sofas and curtains, etc. The Brush tool is used for cleaning furniture and books etc. Tool Holder There is a convenient tool holder which clips onto the telescopic tube where the Crevice tool,...

  • Page 10: Suction Relief Valve

    Suction Relief Valve The Suction Relief Valve is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head.

  • Page 11: Safety Devices Operation

    12 Safety Devices Operation NOTE: The motor has an overheating protection device built in. It will automatically switch off power to the motor if it overheats. e.g. from blocked nozzles, full dust Canister or uncleaned blocked filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down.

  • Page 12: User Maintenance

    • To close the trap door, close it manually until it clips shut. Note: Brush the inside of the dust canister with a small brush or wash. Refer to section “Cleaning Filters”. 14 User Maintenance WARNING: The plug must be removed from the power socket before any maintenance or replacement.

  • Page 13: Pre Motor Foam Filter

    14.1.1 Pre Motor Foam Filter Remove the Dust Canister as described previously. The Pre Motor Foam Filter is located in the top section of the Dust Canister lid. To access the foam filter, first remove the top section of the dust canister as follows: 1.
  • Page 14 3. Remove the Foam Filter assembly by grasping the centre plastic spigot and then pulling it out of its recess. 4. Remove the Foam Filter by pulling it out of its holder. Wash the foam filter in warm mild soapy water, rinse in clean fresh cold water and let dry.

  • Page 15: Main Filter

    14.1.3 Main Filter Remove the Dust Canister from the vacuum cleaner described previously. Remove the dust canister body by rotating it to unlock and pull straight down. Remove the end of the filter assembly by rotating it to unlock it and pull down.

  • Page 16: Exhaust Air Filter

    DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. Refit when dry (or replace with a new one). NOTE: Never use the vacuum cleaner with wet or damp filters. Using wet or damp filters will damage the filters, may cause serious damage to the vacuum cleaner motor and will void your warranty.

  • Page 17: Cleaning The Vacuum Cleaner And Components

    14.2 Cleaning the Vacuum Cleaner and Components Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. Note: When the filters are removed, the filter assemblies and holders may also be washed in mild detergent.

  • Page 18: Warranty Against Defect

    16 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You H.E. Group Pty Ltd (“us” “we” or “our”) are entitled to a replacement or refund for a warrants this good for a full replacement or major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
