Cyclonic Vacuum Cleaner
Model No.: YL-60-120
Item No.: 900235
220 - 240Va.c. 50Hz
1400W Max
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
Piccolo
For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YL-60-120 and is the answer not in the manual?

Questions and answers

Related Manuals for Piranha YL-60-120

Summary of Contents for Piranha YL-60-120

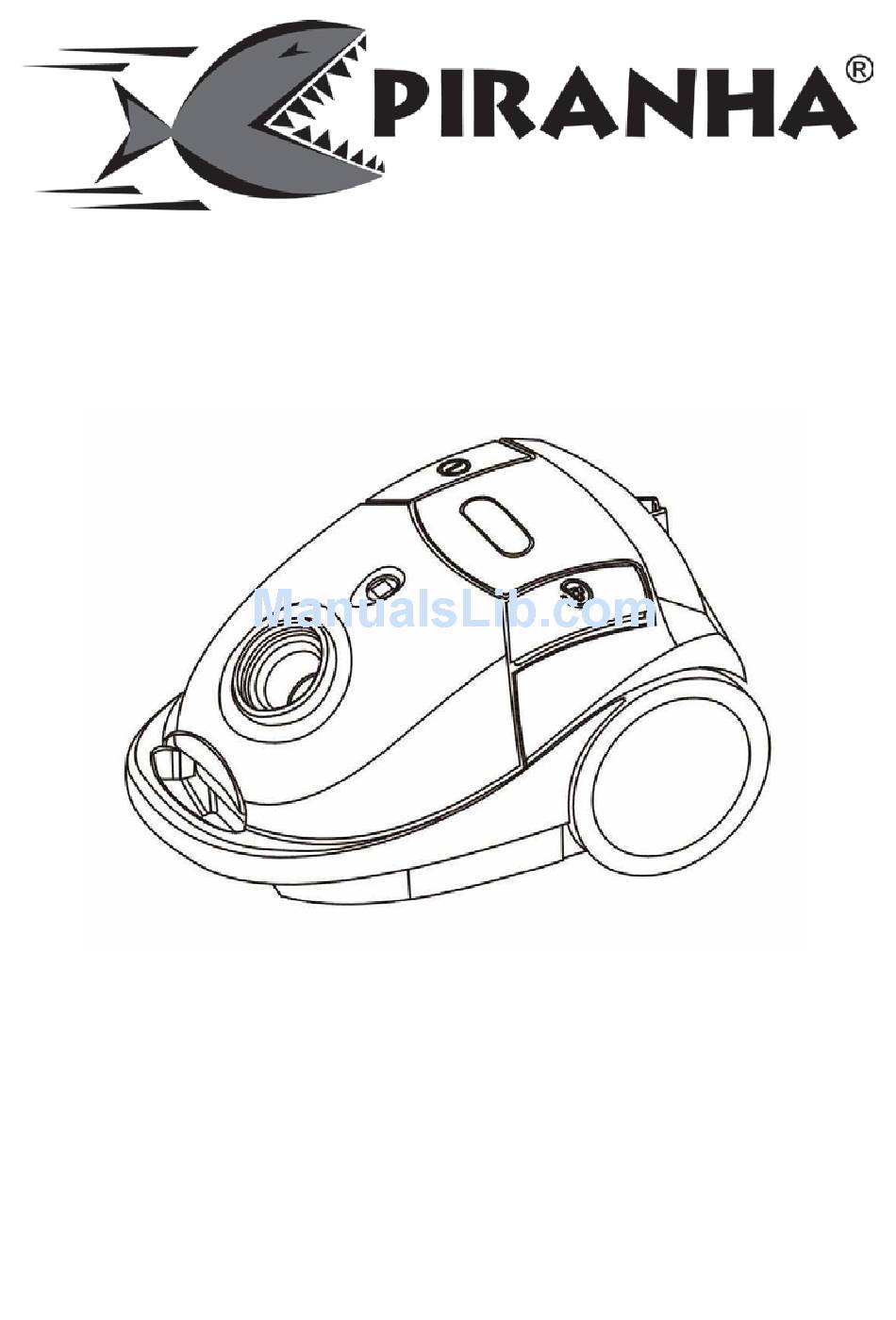

  • Page 1 Piccolo Cyclonic Vacuum Cleaner For Household Use Only Model No.: YL-60-120 Item No.: 900235 220 - 240Va.c. 50Hz 1400W Max Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 4 Specification ................4 Schematic Wiring Diagram ............. 4 Components ................5 Assembly Method ..............6 7.1 Fitting Flexible Hose ..............6 7.2 Hose Removal ................6 7.3 Fitting Tube and Accessories ..........6 7.4 Tools ..................

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 4: Transporting Your Vacuum

    DO NOT use the vacuum cleaner if the power cord, switch or motor is damaged Do not repair by yourself. It must be repaired by the manufacturer, our customer service department or a similarly qualified person. DO NOT use the vacuum cleaner to pick up large objects that are likely to cause damage.

  • Page 5: Components

    Components Hose Coupling / Air inlet Power On / Off Button Carry Handle Cord Rewind Button Dust Bag Compartment Release Button Dust Full Indicator Wheels Dust Bag Page 5 of 14...

  • Page 6: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Hose Coupling / Air inlet hole and push inward until it locks into place.

  • Page 7: Tool Holder

    Tool Holder Clip the tool holder onto the vacuum tube and in turn, clip the tool into the holder. Power and Cord • Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply. •...

  • Page 8: Floor Head

    Floor Head The floor head is adjustable to suit either hard floors or carpets. Press the lever down to Extend the brush Press the other lever down to Retract the brush • Hard Floors – Extend Brush Laminate flooring, tiles, vinyl etc. •...

  • Page 9: Dust Full Indicator

    11 Dust Full Indicator When the dust bag is full or requires cleaning a Red indicator will be seen through the small window on the top of the vacuum cleaner. Ultimately, the dust bag should be emptied and cleaned periodically before the indicator shows.

  • Page 10: User Maintenance

    Hold the dust bag over a rubbish bin and then slide the clip off the end of the bag. Empty the contents into a rubbish bin. Slide the clip back on to the bag, refit to the Bag holder then replace in vacuum cleaner.

  • Page 11: Cleaning The Dust Bag And Filters

    13.1 Cleaning the Dust Bag and Filters 13.1.1 Dust Bag Important Note – the Dust Bag must be cleaned regularly for best suction performance and to prevent over-heating and damage to your vacuum cleaner. Remove the Dust bag as previously described Empty the Dust Bag and then wash in warm mild soapy water, rinse in clean fresh cold water and let dry.

  • Page 12: Exhaust Filter

    Wash the Pre Motor Filter in warm mild soapy water, rinse in clean fresh cold water and lay out flat to dry. DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. NOTE: Never use the vacuum cleaner with a wet or damp filter.

  • Page 13: Cleaning The Vacuum Cleaner And Components

    13.2 Cleaning the Vacuum Cleaner and Components Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components and accessories.

  • Page 14: Guarantee

    15 Guarantee WHAT’S COVERED H.E. Group Pty Ltd guarantees this product for a full replacement or refund for a period of twelve months from the date of purchase. This guarantee is valid with the presentation of the original proof of purchase receipt from the store from which you purchased the product in order to establish the purchase price and provide the correct value of the product paid for by you.
