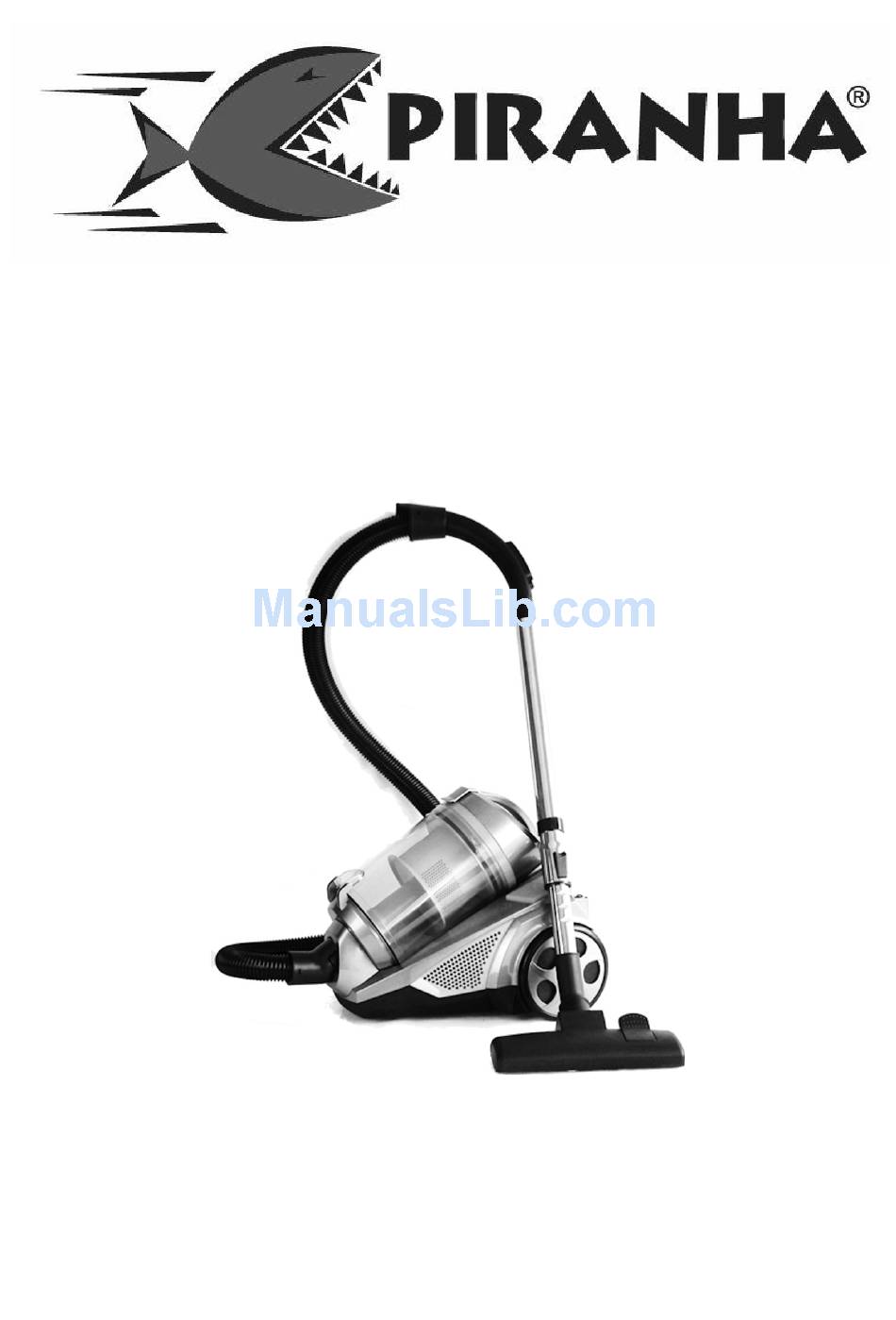

Model No.: KPA08ES-5
Item No.: 900427
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

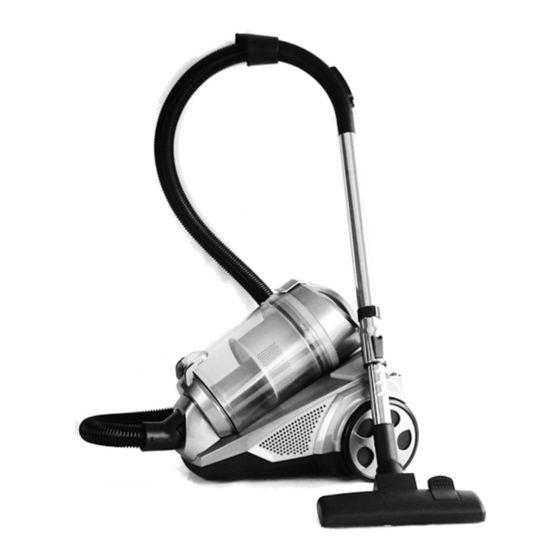

Piranha

Vacuum Cleaner

For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPA08ES-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Piranha KPA08ES-5

Summary of Contents for Piranha KPA08ES-5

  • Page 1: Vacuum Cleaner

    Piranha Vacuum Cleaner For Household Use Only Model No.: KPA08ES-5 Item No.: 900427 Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 6 Components ................7 Assembly Method ..............8 Fitting Flexible Hose ..............8 Hose Removal ................8 Fitting Telescopic Tube and Accessories ........8 Tools ..................... 9 Tool Holder................... 9 Power and Power Cord ............

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
  • Page 5 DO keep hair, loose clothing, fingers, feet and body parts away from openings or moving parts. DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO turn off controls before you connect or disconnect the appliance to or from the mains supply.

  • Page 6: Transporting Your Vacuum

    This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.

  • Page 7: Components

    Components Dust Canister Telescopic Tube Carry Handle Floor Head Exhaust Grille Hose Handle Hose Tube Parking Hook Tool Holder Power On – Off Button Upholstery Tool Variable Speed Control Crevice Tool Suction Relief valve Hose Coupling Cord Rewind Button Note: The specifications and/or components of this appliance are subject to change without prior notice Page 7 of 20...

  • Page 8: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. Ensure all Filters are fitted, and fitted correctly before using. Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Hose Connector hole and push inward until it locks into place.

  • Page 9: Tools

    Tools Crevice tool with Swivel Brush • Crevice tool is for cleaning furniture and into corners. • Brush attachment can be used for general applications Upholstery Tool • The Upholstery tool is used for cleaning sofas and curtains, etc. 5.5 Tool Holder The vacuum cleaner comes with a tool holder which clips onto the telescopic tube.

  • Page 10: Power And Power Cord

    Power and Power Cord • Before using the appliance, pull to unwind the cord fully up to the yellow mark and insert the plug into the power supply. The yellow mark on the cord shows the ideal cord length. • Do not extend the cord past the red mark.

  • Page 11: Suction Relief Slide

    Suction Relief Slide The Suction Relief Valve is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head.

  • Page 12: Safety Devices Operation

    10 Safety Devices Operation NOTE: The motor has an overheating protection device built in. It will automatically switch off power to the motor if it overheats. e.g. from blocked nozzles, full dust Canister or uncleaned blocked filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down.

  • Page 13: User Maintenance

    Alternatively, the Lid and internal mechanism can be removed in one piece to aide in cleaning of the duct canister. To remove, hold the dust canister body firmly and rotate the lid then pull straight out as shown. • Brush the inside of the dust canister with a small brush or wash Refer to section “Cleaning”.

  • Page 14: Cleaning Filters

    12.1 Cleaning Filters Important Note – the Filters must be cleaned regularly for best suction performance and to prevent over-heating and damage to your vacuum cleaner. Cleaning is best done at the same time when emptying the dust Canister after you have finish vacuuming for the day. NOTE: Never use the vacuum cleaner with wet or damp filters or without ALL filters fitted.
  • Page 15 Remove the filter by grasping frame of the filter and pull straight up and out. Turn the filter over and remove the black foam filter by grasping with your fingers and pull straight up and out. Wash the foam filter in warm mild soapy water, rinse in clean fresh cold water and let completely dry.

  • Page 16: Pre Motor Filter

    12.1.2 Pre Motor Filter The pre-motor foam filter is located behind the dust canister in the housing. Remove the dust canister as explained previously. To Remove this filter, grasp with your fingers and pull straight out. Wash the foam filter in warm mild soapy water, rinse in clean fresh cold water and let completely dry.
  • Page 17 Unclip the cover by pushing down the top of the clip and pull forward to expose the filter. To remove the Filter, grasp with your fingers and pull straight out. Wash the Filter in warm mild soapy water, rinse in clean fresh cold water and let dry before refitting.

  • Page 18: Storage

    Refit the Filter (or replace with a new one) Refit the cover and clip shut. It is recommended to clean this filter every 3 months or sooner if required. 12.2 Cleaning the Vacuum Cleaner Body and Tools Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc.

  • Page 19: Troubleshooting

    14 Troubleshooting Clean the Filters and empty the Dust Canister Noisy operation Check for partial blockages and unblock. Clean the Filters and empty the Dust Canister. Check for blockages and unblock Suction Not Strong Check that the Suction Relief Valve on the hose handle is closed.

  • Page 20: Warranty Against Defect

    15 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You H.E. Group Pty Ltd (“us” “we” or “our”) are entitled to a replacement or refund for a warrants this good for a full replacement or major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
