Model No.: VC4501(A)-5
Item No.: 900656
240Va.c. 50Hz
2400W Max
Rev 3
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

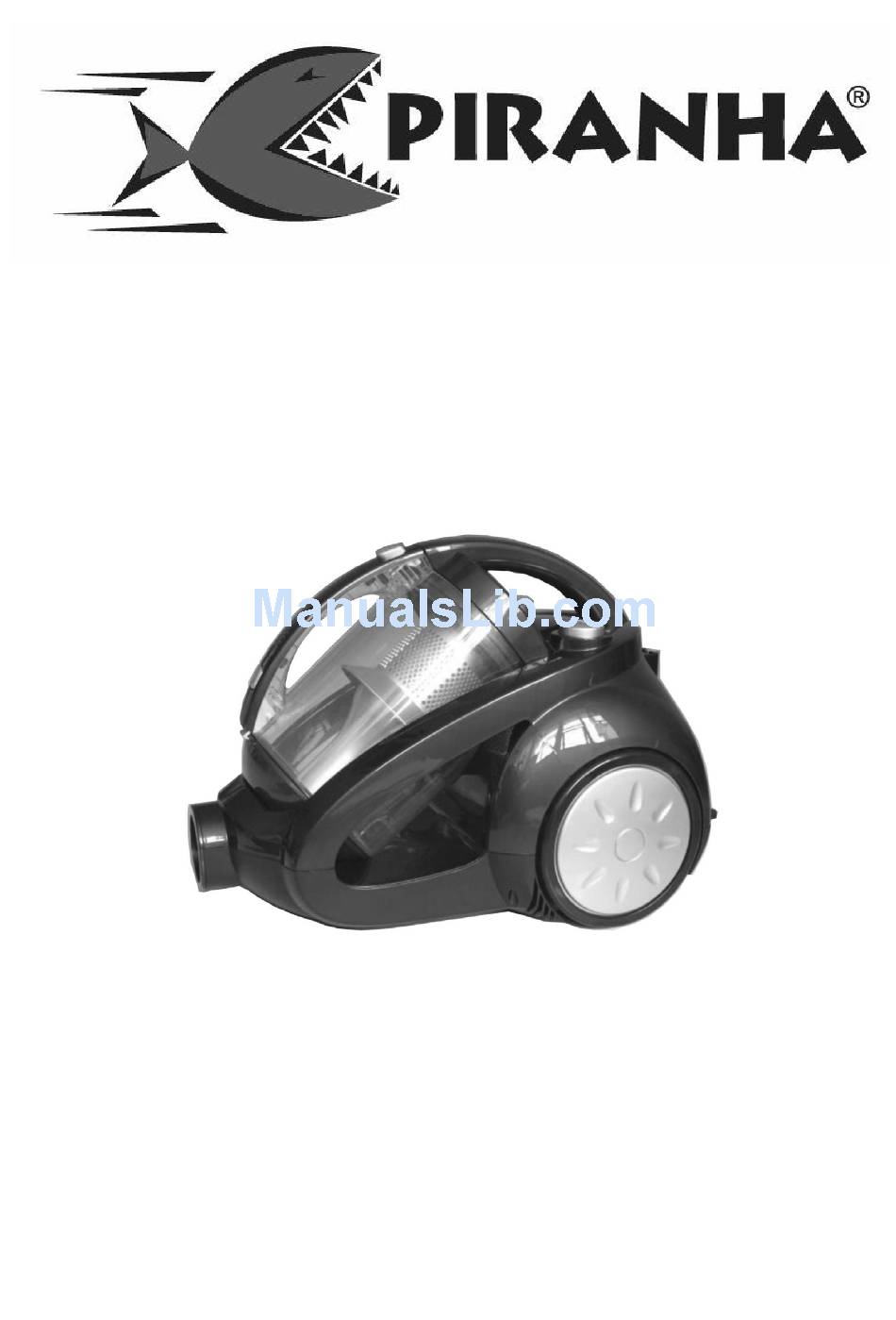

Piranha Phantom
Vacuum Cleaner
For Household Use Only
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Piranha Phantom VC4501(A)-5
Summary of Contents for Piranha Phantom VC4501(A)-5
-
Page 1: Vacuum Cleaner
Piranha Phantom Vacuum Cleaner For Household Use Only Model No.: VC4501(A)-5 Item No.: 900656 240Va.c. 50Hz 2400W Max Rev 3 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement. -
Page 2: Table Of Contents
Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 6 Specification ................6 Schematic Wiring Diagram ............. 6 Components ................7 Assembly Method ..............8 Fitting Flexible Hose ............. 8 Hose Removal ............... 8 Fitting Telescopic Tube and Accessories ......8 Tools .................. -
Page 3: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
- Page 5 DO keep hair, loose clothing, fingers, feet and body parts away from openings or moving parts. DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO turn off controls before you connect or disconnect the appliance to or from the mains supply.
-
Page 6: Transporting Your Vacuum
This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle. -
Page 7: Components
Components Dust Canister Release Button Crevice Tool Dust Canister Floor Head Hose Suction Strength Control Slide Hose Connector Handle Tool Holder Cord and Plug Hose Coupling Cord Rewind Button Telescopic Tube Exhaust Grille & Filter Upholstery Tool On/Off Switch Button / Variable Speed Controls Page 7 of 16... -
Page 8: Assembly Method
Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. Ensure all Filters are fitted, and fitted correctly before using. Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose (6) into the Hose Connector (4) and push inward until it locks into place. -
Page 9: Tools
Tools The Crevice tool is used for cleaning down the side of sofas and into corners, etc. The Upholstery tool is used for cleaning sofas and curtains, etc. Tool Holder There is a convenient tool holder on the telescopic tube where the Crevice tool and Upholstery tool can be stored when not in use. -
Page 10: Suction Relief Valve
Suction Relief Valve The Suction Relief Valve is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head. -
Page 11: Safety Devices Operation
12 Safety Devices Operation NOTE: The motor has an overheating protection device built in. It will automatically switch off power to the motor if it overheats. e.g. from blocked nozzles, full dust Canister or uncleaned blocked filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down. -
Page 12: User Maintenance
• To close the trap door, close it manually until it clips shut. • Brush the inside of the dust canister with a small brush or wash Refer to section “Cleaning Filters”. 14 User Maintenance WARNING: The plug must be removed from the power socket before any maintenance or replacement. -
Page 13: Pre Motor Foam Filter
14.1.1 Pre Motor Foam Filter Remove the Dust Canister as described prior. The Pre Motor Filter is located in the top section of the Vacuum cleaner where the Dust Canister was removed from. Remove this Filter by rotating it and pulling out of its recess. -
Page 14: Exhaust Air Filter
DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. Refit once dry (or replace with a new one). 14.1.3 Exhaust Air Filter The exhaust air filter cleans the air a final time before it leaves the vacuum cleaner. -
Page 15: Cleaning The Vacuum Cleaner And Components
14.2 Cleaning the Vacuum Cleaner and Components Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components and accessories. -
Page 16: Warranty Against Defect
16 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You H.E. Group Pty Ltd (“us” “we” or “our”) are entitled to a replacement or refund for a warrants this good for a full replacement or major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
