Piranha EV-500-S20 Owner's Manual

Item no.: 900238 rev 2
Hide thumbs
Table of Contents

Advertisement

Quick Links

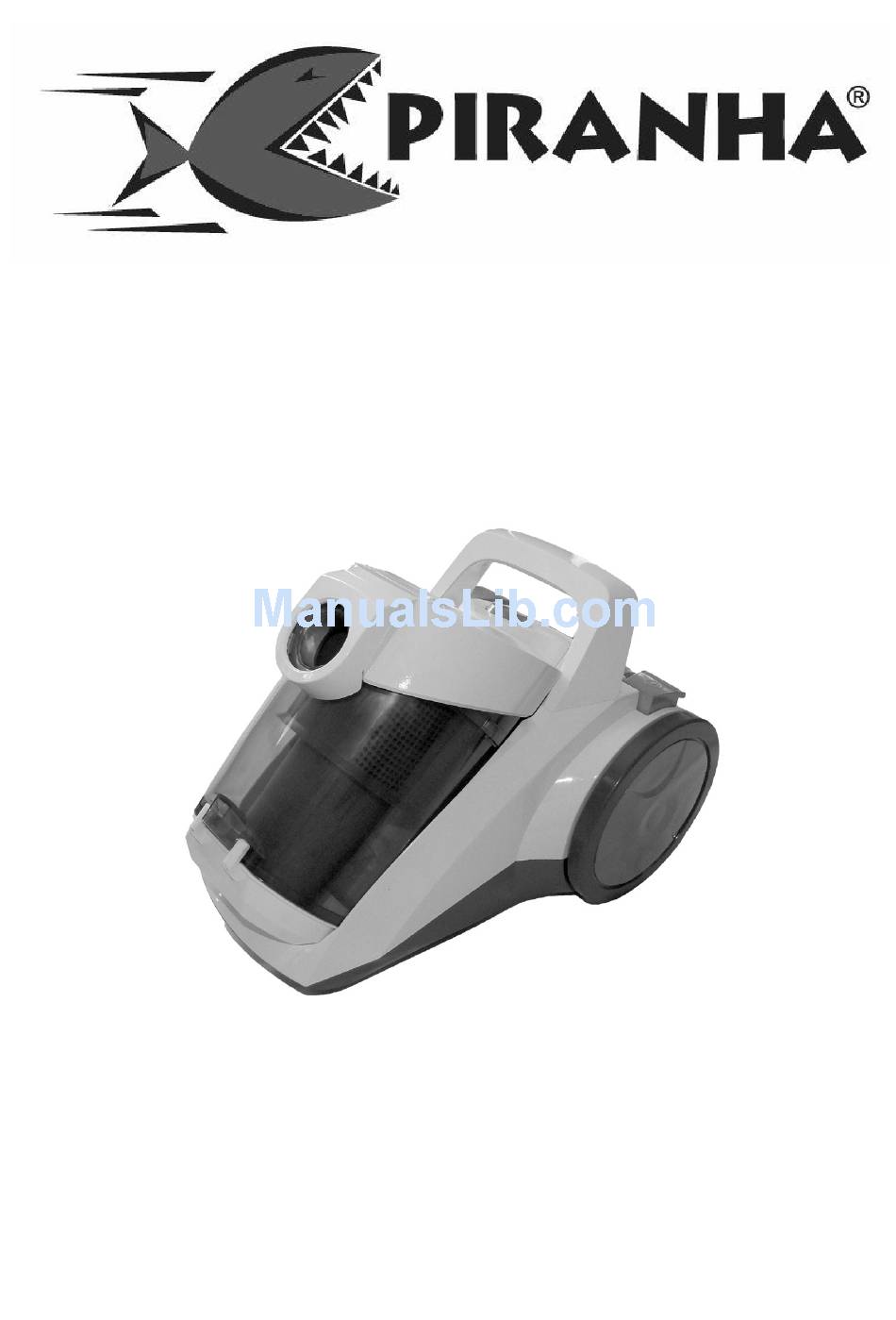

Model No.: EV-500-S20
Item No.: 900238
Rev 2
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
Piranha

Vacuum Cleaner

For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-500-S20 and is the answer not in the manual?

Questions and answers

Related Manuals for Piranha EV-500-S20

Summary of Contents for Piranha EV-500-S20

  • Page 1: Vacuum Cleaner

    Piranha Vacuum Cleaner For Household Use Only Model No.: EV-500-S20 Item No.: 900238 Rev 2 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 6 Components ................7 Assembly Method ..............8 Fitting Flexible Hose ..............8 Hose Removal ................8 Fitting Telescopic Tube and Accessories ........8 Tools ..................... 9 Power and Power Cord ............9 Suction Relief Slide ...............

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
  • Page 5 DO keep hair, loose clothing, fingers, feet and body parts away from openings or moving parts. DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO turn off controls before you connect or disconnect the appliance to or from the mains supply.

  • Page 6: Transporting Your Vacuum

    This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.

  • Page 7: Components

    Components Dust Canister Power On – Off Button Dust Canister Release Button Floor Head Carry Handle Telescopic Tube Cord Rewind Button Tools Rear Exhaust Grille Hose Note: The specifications and/or components of this appliance are subject to change without prior notice Page 7 of 18...

  • Page 8: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. Ensure all Filters are fitted, and fitted correctly before using. 5.1 Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Hose Connector hole and push inward until it locks into place.

  • Page 9: Tools

    5.4 Tools Crevice tool Upholstery Tool with Removable Brush • Crevice tool is for cleaning furniture and into corners. • Brush attachment can be used for general applications Power and Power Cord • Before using the appliance, pull to unwind the cord fully up to the yellow mark and insert the plug into the power supply.

  • Page 10: Suction Relief Slide

    Suction Relief Slide The Suction Relief Valve is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head.

  • Page 11: Safety Devices Operation

    Safety Devices Operation NOTE: The motor has an overheating protection device built in. It will automatically switch off power to the motor if it overheats. e.g. from blocked nozzles, full dust Canister or uncleaned blocked filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down.

  • Page 12: User Maintenance

    11 User Maintenance WARNING: The plug must be removed from the power socket before any maintenance or replacement. NOTE: To maximise the performance of your vacuum cleaner, you should clean your filters regularly. If the filters are broken or worn, replace them before continuing to use the vacuum.
  • Page 13 Remove the Lower plastic component by also unscrewing it from the lid. Remove the next Upper plastic component by also unscrewing it from the lid and to expose the filters. Remove the “White” filter by grasping the raised handle and pull straight up and out.

  • Page 14: Pre Motor Filter

    Note: Only clean the white filter if it is very dirty. Wash the filter in warm mild soapy water, rinse in clean fresh cold water and let completely dry. DO NOT scrub the filters or place in a dishwasher. DO NOT use a hair drier to dry the filters. NOTE: Never use the vacuum cleaner with wet or damp filters.

  • Page 15: Exhaust Air Filter

    11.1.3 Exhaust Air Filter The exhaust air filter cleans the air a final time before it leaves the vacuum cleaner. You can access and clean the exhaust air filter as follows: this is located at the rear of the vacuum cleaner inside the grille. Unclip the Grille by pressing down on the tab and remove to expose the filter.

  • Page 16: Cleaning The Vacuum Cleaner Body And Tools

    Refit the Filter (or replace with a new one) Refit the Rear Exhaust Air Grille and clip shut. It is recommended to clean this filter every 3 months or sooner if required. 11.2 Cleaning the Vacuum Cleaner Body and Tools Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc.

  • Page 17: Troubleshooting

    12 Troubleshooting Clean the Filters and empty the Dust Canister Noisy operation Check for partial blockages and unblock. Clean the Filters and empty the Dust Canister. Check for blockages and unblock Suction Not Strong Check that the Suction Relief Valve on the hose handle is closed.

  • Page 18: Warranty Against Defect

    13 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You H.E. Group Pty Ltd (“us” “we” or “our”) are entitled to a replacement or refund for a warrants this good for a full replacement or major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
