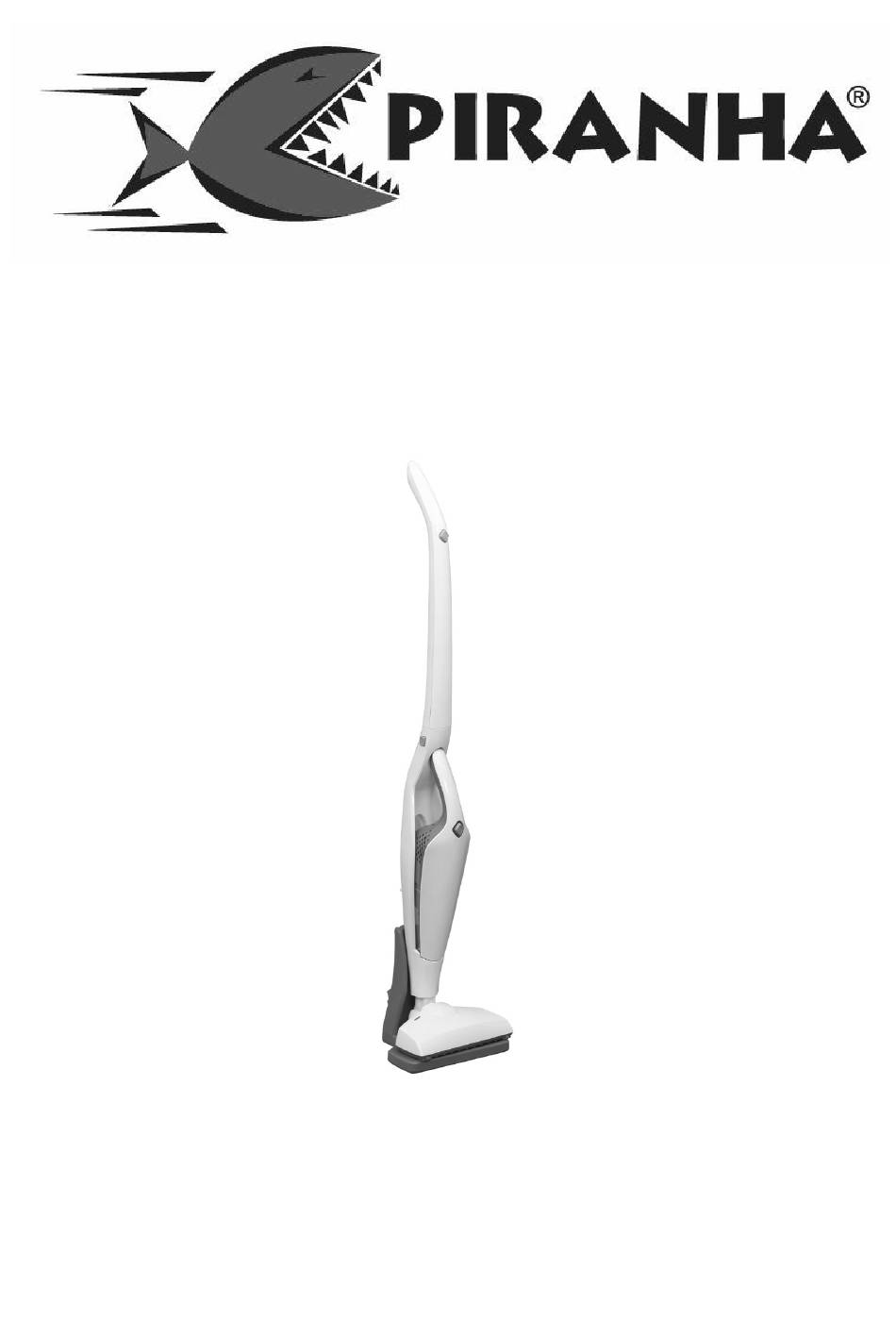

Rechargeable Hand - Stick Vac
Model No.: ZL9012-120
Item No.: 900381
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1800 079 124 for an immediate replacement. This will
save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
Piranha
For Household Use Only
Advertisement
Table of Contents
Related Manuals for Piranha ZL9012-120
Summary of Contents for Piranha ZL9012-120
- Page 1 Piranha Rechargeable Hand - Stick Vac For Household Use Only Model No.: ZL9012-120 Item No.: 900381 Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If any Accessories should fail during use, please call 1800 079 124 for an immediate replacement. This will save you from returning the product to the store.
-
Page 2: Table Of Contents
Warnings ................. 3 Safety Direction ..............3 Transporting your Vacuum ............ 5 Components................6 Assembly Method ..............7 Assembling the Charger Base / Stand ......... 7 Assembling the Stick Vac Body and Handle ....... 7 Assembling the Floor Head ............8 Fitting The Hand Vac to the Stick Vac Body ....... -
Page 3: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
-
Page 5: Transporting Your Vacuum
DO Keep all openings free of dust, lint. hair, and anything that may reduce airflow. DO use extra care when vacuuming on stairs. DO keep your work area well lit. DO store your appliance indoors in a cool. dry area. DO ensure children and babies cannot play with plastic bags or any packaging materials. -
Page 6: Components
Components Stick Vac Handle Hand Vac Stick Vac Body Brush Tool Charging Base / Stand Nozzle Tool Battery Charger Power adaptor Floor Head Note: The specifications and/or components of this appliance are subject to change without prior notice Page 6 of 17... -
Page 7: Assembly Method
Assembly Method Please Note: Always remove the Battery Charger from the power socket before assembly. A Small amount of assembly is required prior to using the appliance. The only tool you will need is a Philips Head screwdriver. Assembling the Charger Base / Stand •... -
Page 8: Assembling The Floor Head
• Line up the handle and the body as shown and push the two parts together • Fit the screw and tighten as shown. Assembling the Floor Head • Place the floor head on the floor as shown • Position the Stick Vac Body over the pins of the floor head and push down all the way. -
Page 9: Fitting The Hand Vac To The Stick Vac Body
• When the locking button snaps in place, the floor head is then attached. • To remove the floor head, press the locking button in and pull the floor head and Stick Vac Body apart. Fitting The Hand Vac to the Stick Vac Body •... -
Page 10: Tools And Tool Storage
Tools and Tool Storage Crevice tool • Crevice tool is for cleaning furniture and into corners. Brush Tool • Brush attachment can be used for general applications • To Fit the tools, line up with the end of the hand vac and push on. •... -
Page 11: Charging
Charging Note: Charge the Vacuum Cleaner for at least 15 hours prior to use. Only use the Power Adaptor which was supplied with this appliance. • With the power adaptor unplugged from the power point, plug the small pin plug into to side of the Charging Stand. •... -
Page 12: Using The Vacuum Cleaner
NOTE: NEVER BLOCK ANY VENTS OR OPENINGS. Using the Vacuum Cleaner • To use the Vacuum Cleaner as a “Stick Vac” assembly the unit as previously instructed and ensure the batteries are fully charged. • Place the Stick Vac on the floor and press the On / Off button to switch •... -
Page 13: User Maintenance
• Pull the internal components out from the Dust Canister • Empty the Dust Canister as frequently as possible or when the suction power is reduced. Note: At the same time, you can brush the inside of the dust canister with a small brush or wash Refer to section “Cleaning Filters”. -
Page 14: Cleaning Filters
Cleaning Filters Important Note – the Filters must be cleaned regularly for best suction performance and to prevent over-heating and damage to your vacuum cleaner. Cleaning is best done at the same time when emptying the dust Canister after you have finish vacuuming for the day. NOTE: Never use the vacuum cleaner with wet or damp filters or without ALL filters fitted. -
Page 15: Cleaning Dust Canister
Cleaning Dust Canister Remove the dust canister as described previously and remove the Mesh and White Filter. Wash the Dust canister in warm mild soapy water, rinse in clean fresh cold water and let completely dry. DO NOT place in a dishwasher. DO NOT use a hair drier to dry. -
Page 16: Troubleshooting
11 Troubleshooting Will Not Switch On Check that the Batteries are fully charged. Red Light around On / Off This is correct. It will stop flashing and stay Switch Flashes when permanently lit when fully charged. Charging Clean the Filters and empty the Dust Canister Noisy operation Check for partial blockages and unblock. -
Page 17: Warranty Against Defect
12 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You H.E. Group Pty Ltd (“us” “we” or “our”) are entitled to a replacement or refund for a warrants this good for a full replacement or major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
