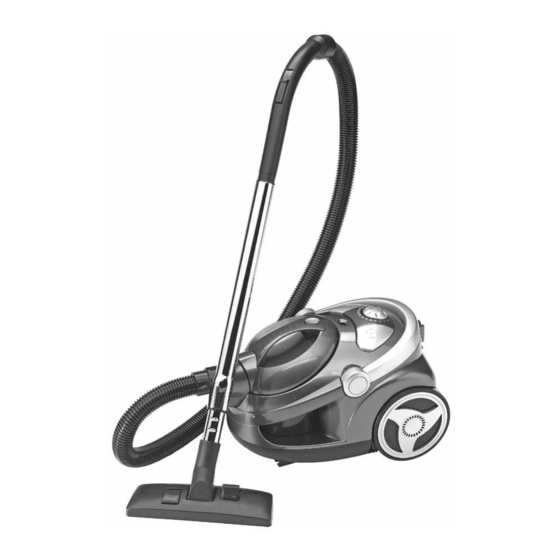

APACHE 2000W
BAGLESS VACUUM CLEANER
For Household Use Only
Model No.: JCV-5001(T)
Item No.: 900055
240Va.c. 50Hz
2000W Max
Note: Accessories may be subject to change without prior notice. Please refrain from returning the
unit to the store for faults involving accessories. If any accessories should fail during use, please call
1800 079 124 to arrange replacement. If we can assist you in any other way, please feel free to
contact us
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Piranha APACHE JCV-5001
Summary of Contents for Piranha APACHE JCV-5001

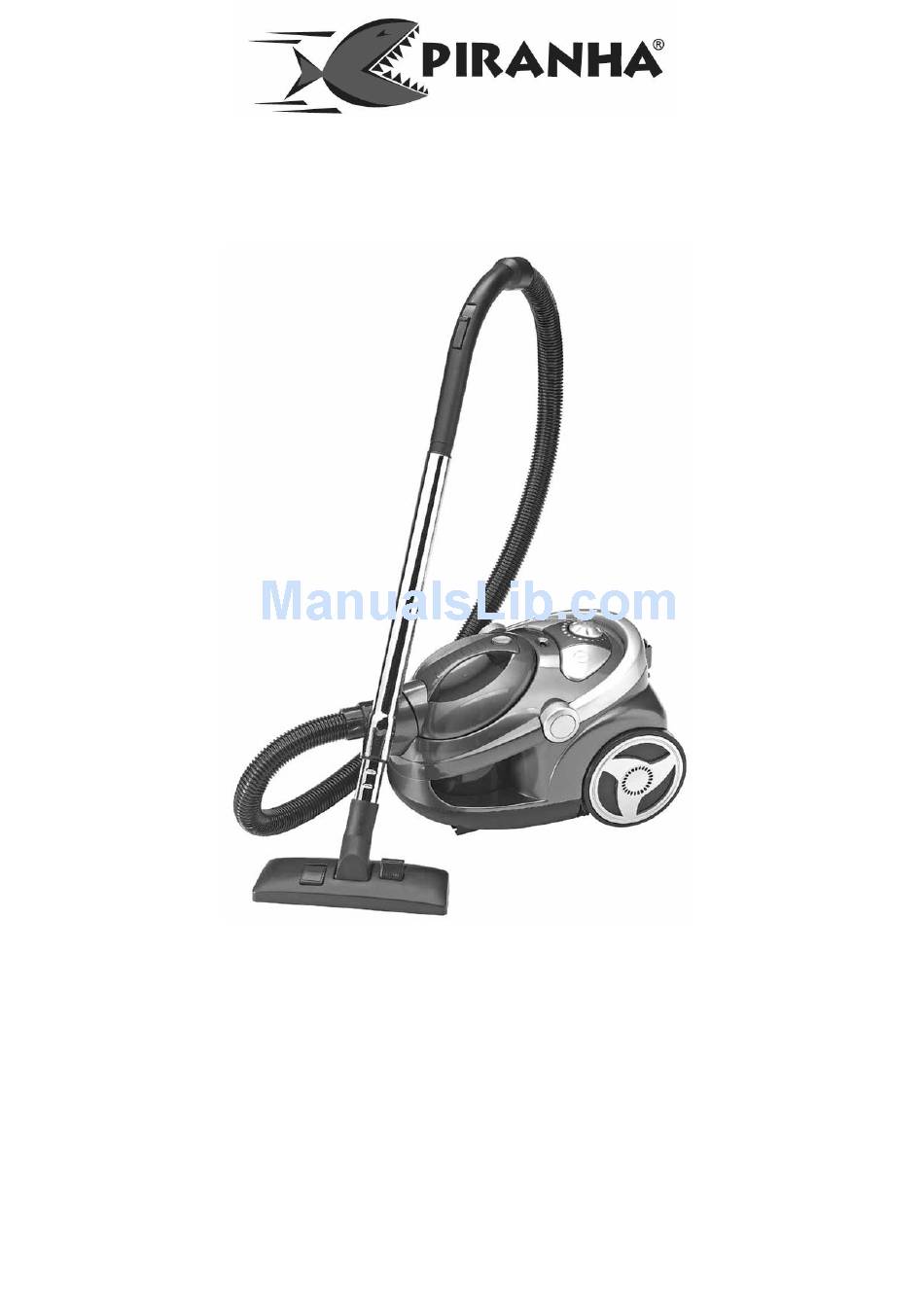

- Page 1 APACHE 2000W BAGLESS VACUUM CLEANER For Household Use Only Model No.: JCV-5001(T) Item No.: 900055 240Va.c. 50Hz 2000W Max Note: Accessories may be subject to change without prior notice. Please refrain from returning the unit to the store for faults involving accessories. If any accessories should fail during use, please call 1800 079 124 to arrange replacement.
-
Page 2: Table Of Contents
Warnings.................. 3 Safety Direction............... 3 Transporting your Vacuum ............ 5 Specification................5 Schematic Wiring Diagram............. 5 Components ................6 Assembly Method ..............7 7.1 Fitting Flexible Hose............7 7.2 Hose Removal ..............7 7.3 Fitting Telescopic Tube and Floor Head......7 Power and Power Cord............ -
Page 3: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors, or dropped into liquid (water etc). DO NOT close door on cord, or pull cord around sharp edges or corners. Cord Rewind - DO NOT allow the cord and plug to whip back at full speed. Guide the cord and plug in gently.
-
Page 5: Transporting Your Vacuum
No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling of appliance. This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry... -
Page 6: Components
Components Floor Head Button - Cord Rewind 1a Brush Change Lever On/Off Switch Button Suction Strength Controls Tube Locking Mechanism Knob Telescopic Tube Parking Holder Hose Cord and Plug Suction Relief Air Valve Exhaust Grille & Filter Handle Combination Nozzle Holder Hose Connector Dust Canister Window Combination Nozzle -... -
Page 7: Assembly Method
Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. ENSURE ALL FILTERS ARE FITTED CORRECTLY BEFORE USE Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Air inlet hole and push inward until it locks into place. -
Page 8: Suction Relief Valve
Suction Relief Valve The Suction Relief Valve is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head. -
Page 9: User Maintenance
• Take the dust container to a dustbin. • Hold the handle on the upper lid section of the dust container and twist anticlockwise. The downward - pointing arrow on the far left of the upper lid section lines up with the arrow on the lower transparent container. -
Page 10: Cleaning Filters
13.1 Cleaning Filters Cleaning is best done at the same time when emptying the dust Canister after you have finish vacuuming for the day. NOTE: Never use the vacuum cleaner with wet or damp filters or without ALL filters fitted. Using wet or damp filters will damage the filters, may cause serious damage to the vacuum cleaner and will void your warranty. -
Page 11: Main Hepa Filter
13.1.3 Main HEPA Filter Turn the filter clockwise then remove it from the upper lid section and tap it gently. (We recommend that you do this while holding the filter in a bag). Brush the filter with a small brush or wash in warm soapy water. -
Page 12: Troubleshooting
14 Troubleshooting Clean or replace the Filters and empty Noisy operation the Dust Canister Clean or replace the Filters and empty the Dust Canister. Check for blockages in floor head, hose and extension tubes and unblock Suction Not Strong Check that the Suction Relief Valve on the hose elbow is closed. -
Page 13: Guarantee
15 Guarantee WHAT’S COVERED H.E. Group Pty Ltd guarantees this appliance for a full replacement or refund for a period of twelve months from the date of purchase. This guarantee is valid with the presentation of the original proof of purchase receipt from the store from which you purchased the product in order to establish the purchase price and provide the correct value of the product paid for by you.
