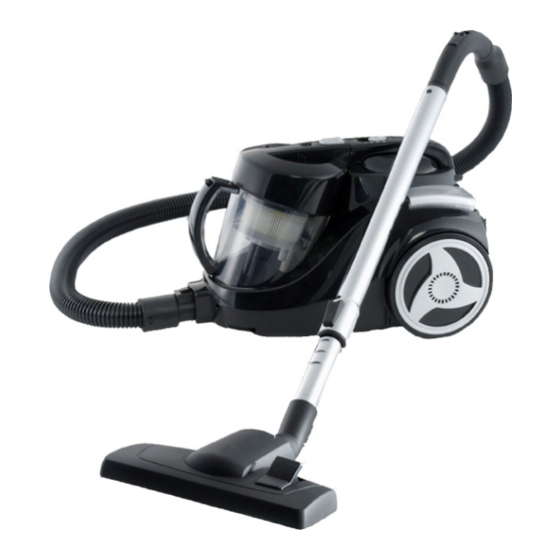

Galaxy 2000W
Bagless Vacuum Cleaner
For Household Use Only
Model No.: JCV-5002(T).4
Item No.: 900496
220 - 240Va.c. 50Hz
2000W Max
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Galaxy 2000W and is the answer not in the manual?

Questions and answers

Related Manuals for Piranha Galaxy 2000W

Summary of Contents for Piranha Galaxy 2000W

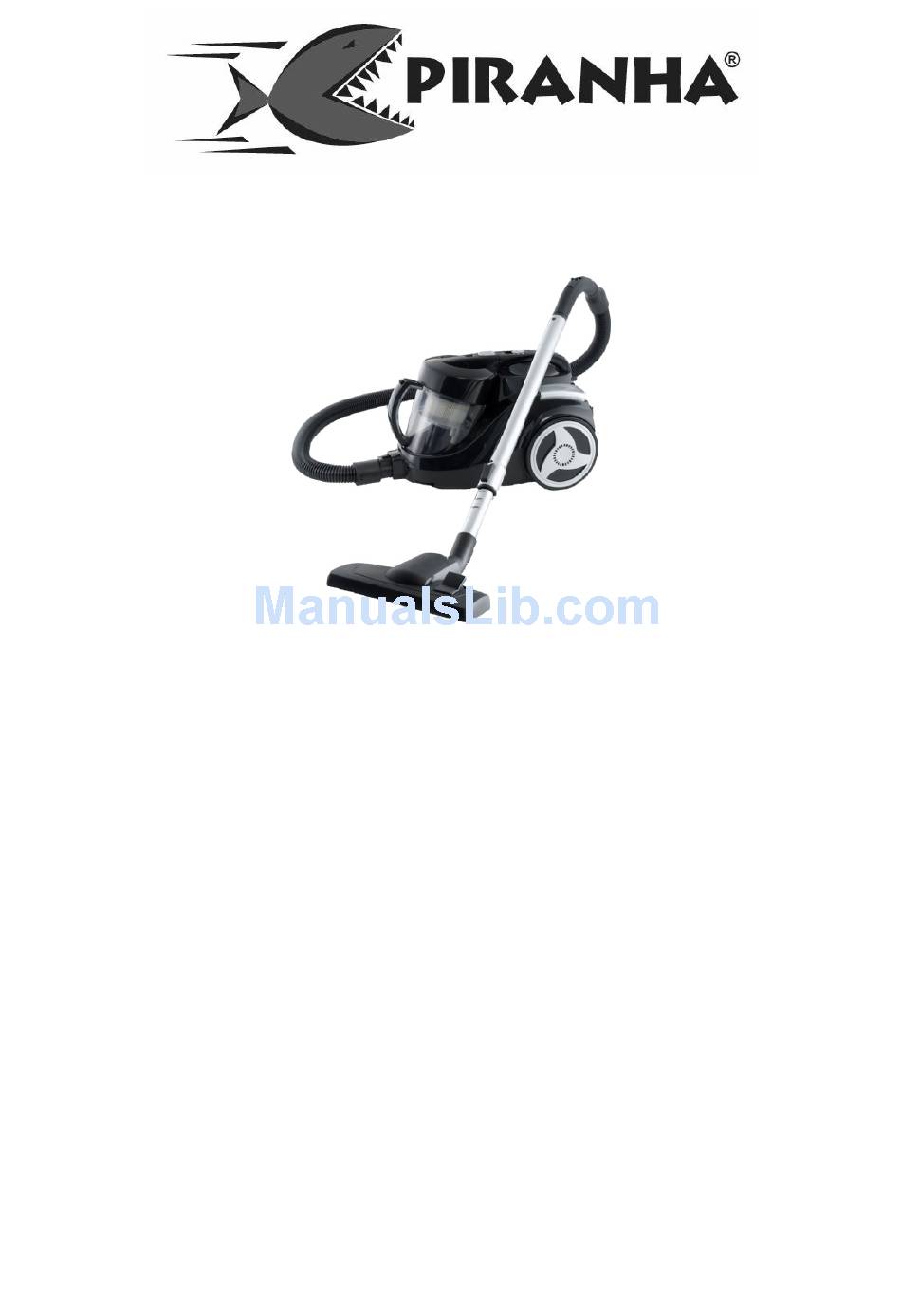

  • Page 1 Galaxy 2000W Bagless Vacuum Cleaner For Household Use Only Model No.: JCV-5002(T).4 Item No.: 900496 220 - 240Va.c. 50Hz 2000W Max Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings.................. 3     Safety Direction............... 3       Transporting your Vacuum ............ 6   Specification................6     Schematic Wiring Diagram............. 6     Components ................7     Assembly Method ..............8     7.1  Fitting Flexible Hose ..............8  7.2 ...

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. Return appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
  • Page 5 DO keep hair, loose clothing, fingers, feet and body parts away from openings or moving parts. DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO turn off controls before you connect or disconnect the appliance to or from the mains supply.

  • Page 6: Transporting Your Vacuum

    This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.

  • Page 7: Components

    Components Vacuum Pressure Relief Valve Opening Dust Canister Dust Canister Release Button Main Filter Suction Power Slide Controller Dust Canister Carry Handle Carry Handle Dust Canister Trap Door Release Lever Cord Retract Button Air Suction Regulator Control Slide Hose Assembly Holder – Park Position Hose Handle Exhaust Air Filter Grille –...

  • Page 8: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. Ensure all Filters are fitted, and fitted correctly before using. Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Hose Coupling / Air inlet hole and push inward until it locks into place.

  • Page 9: Tools

    7.5 Tools The Crevice tool is used for cleaning down the side of sofas and into corners, etc. The Crevice tool with brush is used for cleaning grilles and vents, etc. Power and Power Cord • Before using the appliance, unwind the cord fully up to the yellow mark and insert the plug into the power supply.
  • Page 10 • Increase power for cleaning the bare floor. Page 10 of 18...

  • Page 11: Auxiliary Air Regulator

    Auxiliary Air Regulator The auxiliary air regulator is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head.

  • Page 12: Safety Devices Operation

    11 Safety Devices Operation NOTE: The vacuum has an overheating protection device built into the motor. It will automatically switch off power to the motor if it overheats. e.g. from blocked nozzles, full dust Canister or uncleaned blocked filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 45 minutes which should be enough time for the motor to cool down.
  • Page 13 Close the trap door when emptied and refit to the vacuum cleaner ensuring the dust canister clips back in positively. Page 13 of 18...

  • Page 14: User Maintenance

    After emptying the Dust Canister, it is recommended to clean the filters if (Refer “User Maintenance” Section) The inside of the Dust Canister can also be wiped clean or washed at this time in warm soapy water and then dried thoroughly. (Refer “User Maintenance”...

  • Page 15: Pre Motor Foam Filter

    13.1.1 Pre Motor Foam Filter Remove the Dust Canister as described prior. The Pre Motor Filter is located in the back wall of the Vacuum cleaner where the Dust Canister was removed from. Remove this Foam Filter by pulling it out of its recess.

  • Page 16: Main Filter

    DO NOT use a hair drier to dry the filter. NOTE: Never use the vacuum cleaner with wet or damp filters. Using wet or damp filters will damage the filters, may cause serious damage to the vacuum cleaner and will void your warranty. Refit the Filter to the Rear Exhaust Air Grille (or replace with a new one) Close the Rear Exhaust Air Grille.

  • Page 17: Cleaning The Vacuum Cleaner And Components

    NOTE: Never use the vacuum cleaner with wet or damp filters. Using wet or damp filters will damage the filters, may cause serious damage to the vacuum cleaner and will void your warranty. Replace the cleaned Filter (or replace with a new one) then refit to the Dust Canister.

  • Page 18: Guarantee

    GUARANTEE WHAT’S COVERED? H.E. Group Pty Ltd guarantees this product for a full replacement or refund for a period of twelve months from the date of purchase. This guarantee is valid with the presentation of the original proof of purchase receipt from the store from which you purchased the product in order to establish the purchase price and provide the correct value of the product paid for by you.
