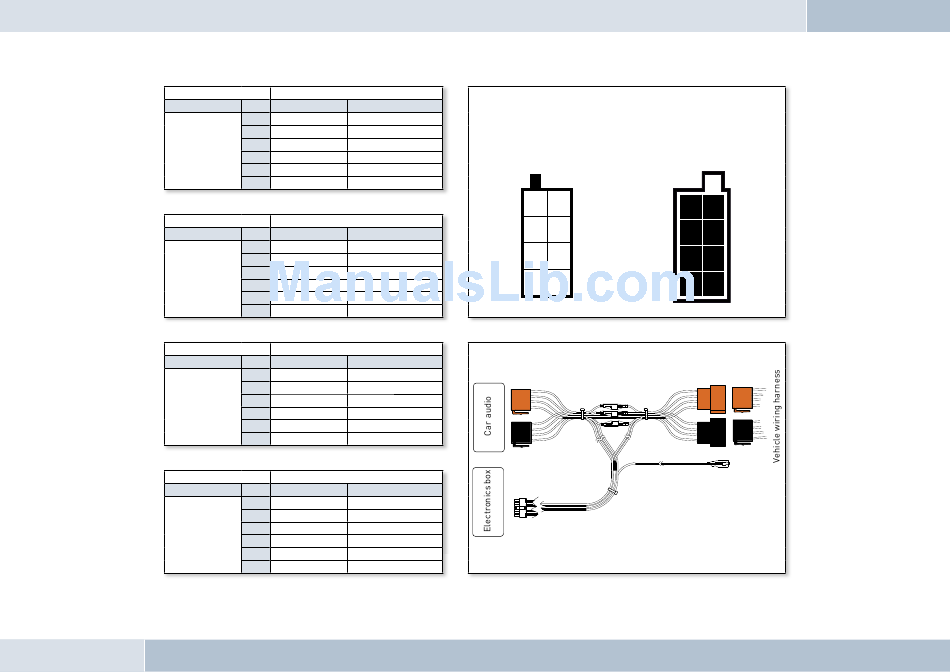

Fig. 10:
Setting the
Radio model
PIN according
to device type
Audi,
Volkswagen,
Grundig
Radio model
Ford,
Mercedes,
Porsche,
Becker
Radio model
Blaupunkt
Radio model
Philips
EGO LOOK
Socket contact housing
Pin
Wire colour
Function
1
2
Mute
3
4
blue
Ignition (15)
7
red
Permanent positive (30)
8
brown
Ground (31)
Socket contact housing
Pin
Wire colour
Function
1
2
3
Mute
4
red
Permanent positive (30)
7
blue
Ignition (15)
8
brown
Ground (31)
Socket contact housing
Pin
Wire colour
Function
1
2
Mute
3
4
red
Permanent positive (30)
7
blue
Ignition (15)
8
brown
Ground (31)
Socket contact housing
Pin
Wire colour
Function
1
Mute
2
3
4
red
Permanent positive (30)
7
blue
Ignition (15)
8
brown
Ground (31)
Wiring of power supply connectors
Socket wiring from
Plug wiring from
the rear (see table)
2 1
4 3
6 5
8 7
the rear
1 2
3 4
5 6
7 8
Fig. 11:
Connector assignments
Fig. 12:
Connection system
