6.4

Connection scheme

Installation for call reception for a car audio system with a mute input but without a phone input
With this connection option, voice playback is is emitted from the front right car speaker. During calls, the mute input
blocks the car audio signal.
q
NOTE: Please observe the information in section "6.5.1 Checking the mute inputs" on connecting the mute lead of the ISO
connecting cable.
Installation for voice playback with a car audio system with phone and
mute input options
With this connection option, voice playback comes through the car audio
system speakers. During calls, the car radio output is switched to the phone
input by the mute input In order to access the phone input of your car audio
system, the speaker output of your EGO LOOK must be connected to the
phone input of your car audio system. The purple and green leads of the ISO
cable must be connected to the car audio phone input for this option. The
purple and green leads must be disconnected from the ISO connector. The
green lead (pin 14 of the 14-pin plug) should be connected to „Phone Out",
and the purple lead (pin 7 of the 14-pin plug) to „Phone In +" of the Mini-ISO
socket.
For information on the phone connection options of your car audio system,
please consult the manufacturer's user manual.
q
NOTE: If your car audio system has different phone connection options from those mentioned here, please consult a
qualifi ed professional for installation of the system. Furthermore, please read the section with information on connecting
the mute lead of the ISO connection cable, "6.5.1 Checking the mute input".
EGO LOOK

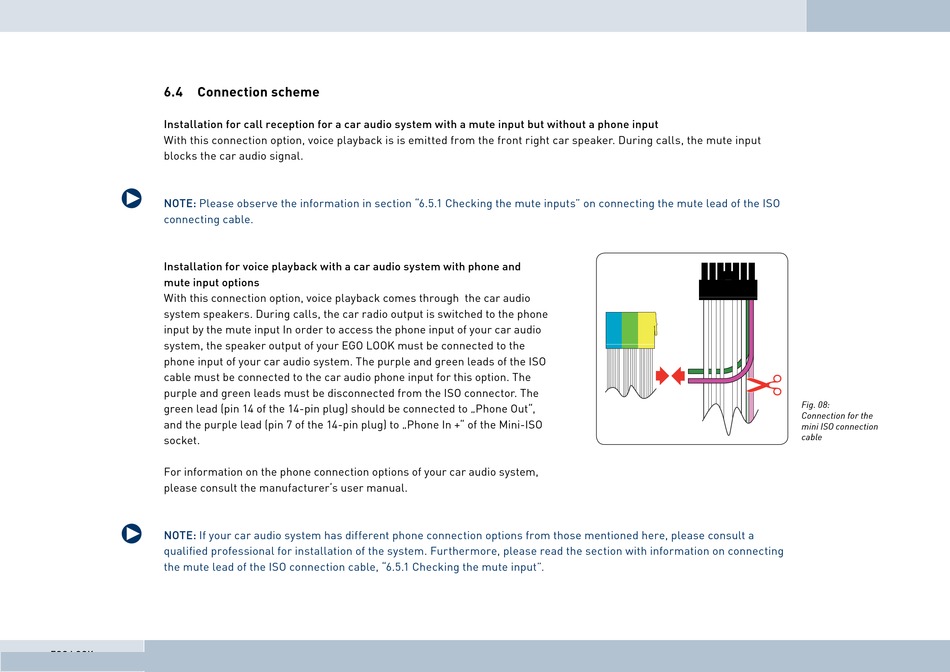

Fig. 08:
Connection for the
mini ISO connection
cable
