Master
2.0 kVA 230 Vac
B Phase Master
2.0 kVA 230 Vac
C Phase Master
2.0 kVA 230 Vac

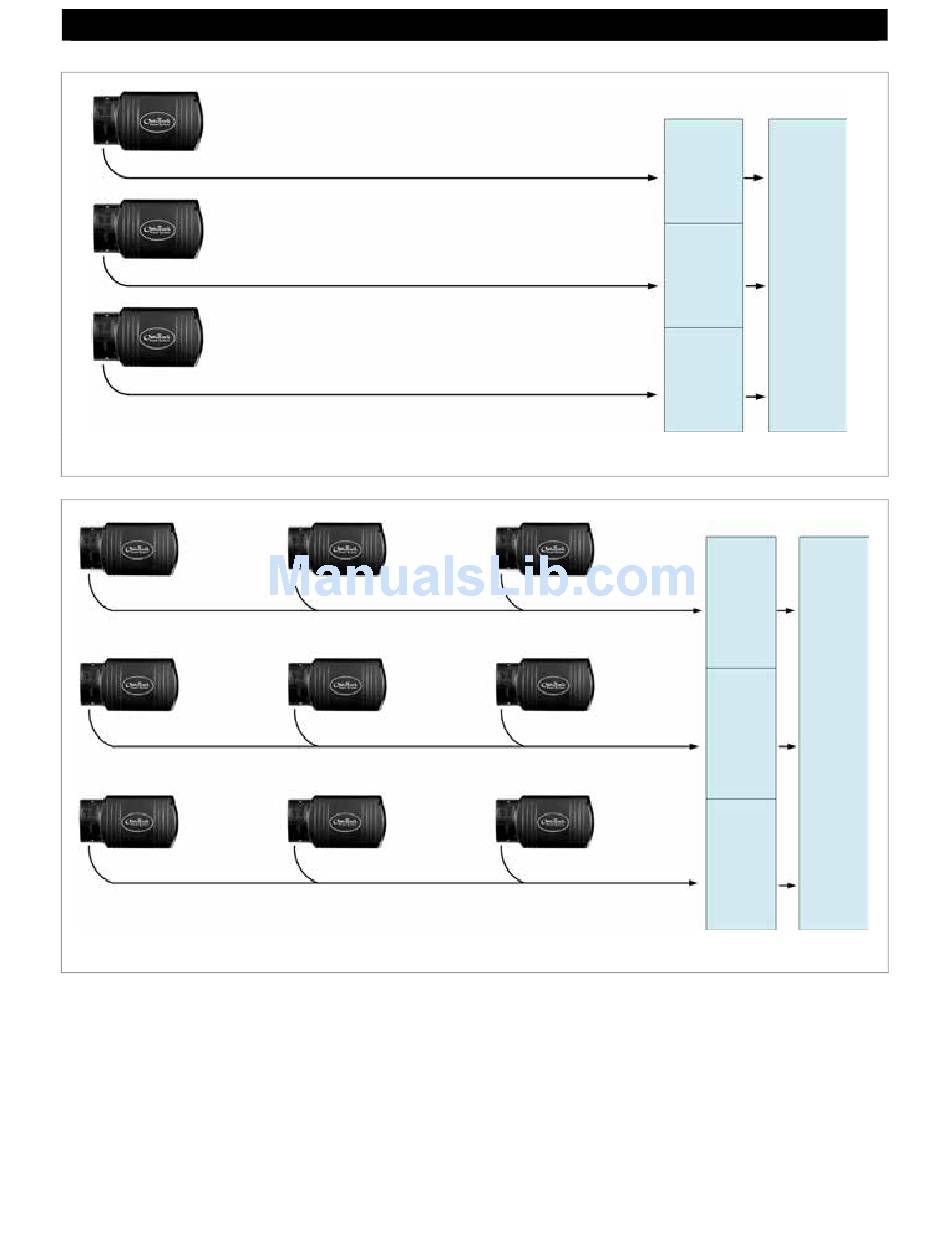

Figure 11
Example of Three-Phase Stacking Arrangement (Three Inverters)
Master
2.0 kVA 230 Vac
B Phase
Master
2.0 kVA 230 Vac
C Phase
Master
2.0 kVA 230 Vac
Figure 12
Example of Three-Phase Stacking Arrangement (Nine Inverters)
900-0169-01-00 Rev B
Slave
2.0 kVA 230 Vac
Slave
2.0 kVA 230 Vac
Slave
2.0 kVA 230 Vac
LOAD PANEL
2.0 kVA
230 Vac
2.0 kVA
230 Vac
2.0 kVA
230 Vac
Slave
2.0 kVA 230 Vac
Slave
2.0 kVA 230 Vac
Slave
2.0 kVA 230 Vac
Operation
6.0 kVA
OR
400 Vac
LOAD PANEL
6.0 kVA
230 Vac
18.0 kVA
6.0 kVA
OR
400 Vac
230 Vac
6.0 kVA
230 Vac
41
