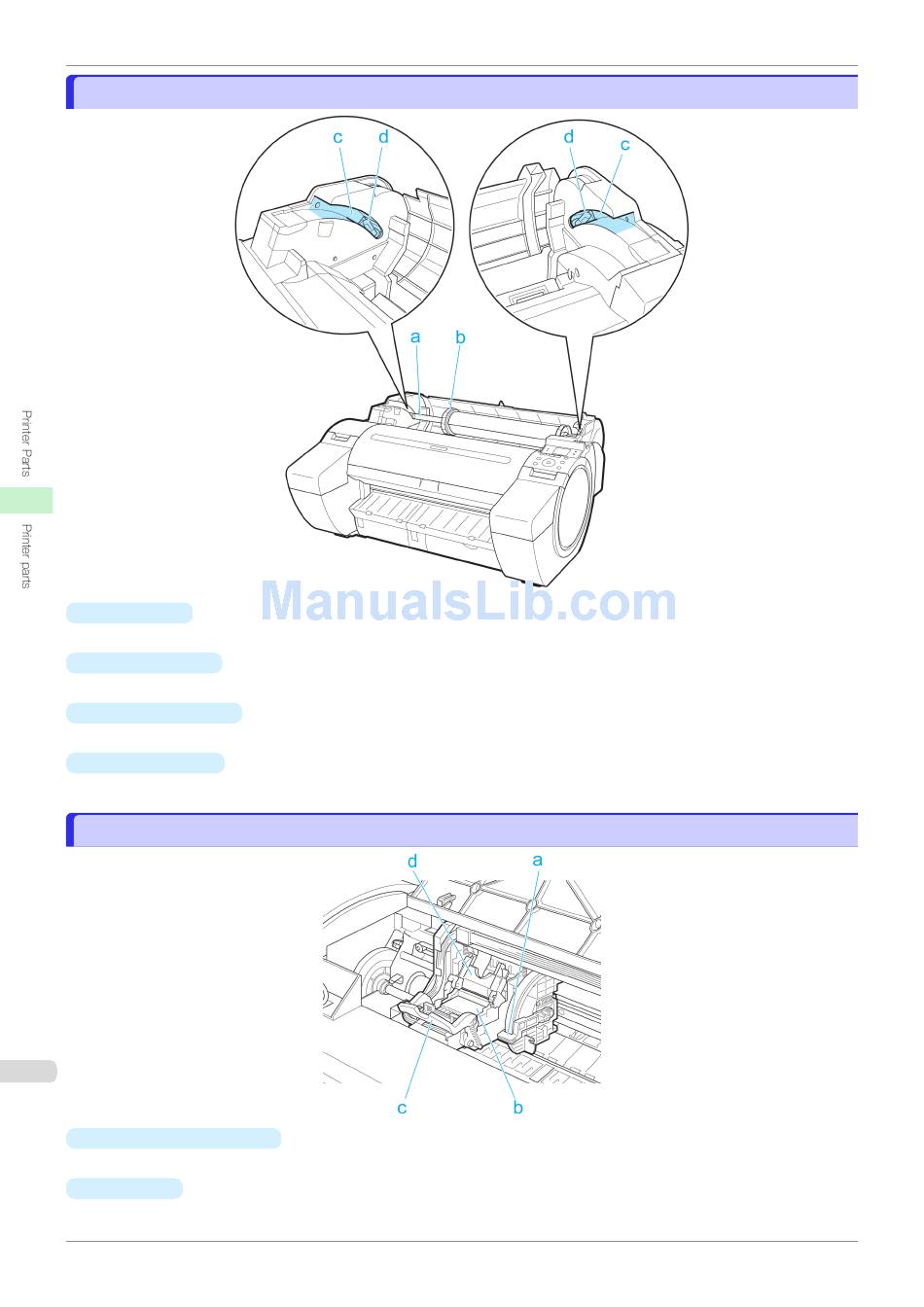

Roll Cover (Inside)

Roll Cover (Inside)

Roll Cover (Inside)
Roll Holder
a
Load the roll on this holder.
Holder Stopper
b
Secure rolls on the Roll Holder with this part.
Roll Loading Slots
c
Slide the Roll Holder along these slots.
d Roll Holder Slot
Load the Roll Holder into this holder slot.

Carriage

Carriage

436
a Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
Printhead
b
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
