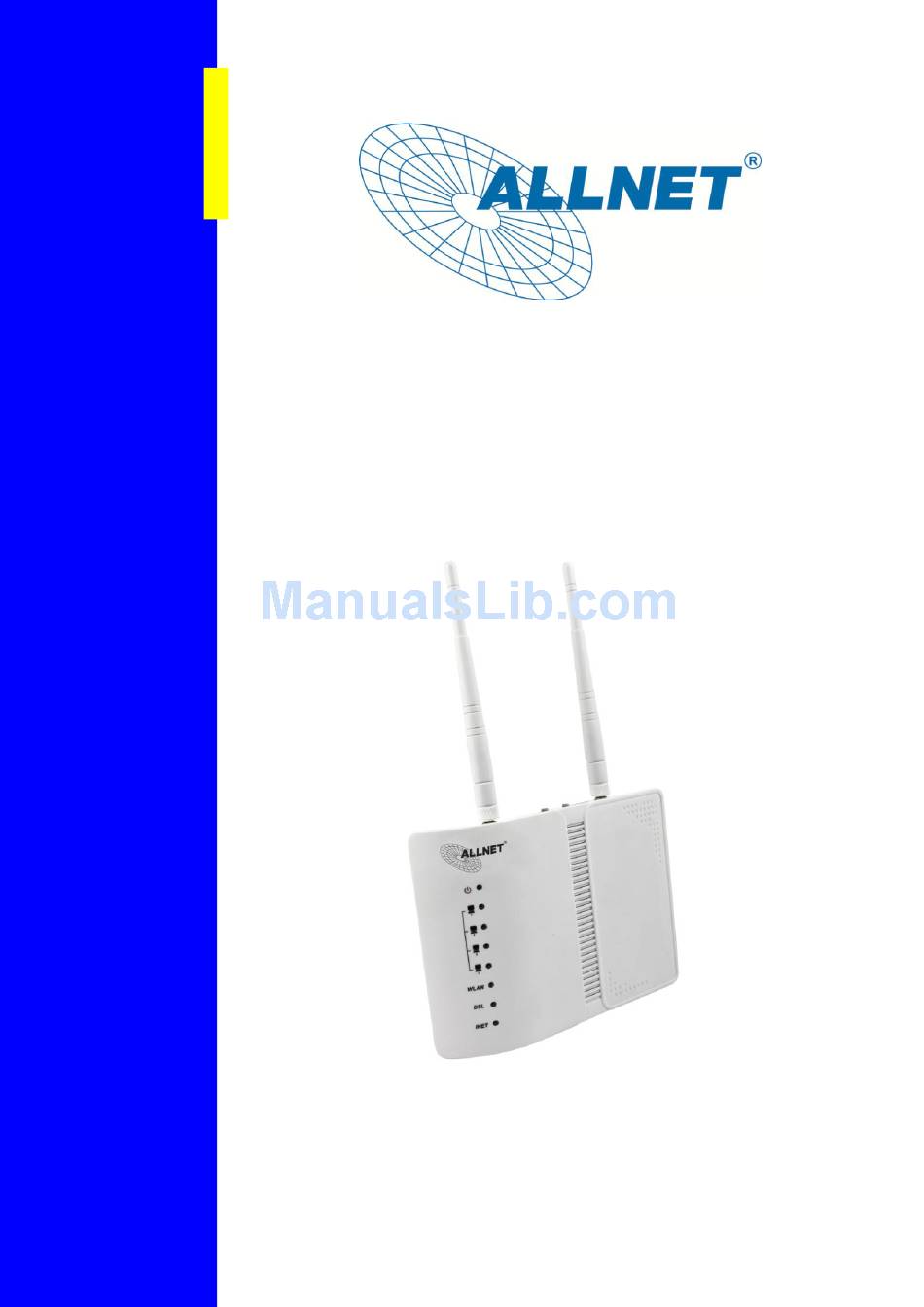

  • Page 1 ALL500VDSL2 WLAN N VDSL Router User´s Manual...
  • Page 2 All brand and product names are the trademarks of their respective owners. © Copyright 2011 ALLNET GmbH. All rights reserved.

  • Page 3: Table Of Contents

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Content OVERVIEW ..........................1 ......................... 1 EATURES ......................4 ACKET ONTENTS ....................4 YSTEM EQUIREMENTS ......................5 ACTORY EFAULTS ....................5 ARNINGS AND AUTIONS HARDWARE DESCRIPTION ....................6 HARDWARE INSTALLATION ....................7 PC CONFIGURATION GUIDE ....................8 95, 98, ME, XP ..........

  • Page 4: Overview

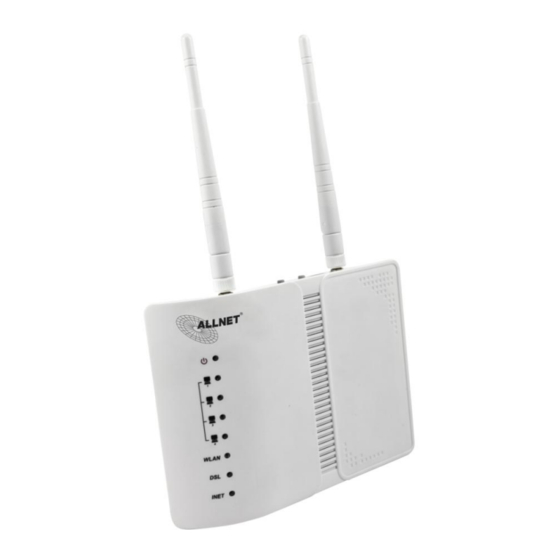

    Allnet GmbH Overview Thank you for choosing our product. The ALL500VDSL2 is a Wireless VDSL router combining a VDSL modem, an 802.11n wireless router, a 4-port switch in one unit, bringing high-speed wireless Internet connection to a home or office.
  • Page 5 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 1.1.4 Network Protocol & Features  Ethernet to ADSL Self-Learning Transparent Bridging  Internet Control Message Protocol (ICMP)  IP Static Routing  Routing Information Protocol (RIP, RIPv2)  Network Address Translation (NAT) ...
  • Page 6 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 1.1.6 FIREWALL  Built-in NAT  MAC Filtering  Packet Filtering  Stateful Packet Inspection (SPI)  Denial of Service Prevention (DoS)  1.1.7 Management Support  Web Based GUI  Upgrade or update via FTP/HTTP ...

  • Page 7: Packet Contents

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 1.1.9 Environmental  Operating humidity: 10%-90% non-condensing  Non-operating storage humidity: 5%-95% non-condensing Packet Contents The packet contents are as the following:  ADSL ROUTER  External Splitter  Power Adapter  Telephone Line ...

  • Page 8: Factory Defaults

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Factory Defaults The device is configured with the following factory defaults:  IP Address: 192.168.1.1  Subnet Mask: 255.255.255.0  User: admin  Password: admin  SSID: WLAN  Encapsulation: RFC 2516 LLC ...

  • Page 9: Hardware Description

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 2 Hardware Description Front Panel Color Function On: Power Green Off: No power On: LAN link established and active via LAN port LAN1,2,3,4 Green Blinking: DSL data activity occurs Off: No LAN link via LAN port...

  • Page 10: Hardware Installation

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Port Function Connect the device to an DSL telephone jack or splitter using a RJ-11 telephone cable Connect the device to your PC's Ethernet port, LAN1,2,3,4 or to the uplink port on your hub/switch, using a...

  • Page 11: Pc Configuration Guide

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 3. Connect the power cable to the PWR connector on ROUTER, then plug in the power adapter to the power outlet, and then press the on-off button. Notes: Without the splitter and certain situation, transient noise from telephone can interfere with the operation of the Router, and the Router may introduce noise to the telephone line.

  • Page 12: Local Pc Configuration In Windows 2000

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Local PC Configuration in Windows 2000 In the Windows task bar, click the ―Start‖ button, point to ―Settings‖, and then click ―Control Panel‖. Double-click the ―Network and Dial-up Connections‖ icon. In the ―Network and Dial-up Connections‖ window, right-click the ―Local Area Connection‖...

  • Page 13: Internet Access Configuration

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 5.2 Internet Access Configuration 5.2.1 ADSL Setup From home page, you can find Advanced Setup option on the left router configuration page. 1. From Layer2 Interface, click ATM Interface. you can set it up according to the following steps.
  • Page 14 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 3. Click WAN Service from the left menu. 4. Click Add to select a layer 2 interface for this service and then click Next. 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next.
  • Page 15 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 16 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes.
  • Page 17 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH  The ADSL gateway bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the gateway's LAN IP address. 7. Select a preferred wan interface as the system default gateway.
  • Page 18 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 1. From Layer2 Interface, click PTM Interface. you can set it up according to the following steps. You Choose Add, or Remove to configure DSL PTM interfaces. 2.Click Add to configure PTM Priority, select DSL latency and select connection mode according to your local occasion.
  • Page 19 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 6. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.
  • Page 20 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 21 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH one system on the LAN can be connected to the remote, since the DHCP server within the ADSL gateway has only a single IP address to assign to a LAN device.  NAPT and firewall are disabled when this option is selected.
  • Page 22 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 5.2.3 Router Mode Setup 1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface. 2. Click Add and you’ll see the following screen.
  • Page 23 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Select an ETH port as you will. You can select ENET1, ENET2, ENET3 or ENET4 port as the WAN interface and Default mode as connection mode. 4. Click Apply/Save and you’ll see the following screen.
  • Page 24 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 6. Click Add and you’ll see the following screen. 7. Click Next and you’ll see the following screen. Select PPPoE as WAN service type for example. Click Next.
  • Page 25 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 8. Enter the user name and password that your ISP has provided to you. Click Next. PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter.
  • Page 26 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Enable Full Cone NAT: In full cone NAT, all requests from the same private IP address and port are mapped to the same public source IP address and port. Someone on the Internet only needs to know the mapping scheme in order to send packets to a device behind the VDSL Device.
  • Page 27 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH  The gateway extends the IP subnet at the remote service provider to the LAN computer. That is, the PC becomes a host belonging to the same IP subnet.  The ADSL gateway bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the gateway's LAN IP address.
  • Page 28 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 5.2.4 LAN Settings From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control the assignment of IP addresses on your local network (LAN only).
  • Page 29 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 255.255.255.0. IGMP Snooping is a method that actually ―snoops‖ or inspects IGMP traffic on a switch. When enabled, the switch will watch for Enable IGMP IGMP messages passed between a host and a router, and will...

  • Page 30: Wireless Setting

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH 5.3 Wireless setting 5.3.1 Basic Option Description Enable A checkbox that enables or disables the wireless LAN interfaces. The default wireless is to enable wireless communications. Select Hide Access Point to protect the ADSL route access point from detection by wireless active scans.
  • Page 31 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Enter a name for user’s wireless network here. SSID stands for Service Set Identifier. This name must be between 1 and 32 characters long. The default Network name is WLAN. name (SSID) All wireless clients must either detect the gateway or be configured with the correct SSID to access the Internet.
  • Page 32 Allnet GmbH 3.Click Config AP and set WSC AP mode as configured and click Save/Apply. 4. Your SSID and WPA pre-shared key will be generated by ALL500VDSL2 as follows. 5.Now you can use a wireless adaptor with WPS function and the ALL500VDSL2’s WPS button to connect ALL500VDSL2 to access Internet.
  • Page 33 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH There are several security methods to choose from, depending on user’s needs and the capabilities of user’s wireless machines. WEP open and WEP shared —WEP is an encryption scheme that is used ...
  • Page 34 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH WPA (PSK) — This is WPA encryption combined with a pre-shared key  (PSK), which is a text string known only to the gateway and authorised wireless clients. The gateway rejects the login if the client's PSK does not match.

  • Page 35: Appendix: Frequent Asked Questions

    ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Appendix: Frequent Asked Questions Q: None of the LEDs are on when you power on the ADSL router? A: Please make sure what you use is the power adaptor attached with the ADSL router package and checks the connection between the AC power and ADSL router.
  • Page 36 ALL500VDSL2 WLAN N VDSL Router Allnet GmbH Q: PC cannot browse Internet web page? A: Please make sure DNS server appointed to the PC is correct. You can use ping application program to test whether the PC can connect to the DNS server of the ADSL operator.
  • Page 37 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The Allnet ALL500VDSL2 conforms to the Council Directives of 1999/5/EC. This equipment meets the following conformance standards: EN50371...
